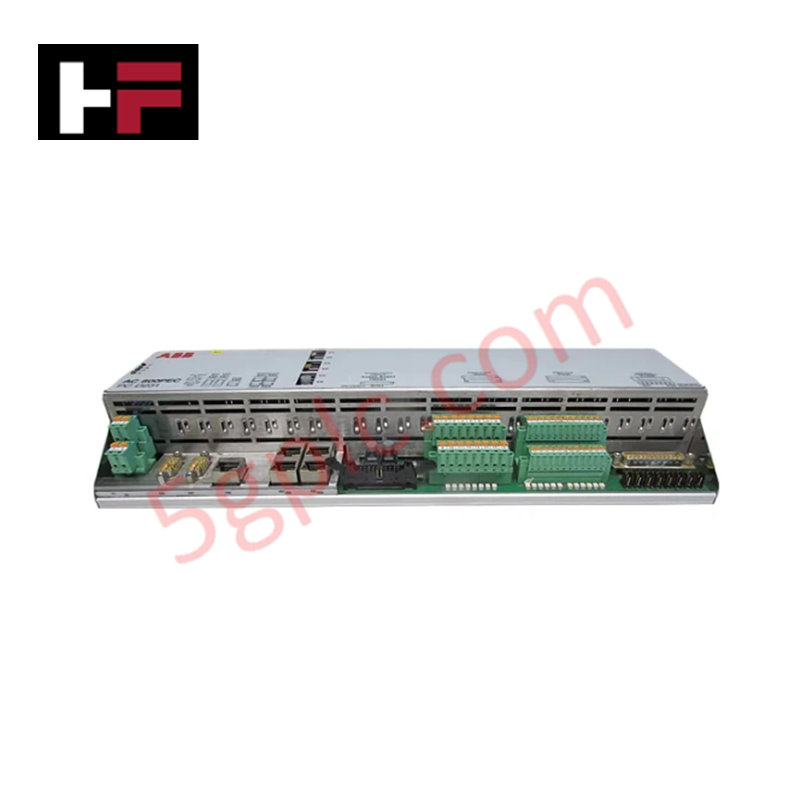

GF D563 A101 3BHE046836R0101 | ABB | Excitation Device Control Unit

Configured for precise generator excitation regulation in industrial control networks, the ABB GF D563 A101 (3BHE046836R0101 Excitation Device Control Unit) provides direct physical signal processing and power output execution.

Hardware Specifications

Backplane bus communication velocity and firmware compatibility

The GF D563 A101 utilizes internal bus architecture to maintain deterministic backplane bus communication velocity, ensuring real-time monitoring of generator electrical parameters. The module's internal firmware flash compatibility is fixed to specific control platform versions; engineers must verify that the excitation unit revision aligns with the host controller project file to ensure correct register mapping and protective trip logic. The device manages I/O density scaling by integrating high-speed A/D converters for voltage, current, and power factor telemetry, enabling instantaneous fault detection and reactive power regulation.

Frequently Asked Questions

Q: Can this unit be hot-swapped during active generator operation?

A: No. Hot-swapping is prohibited. The unit must be fully isolated from excitation power sources and control power before any maintenance or removal.

Q: How does the unit respond to a ground fault condition?

A: Upon detection of a ground fault, the internal logic triggers a protective trip function. The status is reported through the communication interface to the supervisory system for diagnostic logging and operator acknowledgment.

Field Installation Guidelines

• Mounting: Ensure the unit is mounted in a well-ventilated control cabinet. Maintain specified clearance to allow for thermal dissipation of internal power electronics during full-load 10 A output.
• Input Wiring: Verify that the AC input (220 V AC or 440 V AC) matches the configured primary supply. Use appropriate cable cross-sections to handle the excitation current requirements without excessive voltage drop.
• Grounding: Establish a robust connection between the unit chassis and the facility's protective earth (PE) bus. A low-impedance ground path is required to stabilize the excitation reference and protect against surge transients.
• Signal Shielding: Use shielded, twisted-pair cabling for all remote monitoring and communication links. Terminate shields at the controller cabinet entrance to prevent electromagnetic interference (EMI) from inducing errors in the excitation voltage feedback loop.
• Verification: Prior to commissioning, perform a full loop check of all current and voltage transformer inputs to ensure correct phasing and polarity, which are critical for the accuracy of power factor calculations.
