Product Details
Overview

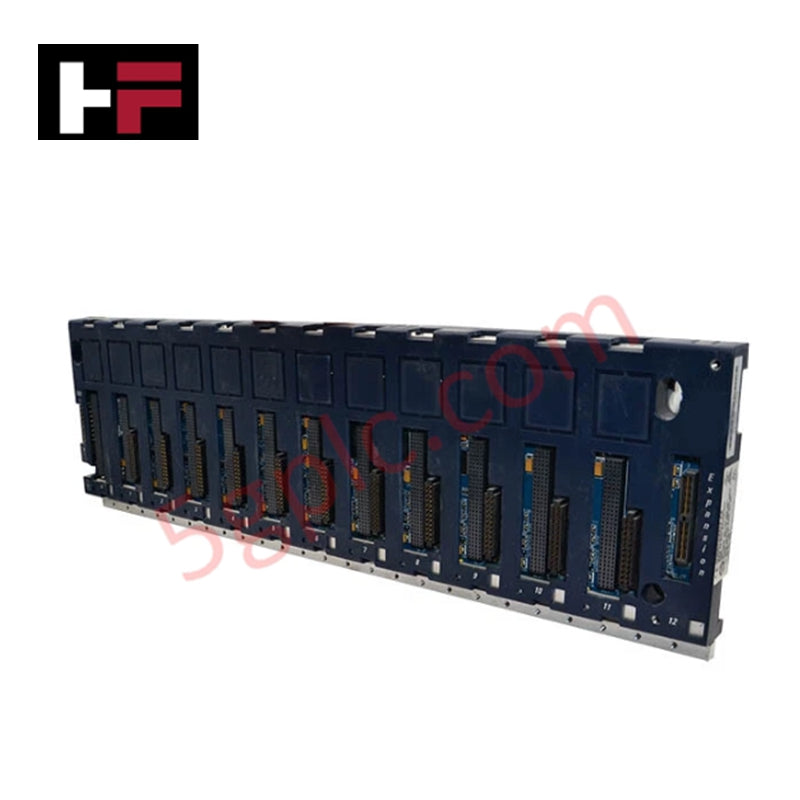

The GE Fanuc IC695CHS012 is a 12-slot high-speed backplane designed for PACSystems RX3i. It functions as a universal controller and I/O base, providing support for both PCI and high-speed serial communication. The module is hot-swappable and compatible with both controller and Ethernet expansion bases, ensuring flexible and scalable automation system design.
Technical Specifications
-
Model: IC695CHS012
-
Manufacturer: GE Fanuc
-
Product Type: PACSystems RX3i 12-Slot Backplane Controller Base
-
Module Type: Universal Controller and I/O Base
-
Hot Swap Support: Yes
-
Backplane Support: PCI and High-Speed Serial Bus
-
Baseplate Options: Controller Base or Ethernet Expansion Base
-
Number of Slots: 12
-
Internal Power Consumption: 600 mA @ 3.3 VDC, 240 mA @ 5 VDC
-
Dimensions (WxHxD): 457.5 x 141.5 x 147.32 mm (approx. 46 x 14 x 2 cm)
-
Weight: 1.58 kg
Application Scenarios
The IC695CHS012 backplane is suitable for:
-
High-speed modular control systems using PACSystems RX3i
-
Configurations requiring simultaneous PCI and serial communication support
-
Hot-swappable control systems to minimize downtime during maintenance
Comparison with Similar Modules
-
IC695CHS012: 12-slot backplane, supports PCI & high-speed serial, hot-swappable
-
IC695CHS010: 10-slot version, similar functionality with fewer slots
-
IC695CHS016: 16-slot backplane for larger-scale RX3i configurations
FAQs
Q: Can the IC695CHS012 backplane support Ethernet expansion modules?
A: Yes, it supports both controller base and Ethernet expansion modules.
Q: Is hot-swap functionality supported?
A: Yes, modules can be replaced without shutting down the system.
Q: Which communication buses are supported?
A: The backplane supports PCI and high-speed serial communication.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
