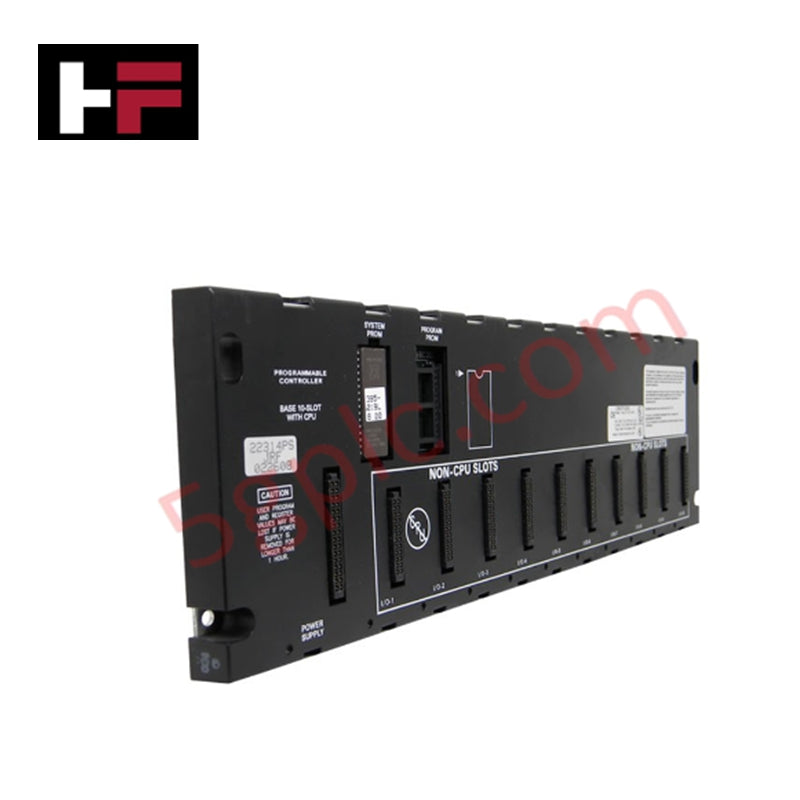

GE Fanuc IC693CPU323 Series 90-30 10-Slot Turbo CPU Module

Overview

The IC693CPU323 is a high-performance 10-slot Turbo CPU module designed for Series 90-30 PLC systems, delivering fast program execution, extensive I/O handling, and reliable communication across multiple modules in demanding industrial environments.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Model / Part Number: IC693CPU323

• Product Type: Turbo CPU Module

• Series: Series 90-30

• CPU Type: Single-slot Turbo CPU

• Power Supply: +5 VDC, approximately 890 mA

• User Program Memory: 240 KB RAM, 256 KB total memory

• Operating Temperature: 0–60°C (32–140°F)

• Storage Temperature: -40–85°C (-40–185°F)

• I/O Capacity: Supports up to 10 expansion slots for input/output modules

• Internal Coils (%M): 4,096 bits

• Temporary Output Coils (%T): 256 bits

• System Status References (%S): 128 bits

• Register Memory: Configurable 128–16,384 words

• Analog Inputs (%AI): Configurable 128–16,384 words

• Analog Outputs (%AQ): Configurable 128–16,384 words

• Timers / Counters: Over 2,000

• Scan Rate: 0.22 ms per 1K Boolean logic

• Communication Ports: RS-232C, RS-485, Ethernet-ready

Applications

• Core CPU for medium-to-large Series 90-30 PLC installations

• Fast logic processing for high-speed automation

• Supports multiple expansion baseplates and remote I/O modules for complex system integration

FAQ

Q: How many I/O expansion slots can the IC693CPU323 support?
A: It accommodates up to 10 slots, allowing extensive module expansion for input and output control.

Q: What is the processor and scan performance?
A: Equipped with a 25 MHz 80386EX processor, it provides 0.22 ms per 1K Boolean logic for fast program execution.
