Product Details
Product Description

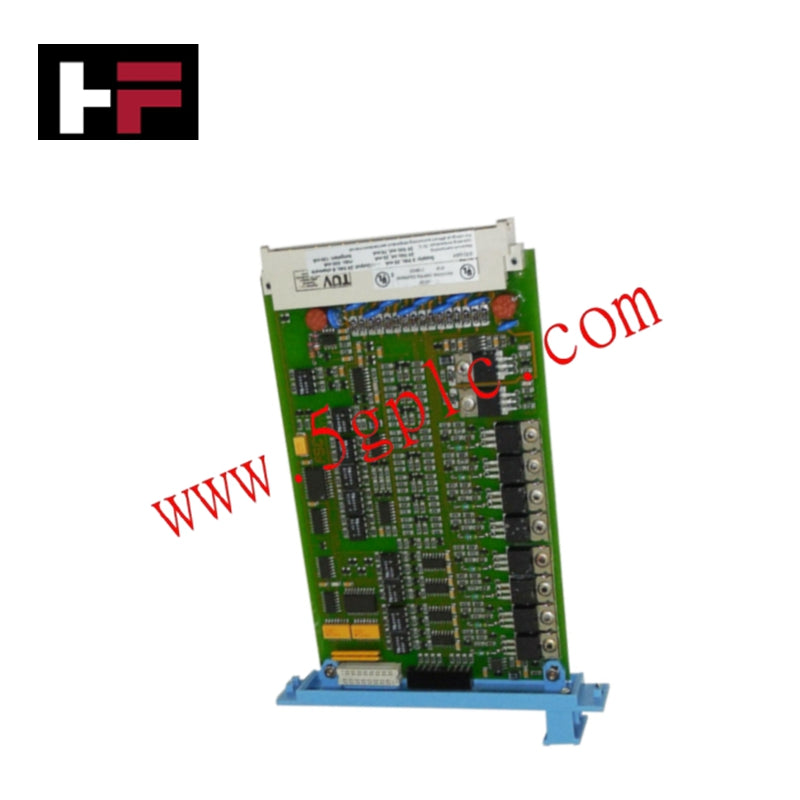

The Honeywell FC-SDO-0824 Safe Digital Output Module is designed for secure and reliable switching in industrial control and safety systems. With eight solid-state digital output channels, it provides fail-safe operation and short-circuit protection, ensuring dependable performance in demanding environments. Its compact design and efficient power requirements make it suitable for integration into distributed control architectures.
Key Technical Specifications
-
Manufacturer: Honeywell
-
Model Number: FC-SDO-0824
-
Product Type: Safe Digital Output Module
-
Space Requirements: 4 TE, 3 HE (equivalent to 4 HP, 3U)
-
Power Requirements:
-
5 VDC: 25 mA
-
24 VDC (Internal): 25 mA
-
24 VDC (External): 70 mA (without output load)
-
Output Channels: 8
-
Output Type: 24 VDC solid-state source, short-circuit proof
-
Maximum Current per Channel: 550 mA
-
Maximum Lamp Load: 120 mA (2.9 W)
-
Maximum Load Capacitance: 1 pF
-
Voltage Drop: < 2.0 VDC at 500 mA
-
Off Current: < 0.1 mA
-
WDG Input Current: 8 mA
Features
-
Fail-Safe Outputs: Solid-state design ensures reliable switching.
-
Short-Circuit Proof: Continuous protection for safe operation.
-
Compact Size: Optimized for cabinet integration with minimal space requirements.
-
High Current Capacity: Supports up to 550 mA per channel.
-
Low Voltage Drop: Maintains efficiency under load conditions.
Application Scenarios
-
Process Safety Systems: Drives alarms, solenoids, and shutdown devices.
-
Power Generation: Provides fault-tolerant outputs in distributed control systems.
-
Chemical & Petrochemical Plants: Ensures safe switching in hazardous environments.
-
Industrial Automation: Supports reliable digital output control in complex projects.
FAQ
Q: How many output channels does the FC-SDO-0824 provide? A: It supports 8 digital output channels.
Q: What is the maximum current per channel? A: Each channel can deliver up to 550 mA.
Q: Is the module short-circuit proof? A: Yes, it includes continuous short-circuit protection.
Q: What is the typical lamp load supported? A: Up to 120 mA (2.9 W).
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
