Product Details

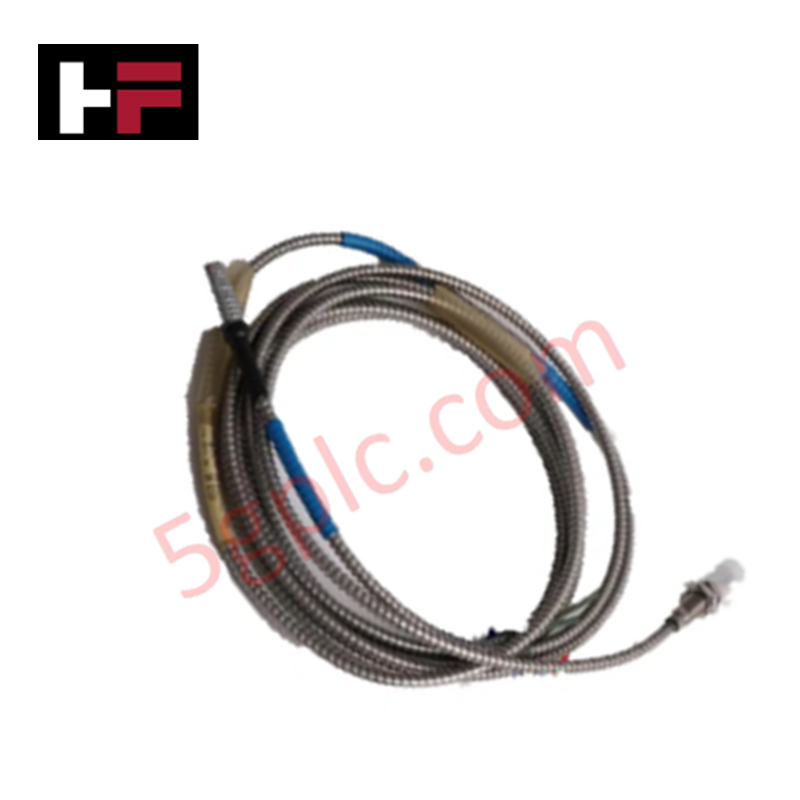

Configured for high-frequency shaft displacement acquisition in rotating machinery, the Emerson PR6423/002-041 (PR6423/002-041) Eddy Current Displacement Transducer provides direct physical execution of non-contact position sensing for axial, radial, and differential expansion monitoring.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PR6423/002-041 |
| Brand | Emerson |
| Operating Temp | -35 deg C to +180 deg C |
| Power Consumption | Not Specified |
Mechanical Monitoring and TSI Integration
The system utilizes eddy-current induction to measure the clearance between the probe tip and a metallic rotor. Successful rotor dynamics analysis is dependent on accurate eddy-current probe scaling, ensuring the transducer voltage output remains linearly proportional to shaft displacement. During initial setup, users must perform gap voltage validation, targeting a -10 VDC center point to ensure the signal remains within the linear dynamic range of the probe. To maintain high-fidelity waveform capture, the system utilizes effective cross-talk suppression by ensuring that coaxial signal paths are routed away from electromagnetic noise sources, preventing interference with the monitoring of shaft eccentricity and orbital vibration.
Frequently Asked Questions
Q: Is the PR6423/002-041 transducer compatible with standard Epro CON-series converters?
A: Yes, this transducer is designed to interface with Epro-compatible eddy current converters. Ensure the converter is calibrated for the 8 V/mm sensitivity and the specific impedance characteristics of the PR6423 probe series to maintain measurement accuracy.
Q: Can the cable length be modified or spliced?
A: No. The transducer and cable are a matched, factory-calibrated system. Splicing or modifying the cable length will change the system impedance and resonant frequency, leading to significant measurement errors in rotor vibration data.
Field Installation Guidelines
- Probe Mounting: Secure the sensor in a rigid, vibration-isolated bracket to ensure measured displacement is relative to the shaft and not the machine casing.
- Gap Adjustment: Utilize a calibrated feeler gauge to establish the nominal air gap. Verify that the gap allows for full shaft thermal expansion and dynamic movement without mechanical contact between the sensor tip and the shaft.
- Grounding: Terminate the probe shield at a dedicated instrument ground bus. Ensure the transducer housing is properly isolated or grounded according to site instrumentation standards to mitigate common-mode noise.
- Environment: Ensure all cable connections (Lemo or screw terminals) are protected against fluid ingress and are tightened to prevent mechanical loosening due to machine-induced vibration.
