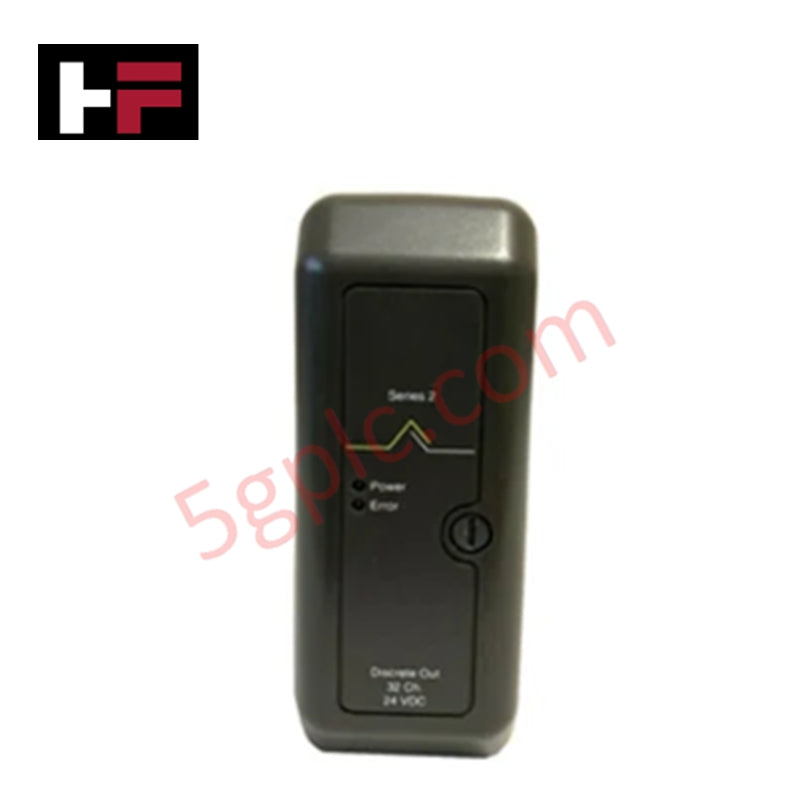

Emerson KJ3201X1-BA1 DeltaV Series 2 I/O Interface Card

Product Overview

The Emerson KJ3201X1-BA1 functions as a high-integrity I/O interface module within the DeltaV™ Distributed Control System (DCS) architecture. This card facilitates the precise exchange of signals between field instrumentation and the DeltaV controller, ensuring millisecond-level responsiveness for process control loops. Engineered for high-density rack configurations, it manages power distribution and signal isolation for critical automation tasks. We supply this unit as 100% Brand New and Original, maintaining the factory-certified reliability required for hazardous and demanding industrial environments.

Technical Specifications

The KJ3201X1-BA1 utilizes a low-power design and rugged environmental hardening to sustain continuous operation in high-interference areas.

• Local Bus Power: 12 VDC at 150 mA

• Bussed Field Power: 24 VDC at 100 mA

• Field Circuit Rating: 24 VDC at 5 mA per channel

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Airborne Contaminants: ISA-S71.04-1985 Class G3 (Harsh)

• Shock Resistance: 10 g half-sine wave for 11 ms

• Vibration Resistance: 1 mm P-P (2 to 13.2 Hz); 0.7 g (13.2 to 150 Hz)

• Relative Humidity: 5% to 95% (Non-Condensing)

• Terminal Block Keying: Position B1

Engineering Advantages

• Aggressive Atmospheric Shielding: The KJ3201X1-BA1 features a specialized coating that meets ISA-S71.04 Class G3 standards. This chemical barrier prevents corrosion from Hydrogen Sulfide ($H_2S$) and other acidic vapors, eliminating the intermittent signal faults typically found in paper mills and petrochemical refineries.

• Hardware Compatibility Lockout: The module utilizes a rotary keying system set to position B1. This mechanical safety feature prevents the accidental insertion of the wrong I/O card into a powered terminal block, protecting your field wiring and hardware from voltage mismatches.

• Low Thermal Footprint: Drawing only 150 mA from the local bus, this card generates minimal internal heat. This efficiency allows engineers to populate DeltaV carriers to maximum capacity without triggering thermal de-rating or requiring supplemental cabinet cooling.

• Mechanical Integrity in High-Vibration Zones: Withstanding 0.7 g of continuous vibration and 10 g of shock, this module maintains secure electrical contact with the backplane. This durability makes it ideal for installation in enclosures mounted directly on process skids or near heavy-duty reciprocating compressors.

• Universal Environmental Rating: The broad -40°C to +70°C operating range ensures the card performs reliably in unconditioned remote instrument enclosures (RIEs) across all global climate zones.

FAQs

Q: Is the KJ3201X1-BA1 hot-swappable while the system is energized?

A: No. Safety protocols dictate that you must de-energize the system power and field power before removing or inserting the module. Hot-swapping in energized or hazardous areas poses significant ignition risks and potential hardware damage.

Q: How do I verify that this unit is 100% Brand New?

A: We provide only original Emerson factory-sealed units. Every KJ3201X1-BA1 arrives in its original anti-static packaging with matching serial numbers and manufacturer labels. We do not sell "new-surplus" or refurbished inventory.

Q: What are the primary installation requirements for energy-limited nodes?

A: You must perform a complete I/O loop assessment for all energy-limited nodes before commissioning. Additionally, ensure all non-sparking field circuits remain de-energized during the installation of the card and its associated fused terminal block.

Q: Can this card withstand coastal salt-air environments?

A: Yes. The G3-rated coating specifically targets the corrosion challenges of coastal and offshore facilities. When housed in a properly rated IP20 or NEMA enclosure, the KJ3201X1-BA1 provides long-term resistance to salt-induced oxidation.
