Product Details
Product Description

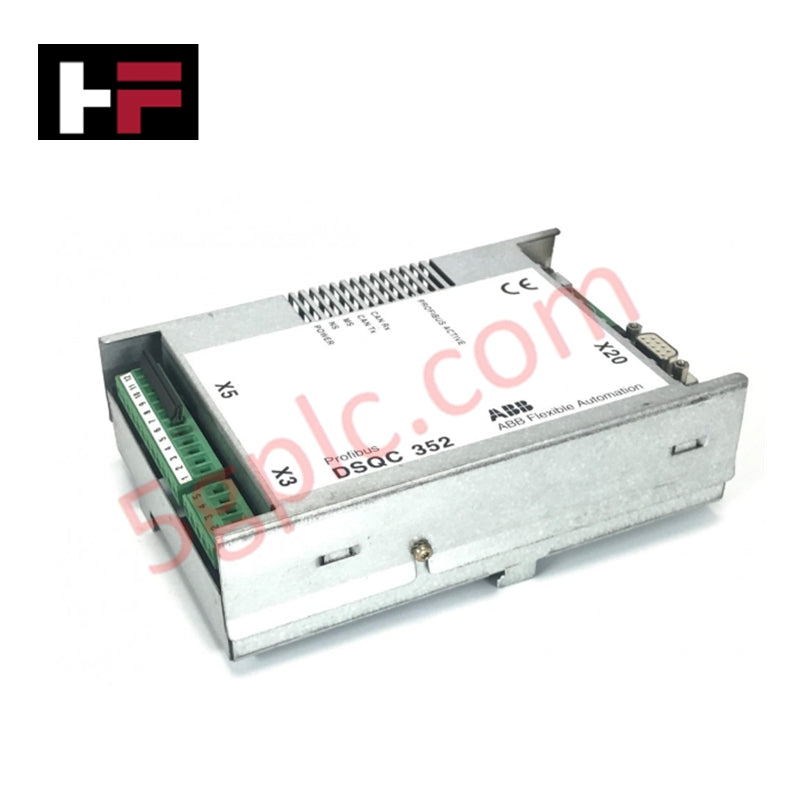

The DSQC 352 (3HNE 00009-1) is a dedicated Profibus-DP slave communication interface designed for ABB S4C and S4C+ industrial robot controllers. This module enables high-speed data exchange between the robotic system and a master PLC (such as Siemens S7 or Allen-Bradley) over a standard Profibus network. It acts as a gateway, allowing for the integration of robotic motion control with broader factory automation protocols.
By utilizing the DSQC 352 (3HNE 00009-1), engineers can remotely manage I/O signals, monitor real-time robot status, and execute program handshake routines without complex hardwiring. The unit is engineered for stable operation in environments with significant electromagnetic noise, common in automotive and heavy manufacturing plants.
Technical Specifications
-
Manufacturer: ABB
-
Model Designation: DSQC 352
-
Part Number: 3HNE 00009-1
-
Network Protocol: Profibus-DP (Slave)
-
Baud Rate Support: Auto-detecting up to 12 Mbps
-
Module Width: 200 mm
-
Module Height: 95 mm
-
Module Depth: 305 mm
-
Net Weight: 0.48 kg
-
Gross Weight: 0.6 kg
-
Controller Compatibility: S4C, S4C+ M2000/M2000A Systems
System Integration & Diagnostics
The installation of the DSQC 352 (3HNE 00009-1) typically occurs within the computer sub-rack of the controller. It features physical rotary switches for station address setting and diagnostic LEDs to indicate bus power and active communication status. Integration requires the correct GSD file to be loaded into the master PLC configuration tool (e.g., TIA Portal or Step 7).
FAQ
Does this module support Profibus-DPV1 functions?The DSQC 352 (3HNE 00009-1) primarily supports standard cyclic data exchange (DPV0). For advanced acyclic messaging, verify the software options available in your specific RobotWare version.
What is the correct GSD file for this unit?The module generally uses the "ABB_062B.GSD" file for identification on the Profibus network. Ensuring the correct GSD version is used is critical for proper I/O mapping.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
