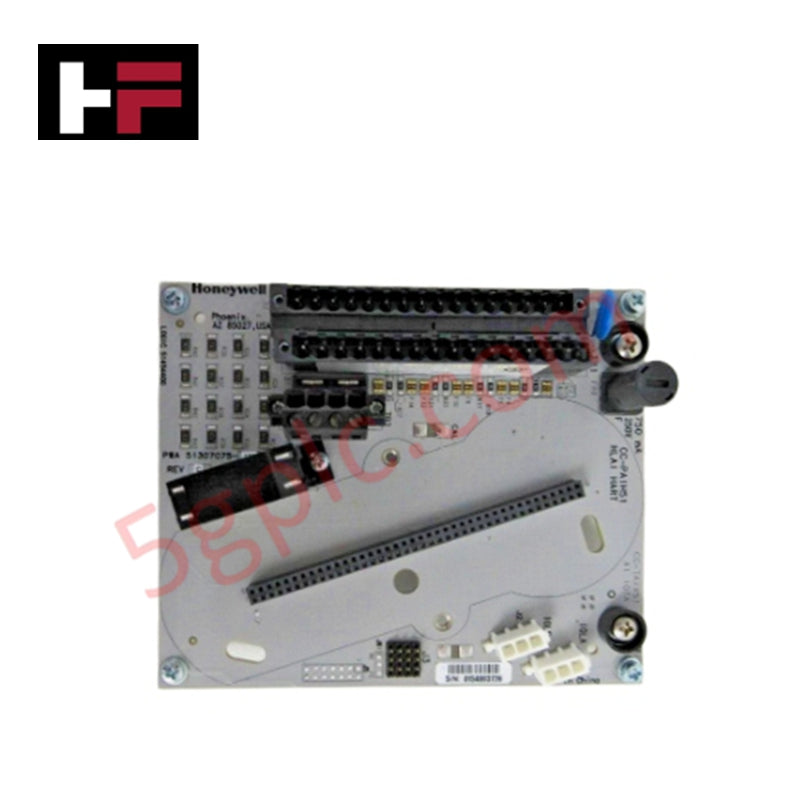

CC‑TAIX51 51307075‑175 Honeywell High-Precision Analog Input Module

Overview

The Honeywell CC‑TAIX51 (51307075‑175) is a high-accuracy analog input module engineered for distributed control systems within industrial environments. It enables precise measurement of signals from field devices such as sensors and transmitters, providing dependable data acquisition for process control. Its compatibility with Honeywell Experion PKS and C300 controllers ensures consistent system performance and scalable integration. Rugged construction supports stable operation in challenging industrial settings, reducing maintenance needs and downtime.

Technical Specifications

• Model: CC‑TAIX51

• Part Number: 51307075‑175

• Module Type: Analog Input Module

• Number of Channels: 16 analog inputs

• Input Signal Range: 0–10 VDC voltage, 4–20 mA current

• Accuracy: ±0.1% of full scale

• Resolution: 16-bit A/D conversion

• Sampling Rate: 100 Hz

• Communication: Compatible with Honeywell Experion PKS and C300 controllers

• Mounting: Panel or rack installation

• Operating Temperature: −20°C to +55°C

• Humidity: 5%–95% RH, non-condensing

• Power Supply: 24 VDC nominal

• Weight: Approx. 0.75 lbs (0.34 kg)

Key Features

• High-Precision Input: Accurate analog signal acquisition for critical control applications.

• Multi-Channel Capability: 16 independent inputs support complex monitoring tasks.

• System Integration: Seamless communication with Experion PKS and C300 controllers.

• Industrial Durability: Designed to operate reliably in harsh environmental conditions.

• Efficient Maintenance: Reduces downtime through stable and dependable module performance.

Applications

• Chemical Processing: Monitoring of flow, pressure, and temperature instruments.

• Oil & Gas: Reliable acquisition of sensor data for process safety and operational efficiency.

• Power Generation: Continuous analog monitoring for turbine and boiler systems.

FAQ

Q: What is the main purpose of the CC‑TAIX51 module?
A: To provide accurate analog signal measurements for distributed process control systems.

Q: How many channels does this module include?
A: 16 independent analog input channels.

Q: Can it integrate with Honeywell Experion PKS?
A: Yes, it is fully compatible with Experion PKS and C300 controllers.

Q: Which industries commonly use this module?
A: Oil & gas, chemical processing, and power generation sectors.
