Product Details
Product Overview

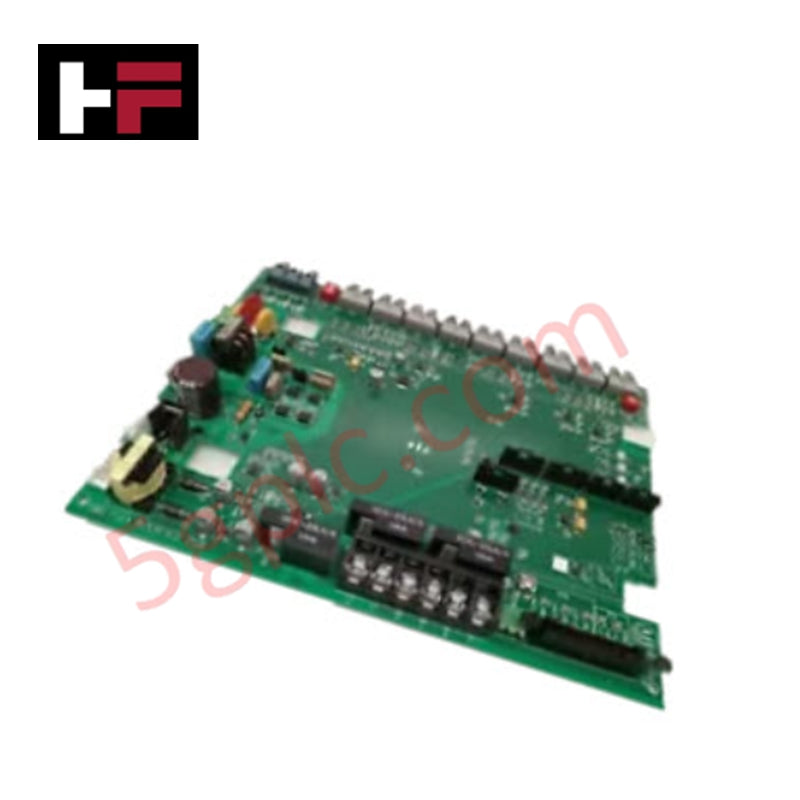

The Allen Bradley 80190-440-03-R serves as the primary communication and logic interface for the SMC Flex series of solid-state soft starters. This internal PCB board manages the firing signals for the SCRs and coordinates the starting torque and acceleration ramps of heavy-duty industrial motors. Despite the manufacturer's discontinued status for this series, we supply this unit as 100% Brand New and Original, allowing facilities to restore critical motor control systems without replacing the entire drive infrastructure.
Technical Specifications
The 80190-440-03-R integrates high-density circuitry designed for the electrical rigors of soft-start operation:
| Feature | Specification |
| Part Number | 80190-440-03-R |
| Component Type | Interface PCB Board |
| Compatibility | SMC Flex Soft Starters |
| Category | Drives / Soft Start |
| Function | Signal Interface and Logic Control |
| Weight | 0.95 lbs (0.43 kg) |
| Condition | 100% Brand New Original |
Engineering Advantages
-
Seamless System Recovery: This interface board provides a direct-fit replacement for the original 80190-440-03-R. It eliminates the need for expensive system upgrades or mechanical retrofitting of legacy SMC Flex units.
-
Precision Gate Timing: The onboard logic ensures exact synchronization of gate pulses. This precision reduces mechanical stress on motor shafts and couplings by maintaining smooth, linear acceleration during the start cycle.
-
Enhanced EMI Resistance: The PCB layout incorporates advanced shielding to protect signal integrity. This design prevents nuisance tripping caused by electromagnetic interference from nearby variable frequency drives (VFDs) or high-voltage switchgear.
-
Direct Logic Integration: The board interfaces perfectly with the existing SMC Flex control module, supporting all native protection features including electronic motor overload and stall detection.
FAQs
-
Does this 80190-440-03-R board require firmware flashing?
The board utilizes the resident logic found in the SMC Flex control architecture. However, we recommend verifying your current drive's firmware version to ensure full compatibility with advanced diagnostic features.
-
What symptoms indicate a failure of this interface board?
Common failure signs include "Gate Fault" errors, inconsistent starting ramps, or a total loss of communication between the human-interface module (HIM) and the power section.
-
How do I ensure the longevity of a new interface board?
Always check the cooling fans and ventilation paths of your SMC Flex unit during installation. Excessive heat buildup in the drive enclosure remains the leading cause of PCB component degradation.
-
Is this a refurbished or pulled component?
No. We guarantee this unit is 100% Brand New. It has never seen service in a live motor control center and ships in original protective packaging to prevent ESD damage.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
