Product Details
Overview

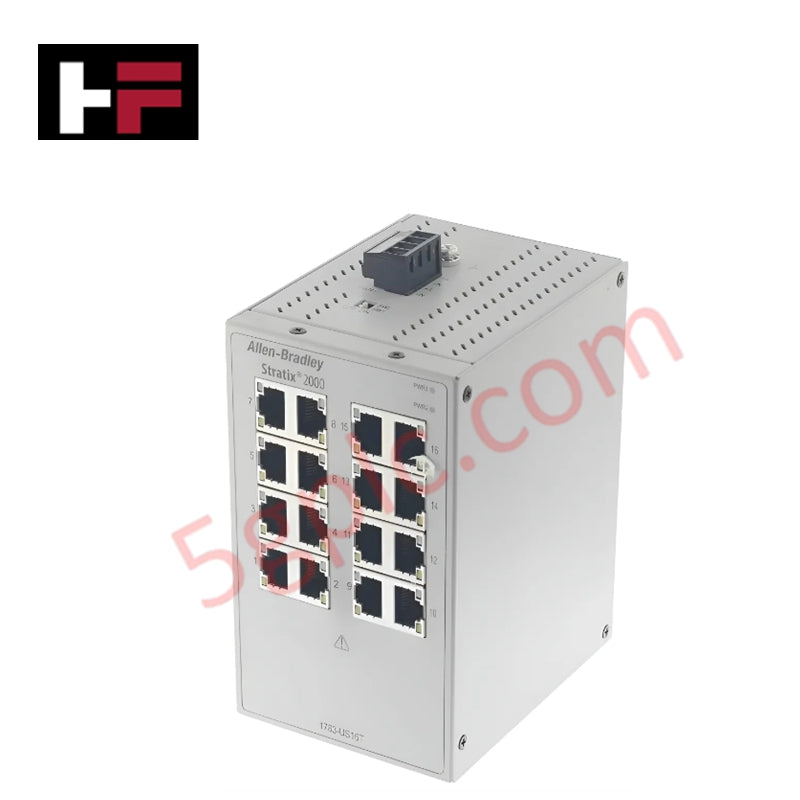

The Allen-Bradley 1783-US16T is an unmanaged industrial Ethernet switch from the Stratix family, designed to deliver reliable and efficient network connectivity in demanding automation environments. Featuring 16 auto-negotiating ports, it supports both 10 Mbps and 100 Mbps communication speeds, ensuring robust data transmission for a wide range of PLC, HMI, and industrial control devices.
This compact, DIN rail–mountable switch offers plug-and-play configuration with rugged construction for continuous operation in harsh industrial conditions.
Technical Specifications
-
Model / Part Number: 1783-US16T
-
Brand: Allen-Bradley
-
Product Type: Industrial Unmanaged Ethernet Switch
-
Series: Stratix Unmanaged Switches
-
Number of Ports: 16 RJ45
-
Port Type: 10/100 Mbps auto-sensing, full/half-duplex operation
-
Network Protocols Supported: Ethernet, TCP/IP, UDP
-
Switching Capacity: 3.2 Gbps
-
MAC Address Table: 4K entries
-
Power Input: 18–32 VDC
-
Power Consumption: 6.5 W (typical)
-
Mounting Type: DIN rail
-
Enclosure Type: Open-style industrial-grade metal housing
-
Operating Temperature Range: -40°C to +60°C (-40°F to +140°F)
-
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
-
Relative Humidity: 5–95% (non-condensing)
-
Weight: 1.3 lbs (0.59 kg)
Key Features
-
16-port unmanaged Ethernet switch for industrial networks
-
Plug-and-play configuration—no setup software required
-
Auto MDI/MDI-X crossover and auto-negotiation
-
Rugged, vibration-resistant design for harsh environments
-
Optimized for ControlLogix, CompactLogix, and Stratix Ethernet networks
Applications
-
Machine-level Ethernet connectivity in manufacturing cells
-
Linking PLCs, HMIs, and drives in automation systems
-
Industrial networking for material handling and packaging systems
FAQs
Q1: What is the main function of the 1783-US16T switch?
It provides unmanaged Ethernet communication between multiple industrial devices such as PLCs and HMIs within a network.
Q2: Is this switch suitable for harsh environments?
Yes, the 1783-US16T is built for industrial-grade applications with an extended operating temperature range and high shock tolerance.
Q3: Does it support auto-negotiation?
Yes, all 16 ports support auto-negotiation for speed and duplex configuration.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
