Product Overview

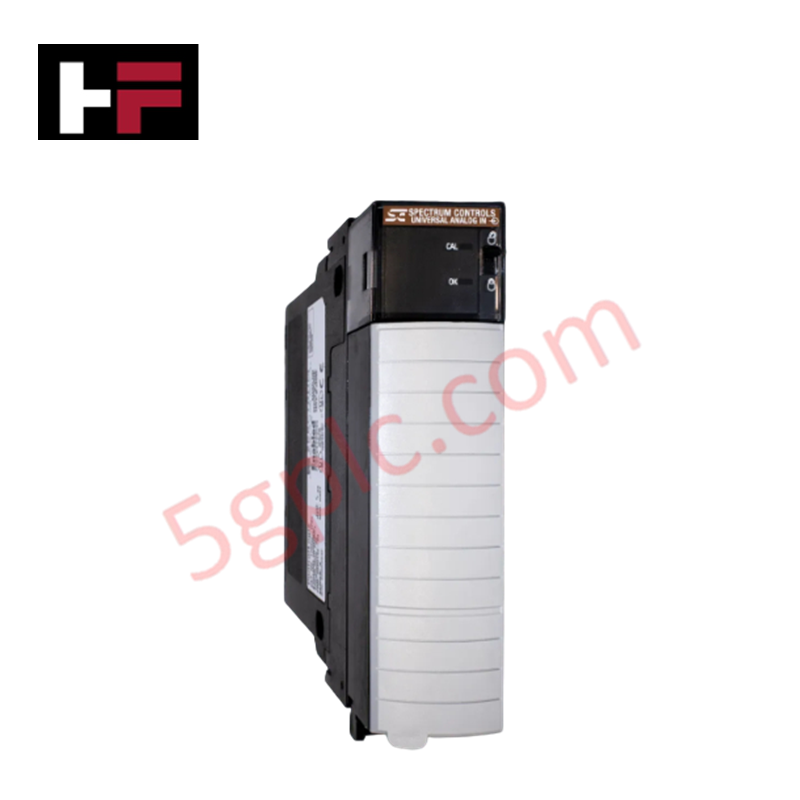

The Allen Bradley 1756sc-IF8U (manufactured by Spectrum Controls for the ControlLogix platform) serves as a high-density, universal input solution that eliminates the need for multiple dedicated I/O cards. This single-slot module supports up to eight channels of mixed signals, including Voltage, Current, Thermocouple, RTD, and Resistance. It acts as the primary interface for complex thermal processes and varied instrument loops, significantly reducing spare parts inventory and chassis space requirements. We offer this module in 100% Brand New and original factory condition, ensuring maximum precision for your automation architecture.
Technical Specifications
The 1756sc-IF8U provides exceptional signal flexibility and resolution across all eight channels:
| Feature | Specification |
| Input Count | 8 Universal Isolated Channels |
| Voltage Ranges | ±50 mV, ±100 mV, 0-5V, 1-5V, 0-10V, ±10V |
| Current Ranges | 0-20 mA, 4-20 mA |
| Thermocouple Types | J, K, T, B, E, R, S, N, C |
| RTD Types | PT385/3916, Ni618/672, NiFe518, Cu426 |
| Resistance Ranges | 0-150, 0-1000, 0-3000 ohms |
| Resolution | 16 to 21 bits (frequency dependent) |
| Channel Isolation | 12.5 VDC Channel-to-Channel |
| Backplane Current | 230 mA @ 5V max |
| Thermal Dissipation | 3.0 Watts |
Engineering Advantages
-
Mixed-Signal Consolidation: The 1756sc-IF8U allows you to mix Thermocouple, RTD, and 4-20mA signals on the same module. This feature solves the "rack crowding" problem in complex systems, effectively replacing three or four dedicated analog cards with a single slot.
-
High-Speed Sample Rates: The module supports update times up to 1000 Hz with sample times as fast as 0.04 ms. This capability ensures your ControlLogix processor receives instantaneous data for high-speed PID loops or rapid thermal transients.
-
Superior Noise Immunity: With a Common Mode Rejection of 96 dB @ 50/60 Hz and 12.5 VDC channel-to-channel isolation, this module maintains signal integrity in electrically noisy environments. It filters out industrial interference that typically causes drift in standard analog inputs.
-
Software-Configurable Filtering: Engineers can select from five distinct filter frequencies individually for each channel. This allows for customized balancing between high-speed response and ultra-high 21-bit resolution on a per-instrument basis.
FAQs
Q: Can I replace a standard 1756-IF8 or 1756-IRT8I with the 1756sc-IF8U?
A: Yes. The 1756sc-IF8U combines the functions of both. However, since this is a Spectrum Controls specialty module, you must import the appropriate Add-On Profile (AOP) or use Generic Module configuration in Studio 5000 to access all universal features.
Q: Does the module require an external power supply for 4-20mA loops?
A: The 1756sc-IF8U acts as a passive receiver. You must provide loop power for 2-wire transmitters via an external 24VDC source, or use the module to measure self-powered 4-wire instruments.
Q: How does the "Universal" aspect affect accuracy compared to dedicated RTD cards?
A: The 1756sc-IF8U maintains 16 to 21-bit resolution, rivaling or exceeding dedicated cards. Its built-in cold-junction compensation and selectable filtering ensure laboratory-grade accuracy even when mixing signal types across the terminal block.
Q: Is this module compatible with all ControlLogix chassis?
A: Yes, it fits any standard 1756 ControlLogix chassis and works with Logix controllers. It also supports remote I/O configurations via ControlNet or EtherNet/IP adapters.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
