Product Details
Technical Architecture and Functional Integration

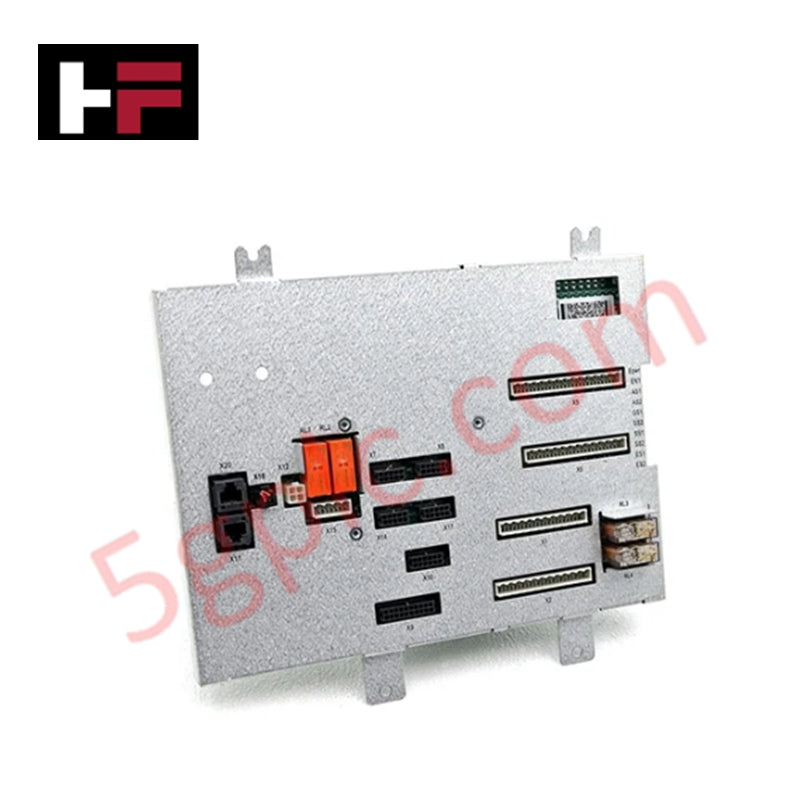

The DSQC 472 (YT204001-ET) functions as a specialized motor control interface within the ABB S4C+ robot controller hierarchy. This board is engineered to bridge the gap between high-level command logic and physical actuator response, managing precision signal processing for motor regulation. Beyond its primary motor control capabilities, the DSQC 472 often incorporates integrated I/O channels to facilitate localized sensor feedback and peripheral device synchronization, making it a pivotal component for maintaining the dynamic performance of S4C+ industrial arms.
Technical Specifications
Detailed engineering parameters for the DSQC 472 are outlined below:
-
Controller Generation: Exclusively for ABB S4C+ (M2000/M2000A) systems
-
Function: Combined Motor Control and Digital/Analog I/O Processing
-
Processor Link: High-speed communication interface for real-time axis synchronization
-
Unit Mass: 190 g
-
Manufacturing Origin: Sweden
-
Power Requirements: Typically logic-level DC supply from the controller backplane
-
Mounting Interface: Standard slot-based installation within the robot computer module
Operational Implementation and FAQ
What are the primary indicators of a hardware fault on the DSQC 472?
Technicians should monitor the status LEDs located on the front edge of the card. A "Fault" LED or a failure of the system to recognize a specific motor axis during the boot sequence often points to internal component degradation or signal interference within the DSQC 472 circuitry.
Can this board be used as a standalone I/O module?
While the DSQC 472 contains I/O capabilities, its firmware and hardware architecture are optimized for motor control logic. It is not intended to replace dedicated high-density I/O units like the DSQC 328 or 652.
Does this board require manual jumper configuration?
Depending on the specific axis configuration of your S4C+ cabinet, certain hardware address jumpers may need to be verified against the original system schematics to ensure correct bus identification for the DSQC 472.
Hardware Comparison: DSQC 472 vs. DSQC 346
| Feature | DSQC 472 | DSQC 346 |
| System Generation | S4C+ (Modern) | S4 / S4C (Legacy) |
| Primary Focus | Integrated Motor/IO | Dedicated Power/Axis Drive |
| Weight | 190 g | ~800 g |
| Communication | Advanced Serial/Parallel | VME Bus Interface |
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
