Technical Product Overview

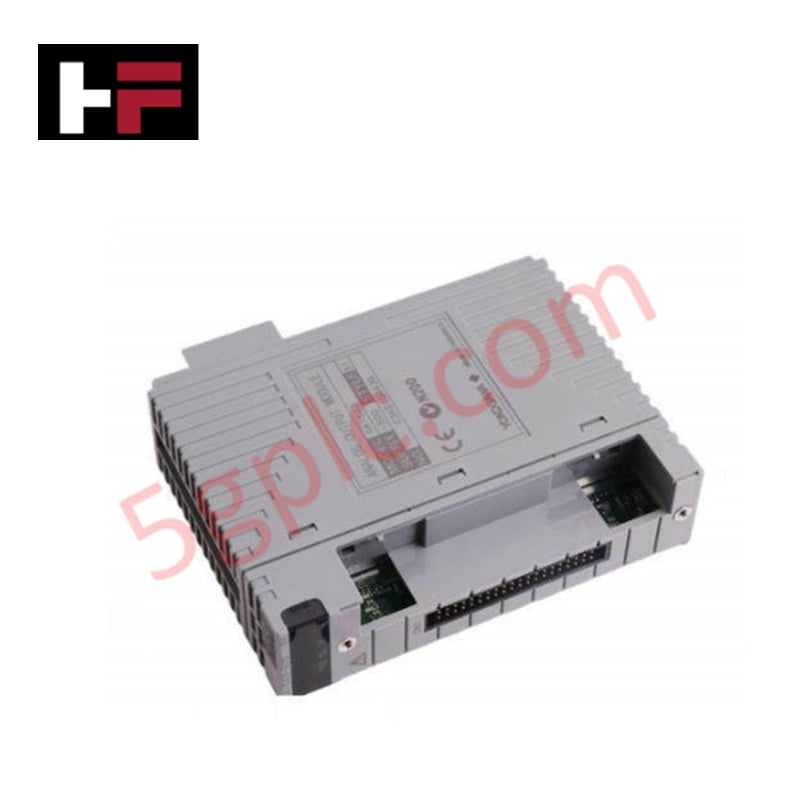

The AAI543-S50/A4S00 is a high-density analog output assembly designed for the Yokogawa CENTUM VP and ProSafe-RS control systems. This module provides 16 fully isolated channels, each sourcing a standard 4 to 20 mA DC signal to drive field instruments such as control valve positioners, variable speed drives, and analog indicators.
Engineered for mission-critical process control, the AAI543-S50/A4S00 utilizes an isolated architecture to eliminate potential ground loops and signal cross-talk, ensuring high precision even in electrically noisy industrial environments. This specific configuration includes the factory-fitted ATA4S-00 pressure clamp terminal block, simplifying field wiring and ensuring secure mechanical connections for all output loops.
Detailed Engineering Specifications
-
Module Function: 16-Channel Analog Output
-
Signal Range: 4 to 20 mA DC per channel
-
Isolation Architecture: Channel-to-system and channel-to-channel isolation
-
Hardware Variant: AAI543-S50/A4S00 (Standard type, non-explosion protected)
-
Terminal Interface: Included Pressure Clamp Terminal Block (Model: ATA4S-00)
-
Data Refresh Rate: High-speed output updates compatible with CENTUM VP loop requirements
-
Output Accuracy: High-precision D/A conversion for granular control loop performance
-
Power Management: Internal 5V DC (system side) and 24V DC (field side) consumption
-
Mounting: Direct slot installation in Yokogawa I/O units (e.g., AFV30/AFV40)
-
Shipping Mass: 2kg
Hardware Configuration and Integration
The AAI543-S50/A4S00 is the basic, standard-tier module for non-hazardous locations. By integrating the terminal block directly via the /A4S00 option code, engineers can reduce cabinet depth requirements by eliminating the need for external interface cables (like the KS1 series) and separate DIN-rail terminals. This "all-in-one" termination approach minimizes voltage drops across the loop and simplifies point-to-point continuity testing during commissioning.
Frequently Asked Questions
Can the AAI543-S50/A4S00 support HART communications?
The standard AAI543-S50/A4S00 is optimized for 4-20 mA analog signals. For HART digital pass-through capability, a specific HART-enabled version of the AAI543 (typically designated with additional suffix codes) is required.
Is this module suitable for safety instrumented systems (SIS)?
Yes, the AAI543 series is frequently utilized in ProSafe-RS safety systems. However, for specific Safety Integrity Level (SIL) compliance, the application must adhere to the Yokogawa safety manual hardware guidelines.
