Product Details
Overview

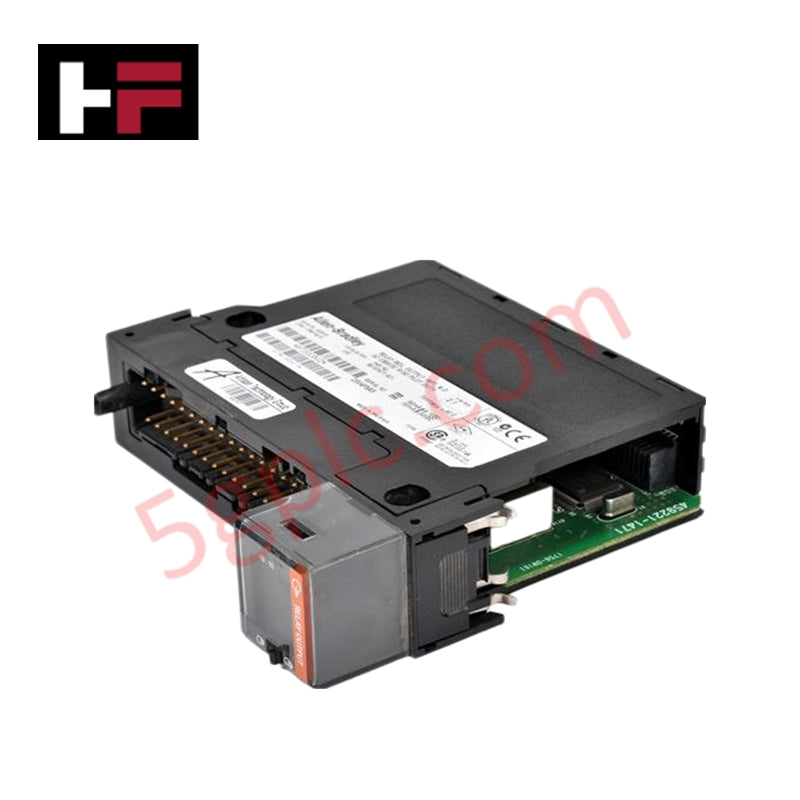

The 1756-OW16I is an Allen-Bradley ControlLogix digital output module designed for high-reliability industrial control systems. It features 16 individually isolated output channels, suitable for both DC and AC loads, offering flexibility for a wide range of automation applications.
Technical Specifications
-
Manufacturer: Allen-Bradley
-
Product Line: ControlLogix
-
Part Number: 1756-OW16I
-
Product Type: Digital DC/AC Output Module
-
Weight: 1.00 lbs (0.45 kg)
-
Module Type: Digital DC Sourcing Output
-
Number of Outputs: 16 individually isolated channels
-
Contact Form: Normally Open (N.O.)
-
Operating Voltage Range: 5…125V DC; 10…240V AC
-
Output Current Ratings: 1 A @ 5–30V DC, 0.5 A @ 48V DC, 0.22 A @ 125V DC, 1.5 A @ 120V AC, 0.75 A @ 240V AC
-
Output Delay Time: Max 10 ms ON/OFF
-
Current Draw at 5.1V: 150 mA
-
Backplane Power: 4.4 W
-
Backplane Current, 24V DC: 2 mA
-
Power Dissipation: 4.5 W @ 60 °C (140 °F)
-
Enclosure: Open-style, no enclosure
-
Removable Terminal Blocks: 1756-TBCH, 1756-TBS6H
-
Isolation Voltage: 50 Volts Continuous
-
Outputs: 16-point individually isolated
Key Features
-
Individually Isolated Outputs: Each channel is electrically isolated for safe operation and reliable signal integrity
-
Flexible Voltage Support: Compatible with a wide range of DC and AC control voltages
-
Fast Response: Maximum 10 ms signal delay ensures timely switching
-
High Reliability: Rated for industrial operation with continuous isolation and low thermal dissipation
-
Serviceable Terminal Blocks: Removable terminal blocks allow easy wiring and maintenance
Applications
-
Actuating solenoids, relays, and indicator lights
-
Controlling DC and AC loads in process control systems
-
Automation tasks requiring electrically isolated outputs
FAQs
Q: How many outputs does the 1756-OW16I module provide?
A: It has 16 individually isolated channels, all Normally Open (N.O.).
Q: What voltage and current ratings are supported?
A: DC: 5–125V with currents from 0.22–1 A; AC: 10–240V with currents from 0.75–1.5 A.
Q: Are the terminal blocks removable?
A: Yes, the module supports 1756-TBCH and 1756-TBS6H removable terminal blocks.
