Product Details

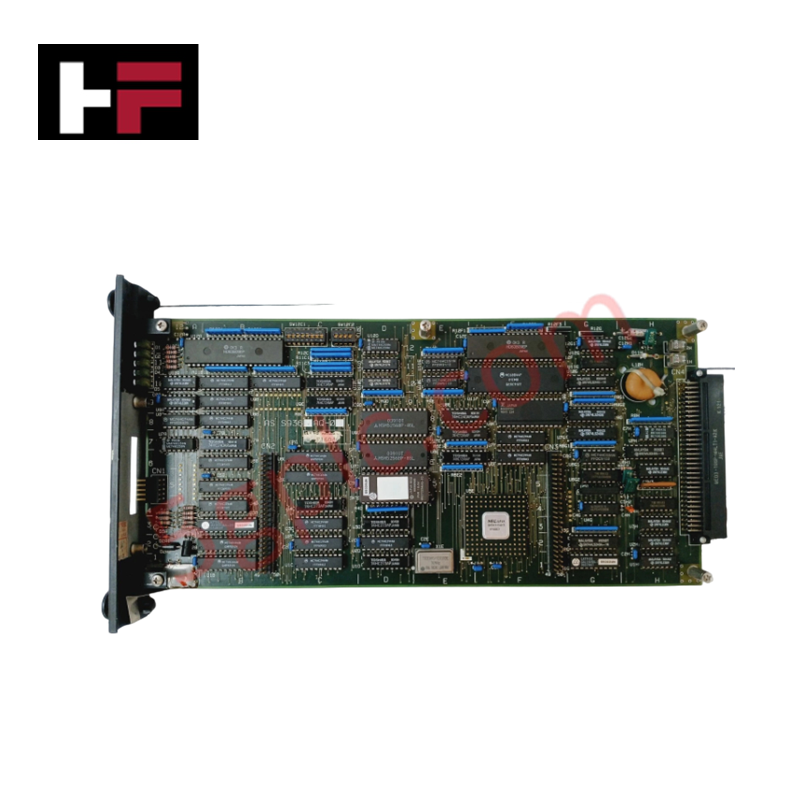

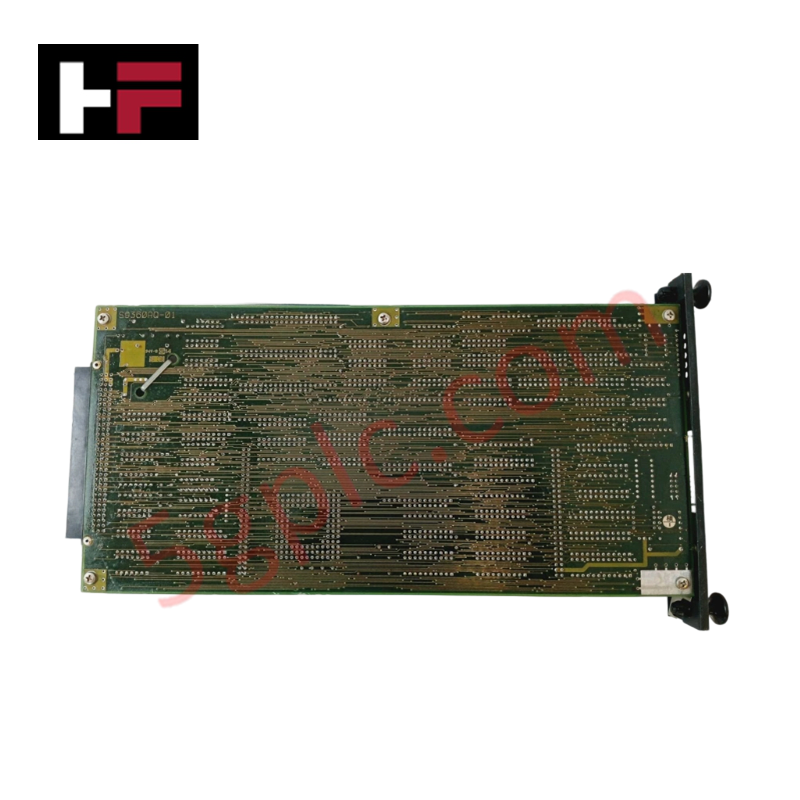

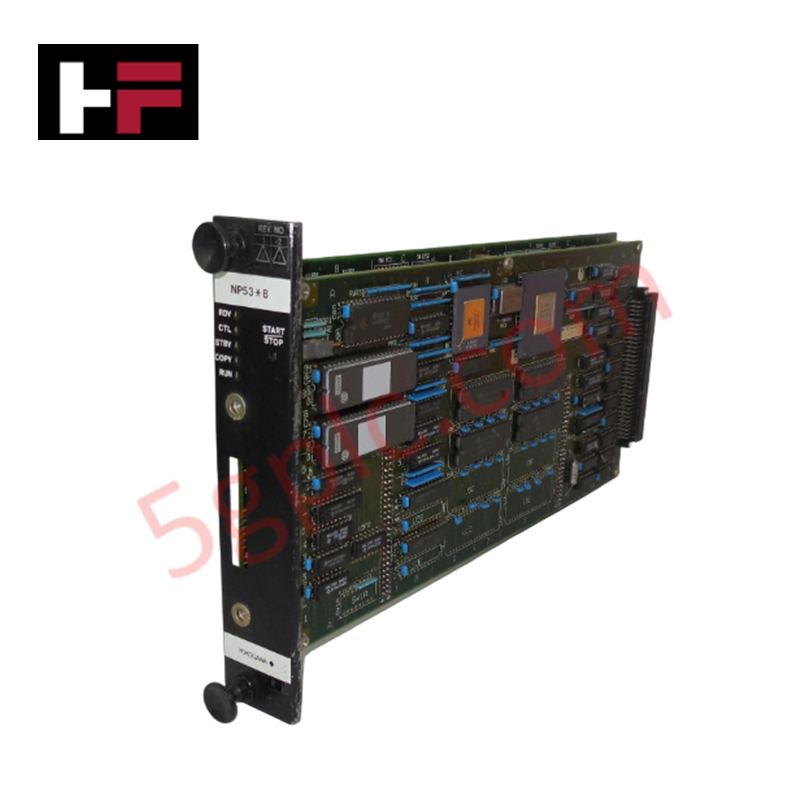

The Yokogawa NP53*B, also cataloged as the NP53 Communication PCB Module, operates as a dedicated hardware component for high-speed data exchange and system inter-module routing within CENTUM VP and CENTUM CS 3000 control system platforms.
Suffix Breakdown & Model Matrix
- NP53: Base model designation for the primary communication printed circuit board module hardware.
- *B: Hardware revision indicator specifying internal circuit layout and component revision level.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | NP53*B |
| Brand | Yokogawa |
| Origin | Japan |
| Signal Processing | Real-time data handling and transmission |
| Communication Protocols | Vnet/IP, RL-BUS, and associated industrial protocols |
| Isolation Type | Optical isolation for noise immunity |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Dimensions | Compact Rack-Mount / Cabinet Interface Form Factor |
| Weight | 0.5 kg |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | Standard internal backplane bus current draw |
Yokogawa Channel Isolation & Industrial Fieldbus Protocol Interface
The NP53*B module integrates optical isolation across internal signal paths to eliminate ground loop current differentials and protect logic processing components from transient EMI noise. Optimized for Vnet/IP and RL-BUS communication architectures, the board executes real-time data handling to maintain high-throughput link integrity between main control units, remote I/O subnodes, and field instrument loops, including 4-20 mA HART loop protocol networks.
Frequently Asked Questions
Q: How does the optical isolation on the NP53*B benefit high-density control cabinets?
A: Optical isolation decouples field-side electrical noise and transient voltage spikes from sensitive internal system buses, preserving signal fidelity across interconnecting backplane lines.
Q: Is the NP53*B compatible across multiple generations of Yokogawa control systems?
A: Yes, the module supports hardware integration within CENTUM VP and CENTUM CS 3000 systems using standard rack slot backplane connections.
Field Installation Guidelines
Mount the NP53*B communication PCB module into its designated rack slot guide rails, applying steady force until the backplane multi-pin edge connectors lock completely. Secure all panel or faceplate retaining screws to establish structural retention and maintain continuous chassis protective earth grounding. Route network cables through designated wiring channels isolated from high-voltage AC power mains to minimize electromagnetic interference.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
