Product Details

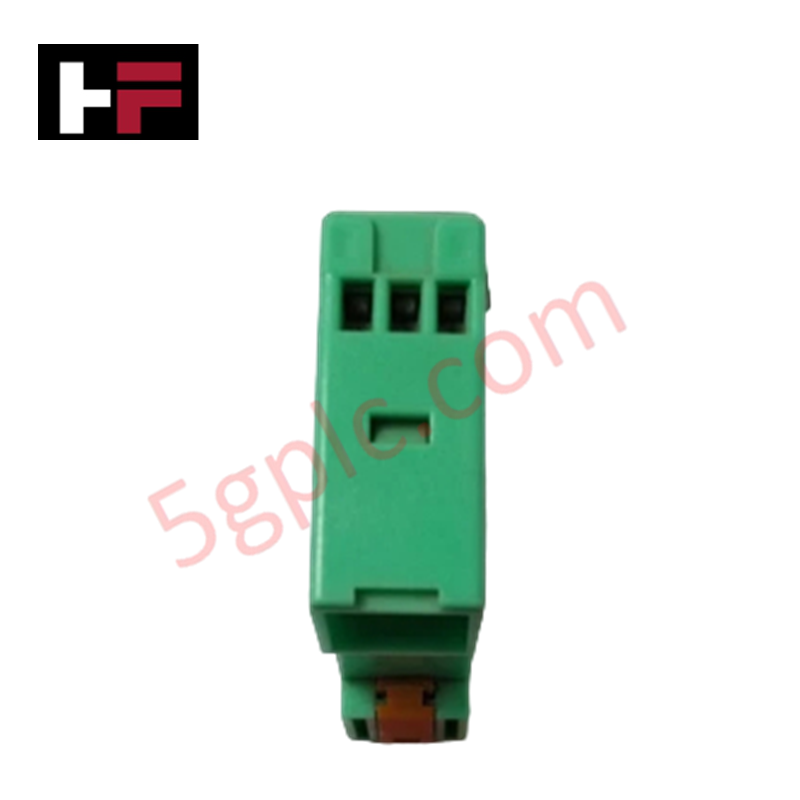

Configured for power system synchronization in LinkNet network architectures, the Woodward 9905-760 (9905-760 Digital Synchronizer and Load Control Module) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 9905-760 |
| Brand | Woodward |
| Origin | USA |
| Weight | Approx. 0.5 kg |
| Dimensions | 16 cm x 16 cm x 12 cm |
| Operating Temp | Industrial grade specification |
| Power Consumption | Dependent on control load |
| Synchronizing Logic | Microprocessor-based frequency and phase angle monitoring |
Actuator Loop Feedback Response
The 9905-760 manages power system stability by monitoring generator frequency and phase angle via integrated microprocessor logic. It generates precise control signals to adjust generator output, ensuring matching parameters prior to grid connection. During parallel operation, the module executes real-time load demand adjustments, regulating power output to maintain system voltage and frequency setpoints. The internal architecture includes thermal heat sink dissipation profiles to ensure operational stability during continuous load-balancing cycles in varying ambient conditions.
Frequently Asked Questions
Q: Can the 9905-760 be switched between automatic and manual modes during operation?
A: Yes, the module supports both automatic and manual operating modes. Mode transition should be performed according to the system's control logic to prevent abrupt changes in generator frequency or phase angle.
Q: Is this module compatible with other Woodward LinkNet series hardware?
A: The 9905-760 is designed for integration within LinkNet architectures. Ensure that firmware revisions across all connected LinkNet modules are compatible to maintain communication integrity.
Field Installation Guidelines
- Ensure the control cabinet is de-energized prior to mounting the module to prevent electrical damage to the communication bus.
- Verify that the physical dimensions (16 cm x 16 cm x 12 cm) are accommodated by the enclosure clearance requirements.
- Terminate all signal wiring according to the provided schematic to ensure accurate measurement of generator frequency and phase angle.
- Utilize shielded cabling for control signals to minimize electromagnetic interference that could affect the microprocessor's synchronization precision.
- Secure the module to the mounting plate using appropriate hardware to maintain resistance against vibrations typical of engine-driven generator environments.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
