Product Details

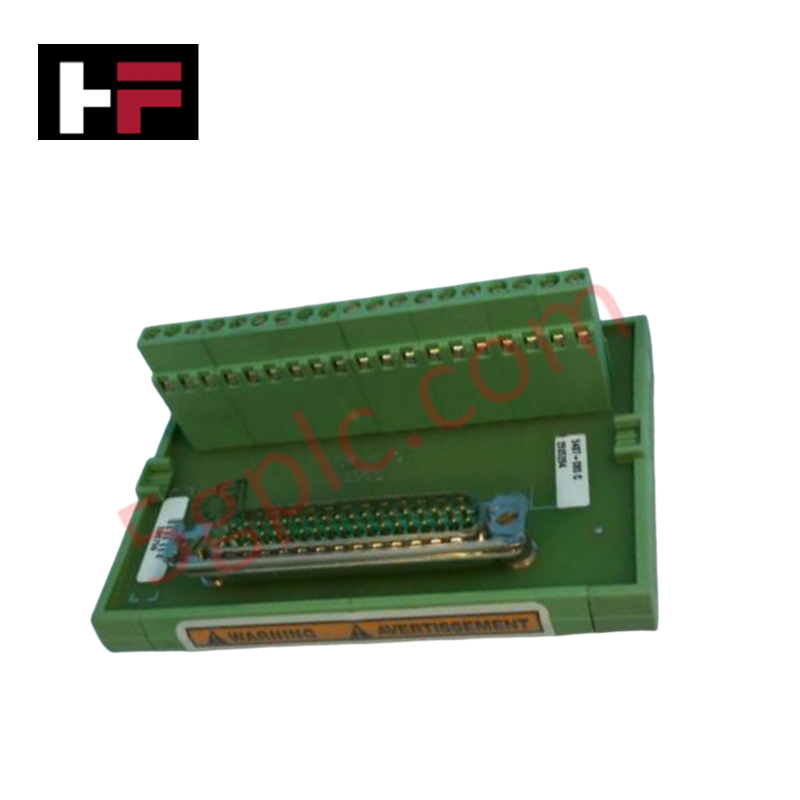

Configured for signal interfacing in NetCon control architectures, the Woodward 5437-080 (5437-080 Field Terminal Module) provides direct physical execution of I/O signal termination, shield grounding, and electrical circuit switching for turbine control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5437-080 |
| Brand | Woodward |
| Origin | USA |
| Weight | Not specified |
| Dimensions | 14 in x 11 in x 4 in |
| Input Voltage | 24 VDC |
| Interface | 37-pin D-type connector |
Actuator Loop Feedback Response and Thermal Heat Sink Dissipation Profiles
The 5437-080 integrates with I/O modules via a subminiature 37-pin D-type connector to bridge low-voltage control logic with high-power field devices. The internal relay assembly manages circuit switching, providing a physical interface that ensures precise control of electrical loads. To maintain operational stability within the control cabinet, the module enclosure supports thermal heat sink dissipation profiles, preventing localized overheating during continuous relay engagement. The device maintains actuator loop feedback response by providing a low-impedance termination point that minimizes signal interference and preserves the fidelity of control loops. Integrated shield termination and EMI protection circuitry further safeguard the signal path from transient noise within the industrial environment.
Frequently Asked Questions
Q: Can the 37-pin connector be connected to standard MicroNet I/O modules?
A: Yes. The 5437-080 is designed to connect directly to the front-facing subminiature D-type connectors on MicroNet I/O modules. Ensure the cable alignment is locked to prevent intermittent signal loss or contact damage.
Q: Are the internal relays field-replaceable in the event of a switching failure?
A: The relays are integrated into the FTM assembly. If a relay component fails, the entire module must be assessed for replacement according to standard maintenance procedures to ensure the structural integrity of the cage-clamp terminations and shield grounding points.
Field Installation Guidelines
- Mounting: Secure the FTM to a standard 35 mm DIN rail. Ensure the module is positioned to allow adequate clearance for the 37-pin cable harness and field wire routing.
- Wiring: Utilize cage-clamp terminals for all field wiring to ensure vibration-resistant connections. Maintain wire dressing to prevent mechanical strain on the module terminals.
- Shielding: Terminate cable shields directly to the designated grounding points on the FTM. Consistent shield grounding is required to maintain EMI protection and signal integrity across the interface.
- E-Stop Integration: Verify that the emergency stop button circuit is wired per the system-specific logic diagram to ensure immediate, deterministic de-energization of the controlled load.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
