Product Details

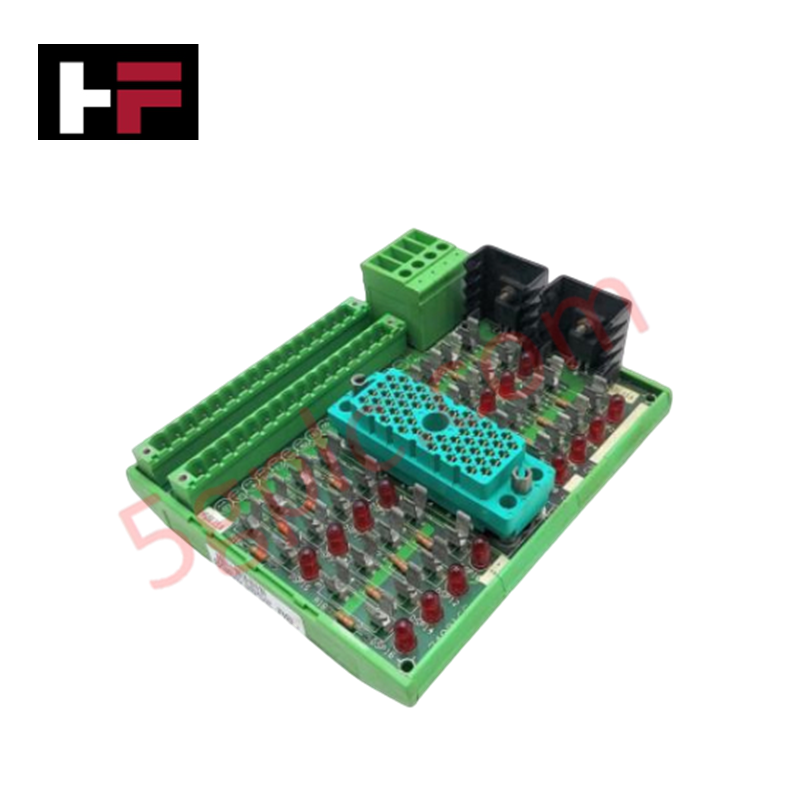

The Triconex 9761-210F (cataloged under model 9761-210) is a 16-channel current input termination module designed for high-integrity signal conditioning within industrial automation and safety systems. This module converts field current signals into 0-5 VDC analog voltage levels, providing redundant power distribution and precision signal conversion for Triconex analog input architectures.
Signal Conditioning and Interface Architecture
The module incorporates 16 current input terminals (-) and 16 power output terminals (+). Each input channel features an integrated precision 250-ohm resistor that converts field current signals into proportional 0-5 VDC inputs suitable for connected analog input modules. Additionally, each positive terminal includes a 180-ohm series resistor to protect and manage field power loops.
Power Distribution and Termination Panel Compatibility
Designed to support high system availability, the 9761-210F features dual 24 VDC power supply inputs with built-in diode ORing for redundant field power distribution. The module provides direct termination support for 0-5 VDC analog input modules, -5 to +5 VDC analog input modules, and HART analog input interface modules.
Specifications
| Parameter | Specification |
|---|---|
| Model | 9761-210F |
| Catalog Model | 9761-210 |
| Brand | Triconex |
| Product Type | Current Input Module |
| Channels | 16 input channels |
| Output Signal Range | 0-5 VDC |
| Current Conversion Resistor | Precision 250-ohm per channel |
| Series Resistor | 180-ohm on each positive (+) terminal |
| Input Terminals | 16 current input (-) terminals |
| Power Terminals | 16 power output (+) terminals |
| Power Supply | Redundant 24 VDC inputs with diode ORing |
| Termination Compatibility | 0-5 VDC, -5 to +5 VDC, and HART Analog Input Modules |
| Dimensions | 2.2 cm × 12.4 cm × 12.6 cm |
| Weight | 0.3 kg |
Frequently Asked Questions
Q: How does the Triconex 9761-210F convert field current signals for analog input modules?
A: Each channel utilizes an integrated precision 250-ohm resistor to convert incoming field current into a 0-5 VDC voltage signal for the connected analog input module.
Q: What power redundancy features are included on the 9761-210F module?
A: The module supports dual redundant 24 VDC power sources using diode ORing to maintain continuous power distribution to field transmitters.
