Product Details

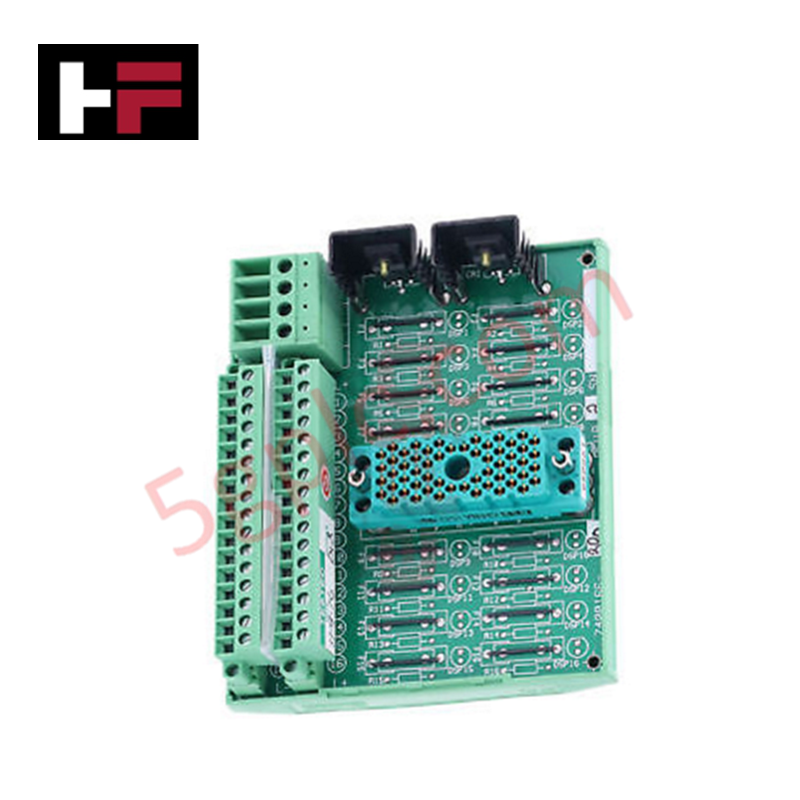

The Triconex 3000520-390, also cataloged as the 3000520-390 Communication Module, operates as a dedicated hardware component for data exchange between safety instrumented systems and external control networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3000520-390 |
| Brand | Triconex |
| Dimensions | Standard Tricon module form factor |
| Operating Temp | -40 deg C to 70 deg C |
| Power Consumption | < 20 W |
| Power Supply | 24 VDC |
| Communication Ports | 2 x Ethernet, 1 x RS-232, 1 x RS-485 |
Triple Modular Redundancy (TMR) Architectural Integration
The Triconex 3000520-390 is designed to integrate into the TMR 2oo3 architecture, providing high-integrity data paths for communication with non-safety control systems. The module maintains galvanic isolation between the field communication interface and the internal system backplane to prevent common-mode electrical noise from affecting the safety logic solver. To ensure operational continuity, the device supports fail-safe state execution; in the event of internal diagnostic failure or communication parity errors, the module isolates the fault to prevent transmission of corrupted data, ensuring that the primary safety function remains unaffected by external network conditions.
Frequently Asked Questions
Q: Does the 3000520-390 support hot-swapping during system operation?
A: Yes, the module is designed for hot-swapping in an active Tricon chassis. Upon installation, it performs internal power-on self-tests and initiates handshaking with the redundant processor set before resuming active communication duties.
Q: Are the Ethernet ports configured for high-speed operation?
A: The Ethernet ports are optimized for standard industrial communication protocols; refer to the system configuration software for specific data rate settings and network port mapping.
Field Installation Guidelines
- Ensure the module is properly oriented with the chassis slot and fully seated to guarantee secure engagement with the backplane connector.
- Tighten the front panel retaining screws to ensure proper grounding and mechanical stability against environmental vibration.
- Use shielded twisted-pair cabling for all Ethernet and serial connections to minimize electromagnetic interference (EMI).
- Terminate communication cable shields at the designated chassis grounding rail to maintain the integrity of the galvanic isolation.
- Verify cable connections are secured with appropriate strain relief to prevent mechanical stress on the RJ-45 and DB-9 connectors.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
