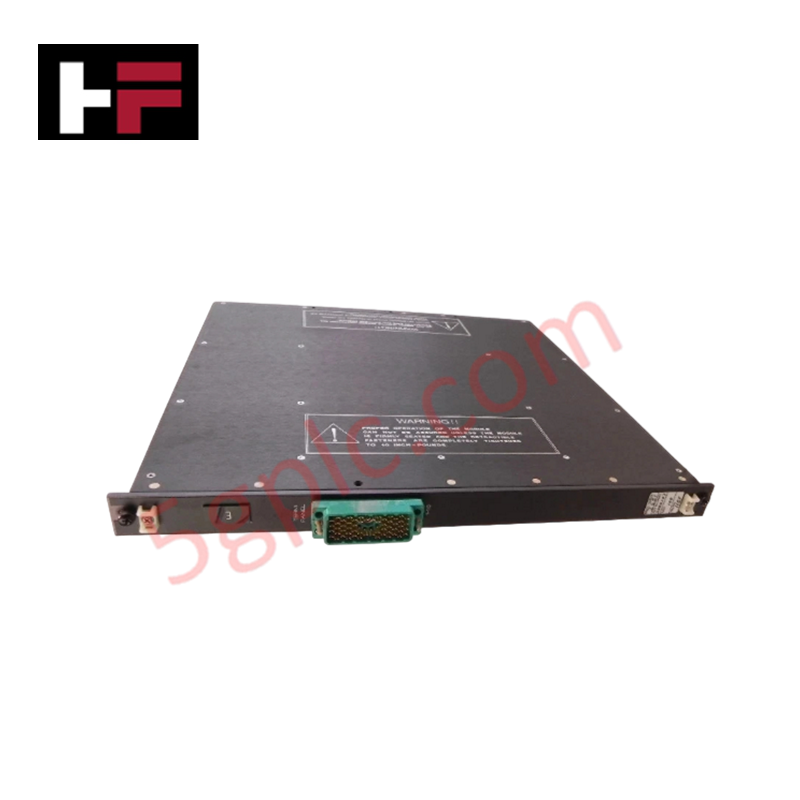

Triconex 2852 Analog Output Module
Triconex 2852 Analog Output Module
Triconex 2852 Analog Output Module

Triconex 2852 Analog Output Module


Only 10 left - Selling fast

PRODUCT SKU : 2852

PRODUCT TYPE : Analog Output Modules

PRODUCT VENDOR : Triconex


  • 100% Genuine Parts – Risk-Free 30-Day Returns
  • 1-Year Warranty & Expert Support for Every Order

Product Details

The Triconex 2852, also cataloged as the 2852 Analog Output Module, operates as a dedicated hardware component for precise analog output signal conditioning within fault-tolerant safety systems. Configured to drive final control elements such as modulating valves and variable speed drives, the unit converts digital system logic into isolated 4-20 mA or 0-10 VDC field control loops under continuous backplane operation.

Hardware Specifications

Parameter Specification
Model 2852
Brand Triconex
Origin Standard Manufacturing Facility
Weight 1.77 kg
Dimensions Standard Panel-Mount Chassis Enclosure
Operating Temp 0 deg C to +60 deg C
Power Consumption Powered via system backplane bus
Signal Type 4-20 mA / 0-10 VDC
Mounting Panel Mount
Channel Isolation Galvanic channel isolation

SIL3 Certification and Triple Modular Redundancy Architecture

Engineered for high-integrity safety applications, this analog output module supports SIL3 certification compliance by routing output commands across triple modular redundancy (TMR) 2oo3 architecture legs. Integrated galvanic isolation shields internal backplane processing logic from field-side electrical transients and cross-channel ground loop interference, maintaining fail-safe state execution across modulating control loops.

Frequently Asked Questions

Q: Does the 2852 analog output module support live replacement (hot-swapping) in an active chassis?

A: Yes, the module supports online hot-swapping, allowing extraction and installation without interrupting system operations or dropping secondary TMR legs.

Q: How does internal diagnostic monitoring operate on the 2852 output channels?

A: Onboard diagnostic circuits continuously track output signal fidelity, loop impedance, and response timing to detect channel drift or field wiring faults prior to loop failure.

Field Installation Guidelines

  • Ensure system power is completely disconnected before attempting to install or remove the module during cabinet maintenance.
  • Use appropriate ESD protection when handling the unit to prevent static damage to sensitive internal components.
  • Verify that the panel mounting surface is clean and provides adequate clearance for thermal dissipation within the 0 deg C to +60 deg C range.
  • Route signal cabling away from high-voltage power lines inside conduits to minimize induced electrical noise.
  • Confirm that all field wiring is properly terminated and shielded to maintain signal integrity across long distance loops.

Additional Information

  • 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
  • 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
  • 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
  • Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
  • Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
  • Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
