Product Details

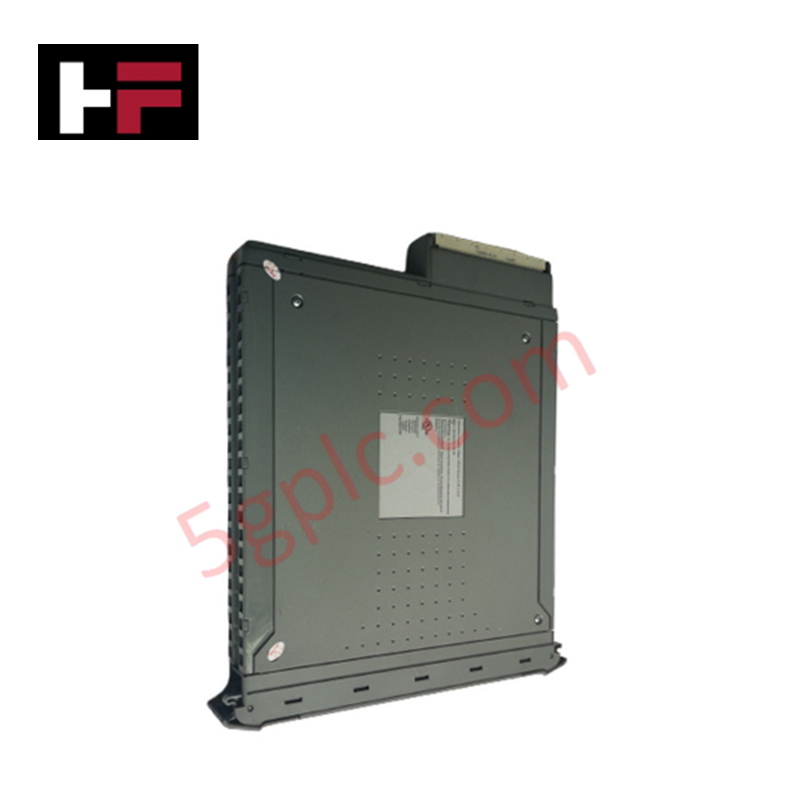

Configured for field signal interfacing and channel processing in Honeywell Experion PKS C300 systems, the Honeywell TK-IOL101 (TK-IOL101 I/O Module) provides direct physical/electrical execution. Operating on a 24 VDC backplane bus, the module routes discrete and analog process inputs/outputs between field termination assemblies and central controller logic rails. The card maintains signal conditioning paths for active channels, preventing transient overvoltage from disturbing real-time process control data loops.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TK-IOL101 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 2.00 kg |
| Dimensions | Standard C300 I/O module profile |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | 24 VDC backplane powered |
| Module Type | I/O Module |
| System Platform | Experion PKS C300 Series |
| Mounting | I/O Input Output Termination Assembly (IOTA) |
4-20 mA HART Loop Protocol & Channel-to-Channel Isolation
The TK-IOL101 provides physical signal routing channels optimized for 4-20 mA HART loop protocol field devices. Integrated internal filtering circuit networks enforce channel-to-channel isolation across individual signal pathways, suppressing common-mode line noise and high-frequency interference. This isolation structure prevents ground potential shifts on field loops from propagating back into the main backplane or corrupting analog measurement values on adjacent channels.
Frequently Asked Questions
Q: Can the TK-IOL101 module be removed or replaced while the C300 IOTA remains powered?
A: Live removal and insertion is supported when mounted on a compatible IOTA, provided extraction latches are released fully straight out to prevent connector pin deflection.
Q: How does the module handle backplane power distribution across connected channels?
A: Internal power distribution logic converts the primary 24 VDC backplane rail to regulated logic-level voltages while isolating field loop current paths from central processor circuits.
Field Installation Guidelines
- Align the rear edge connector of the TK-IOL101 module with the matching socket on the Experion C300 IOTA base.
- Press the card firmly until the locking mechanisms seat and click securely into the mounting assembly.
- Verify that all 4-20 mA field loop wiring shields connect to a single dedicated earth bus bar inside the termination cabinet.
- Separate low-voltage analog signal cables from high-voltage AC power distribution circuits within cabinet wireways.
