Product Details

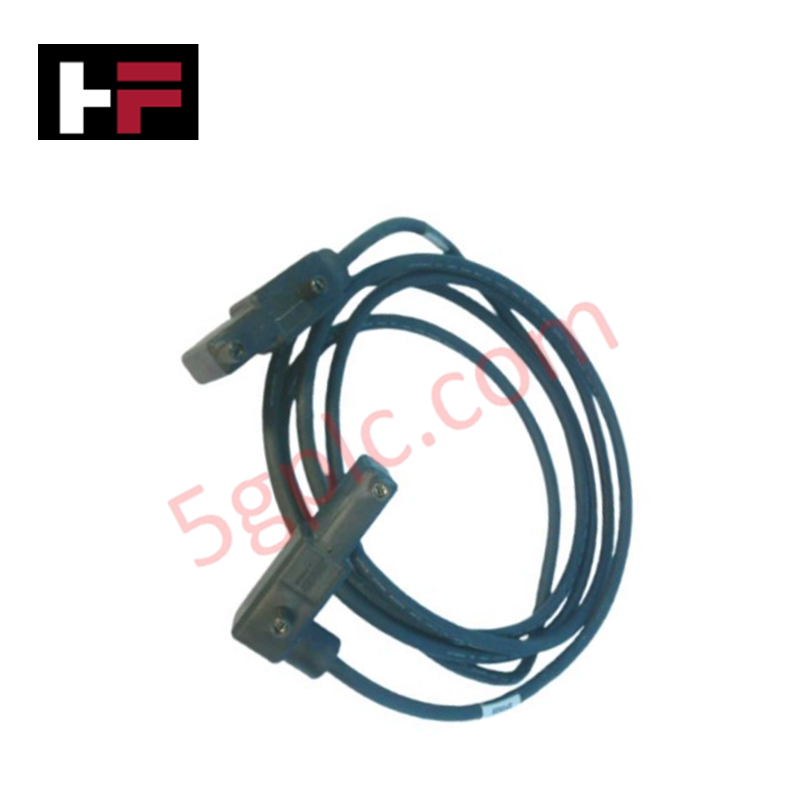

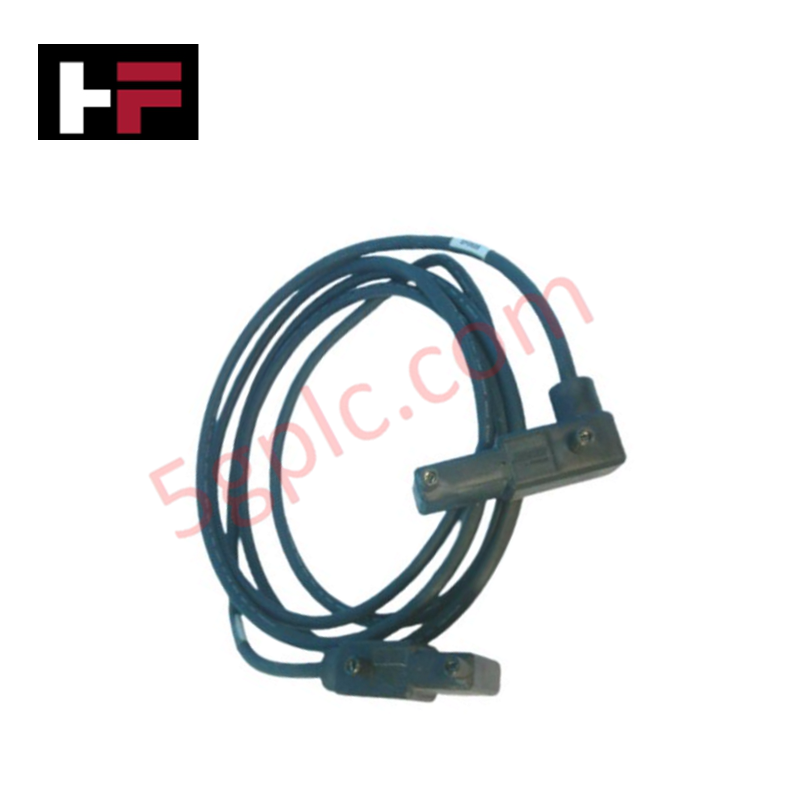

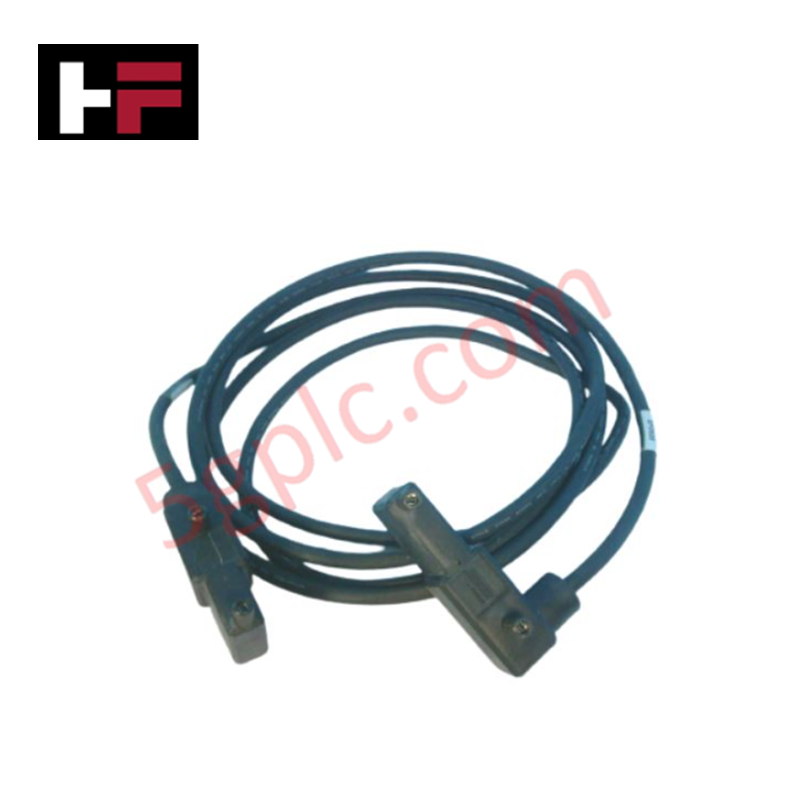

Configured for signal transmission and module interconnection within Foxboro distributed control architectures, the Foxboro P0916DD (P0916DD Termination Cable) provides direct physical/electrical execution for FBM2XX input/output subassemblies.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | P0916DD |
| Brand | Foxboro |
| Origin | Standard Industrial Manufacturing |
| Weight | 1.32 lbs (0.6 kg) |
| Dimensions | Length: 5 m |
| Operating Temp | -20 deg C to +70 deg C |
| Power Consumption | Passive component (0 W active dissipation) |
| Cable Type | Type 1 Termination Cable |
| System Compatibility | Foxboro FBM2XX Series Modules |
Signal Shielding & Loop Integrity
Operating within Foxboro I/O infrastructure, the cable ensures uncompromised signal transmission by utilizing dedicated internal shielding configurations to suppress electromagnetic interference (EMI) across analog and discrete loops. The physical pin-to-pin architecture maintains low loop resistance and minimizes crosstalk between adjacent signal channels. Proper grounding of the cable shield at the termination assembly chassis ground stud is mandatory to prevent ground loops and maintain common-mode rejection ratios across high-density FBM2xx deployments.
Frequently Asked Questions
Q: What is the minimum bending radius allowed for the P0916DD cable during field routing?
A: The minimum bending radius should not exceed 10 times the overall outer diameter of the cable bundle to prevent mechanical stress on internal conductor insulation and shielding meshes.
Q: Does the P0916DD termination cable support hot-swapping of connected FBM2XX modules?
A: While certain FBM2xx modules support hot-swapping under specific system power configurations, physical disconnection or connection of the P0916DD cable while system power is active on the termination assembly can cause transient voltage spikes or signal faults. System power must be isolated or channel configurations set to safe states prior to cable maintenance.
Field Installation Guidelines
- Ensure all power to the target FBM2XX module and terminal assembly is de-energized before handling the cable connectors.
- Align connector polarization keys carefully to prevent bent pins during insertion.
- Secure retaining screws or latch mechanisms to specified torque limits to withstand industrial vibration environments.
- Route the 5 m cable away from high-voltage power lines and variable frequency drive (VFD) output cables to minimize radiated noise interference.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
