Product Details

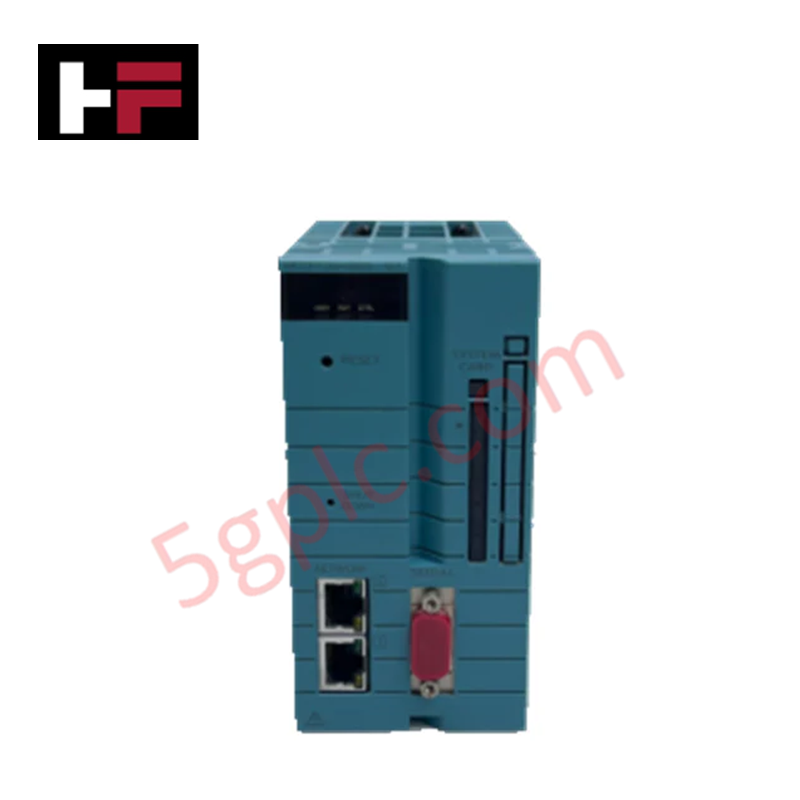

The Yokogawa NFCP501-W05, also cataloged as the NFCP501 CPU Module, operates as a dedicated hardware component for high-speed control logic processing and network communication within FCN autonomous controller platforms.
Suffix Breakdown & Model Matrix
- NFCP501: Base CPU module for FCN controller base unit featuring 2 Ethernet ports.
- -W: Integrated serial communication extended functions code.
- 0: Standard type execution code.
- 5: Basic type hardware code with no explosion protection.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | NFCP501-W05 |
| Brand | Yokogawa |
| Origin | Japan |
| Operating Temp | -20 to +70 deg C (Standard industrial operating range) |
| Power Consumption | Unspecified (Powered via FCN backplane bus) |
| Processor Architecture | FCN Central Processing Unit |
| Network Interface | 2x Ethernet ports |
| Serial Interface | Supported via -W extended functions option |
| System Bus | Internal SB bus backplane connectivity |
Process Control & Communication Characteristics
The NFCP501-W05 controller module executes real-time control algorithms while routing network data traffic through its dual Ethernet ports and extended serial interface option (-W). Digital-to-analog and field communication pathways are isolated across the SB bus backplane to preserve signal integrity against ground loop noise and EMI interference. Integrated channel-to-channel isolation safeguards controller logic during field bus transmitter polling and 4-20 mA HART loop protocol gateway conversions.
Frequently Asked Questions
Q: How many Ethernet communication ports are provided on the NFCP501-W05 module base hardware?
A: The NFCP501 base hardware platform incorporates 2 physical Ethernet interfaces for network connectivity.
Q: What functionality is designated by the -W suffix code in the NFCP501-W05 model number?
A: The -W suffix code indicates the inclusion of integrated extended function serial communications capabilities.
Q: Is the NFCP501-W05 module rated for hazardous area explosion protection?
A: No, the option code 5 designates a basic hardware execution type without explosion protection ratings.
Field Installation Guidelines
- Backplane Insertion: Verify system power is isolated prior to seating the CPU module into the dedicated controller slot on the FCN base unit. Ensure retaining screws are torque-tightened to lock the backplane interface.
- Ethernet Cabling & Shielding: Connect category-rated industrial shielded Ethernet cables to the network ports. Route signal and communication lines separately from high-voltage AC power conductors to avoid electromagnetic noise coupling.
- Cabinet Earthing: Attach the main enclosure frame to a functional protective earth bar using low-impedance grounding straps before applying power to the FCN base rack.
