Product Details

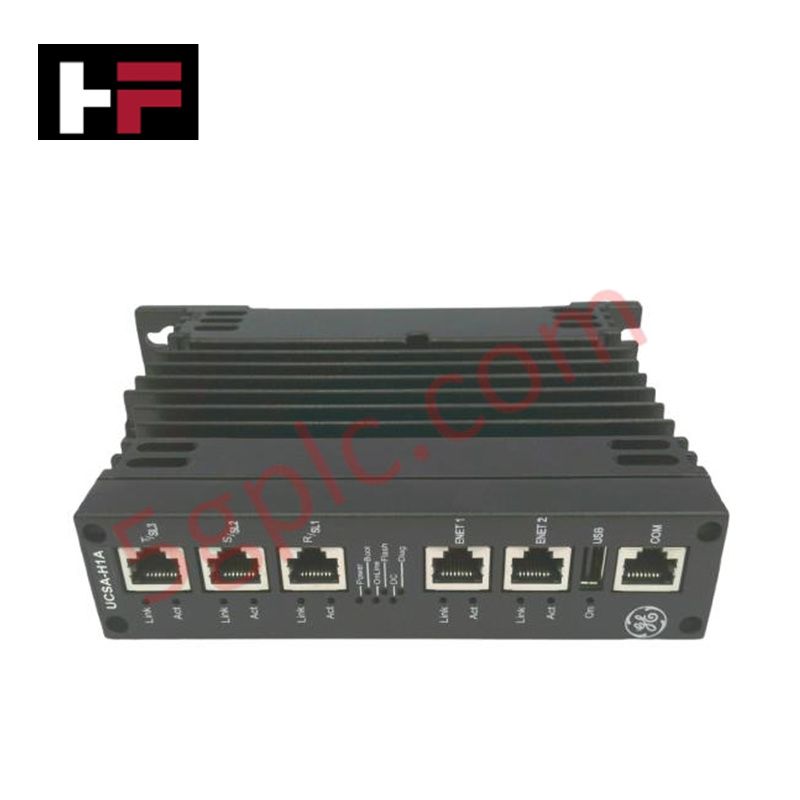

Configured for high-speed multitasking execution in Mark VIe control systems, the GE IS220UCSAH1A (IS220UCSAH1A Embedded Controller) provides direct physical execution of application logic and IONet communication. This hardware component serves as the primary UCSA controller utilized to execute real-time processing and I/O network management across distributed turbine control platform architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS220UCSAH1A |
| Brand | GE |
| Origin | USA |
| Weight | 2 lbs |
| Dimensions | Standard controller form factor |
| Operating Temp | Standard industrial ambient range |
| Power Consumption | +18 V dc to +32 V dc |
| Core Performance | Freescale Power QUICC II PRO 667 MHz; 256 MB DDR SDRAM |
Backplane Bus Communication and Deterministic Networks
The IS220UCSAH1A utilizes an embedded Power PC architecture running the QNX Neutrino real-time operating system to ensure deterministic task execution. The controller manages I/O data acquisition via private IONet (I/O Network) Ethernet interfaces, which are dedicated strictly to communication between the controller and linked I/O packs. Firmware flash compatibility is governed by the ControlST software suite, ensuring that the multitasking OS environment remains synchronized with system-level control strategies. The module supports I/O density scaling through structured network expansion, though users must note that processor throughput limits apply to high-complexity, model-based control applications. Deterministic performance is maintained by isolating the I/O network traffic from plant-level communication paths.
Frequently Asked Questions
Q: Is the IS220UCSAH1A compatible with high-end model-based control applications?
A: No. While suitable for balance of plant and general turbine control, the UCSA controller platform has limited processing resources compared to dedicated advanced control modules and may not support compute-intensive model-based algorithms.
Q: Can this controller be hot-swapped during operation?
A: In redundant configurations, controllers can be managed, but individual module removal requires strict adherence to system-level maintenance procedures to prevent I/O network communication loss. Always verify the controller status via ControlST before removal.
Field Installation Guidelines
- Mounting: Secure the controller module within the designated panel slot. Ensure the IONet Ethernet connections are fully seated in the appropriate ports to maintain a dedicated, noise-free network path.
- Powering: Connect the module to a stable +18 V dc to +32 V dc power source. Ensure voltage ripples are minimized to prevent resets of the QNX-based operating system.
- Grounding: Ensure the controller chassis is bonded to the cabinet ground bus. Proper grounding is necessary to protect the internal Power PC microprocessor and DDR memory from electromagnetic discharge.
- Networking: Use high-quality shielded Ethernet cabling for all IONet segments. Ensure that the network topology follows GE's private network guidelines to prevent packet collisions and maintain the deterministic timing required for I/O pack scanning.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
