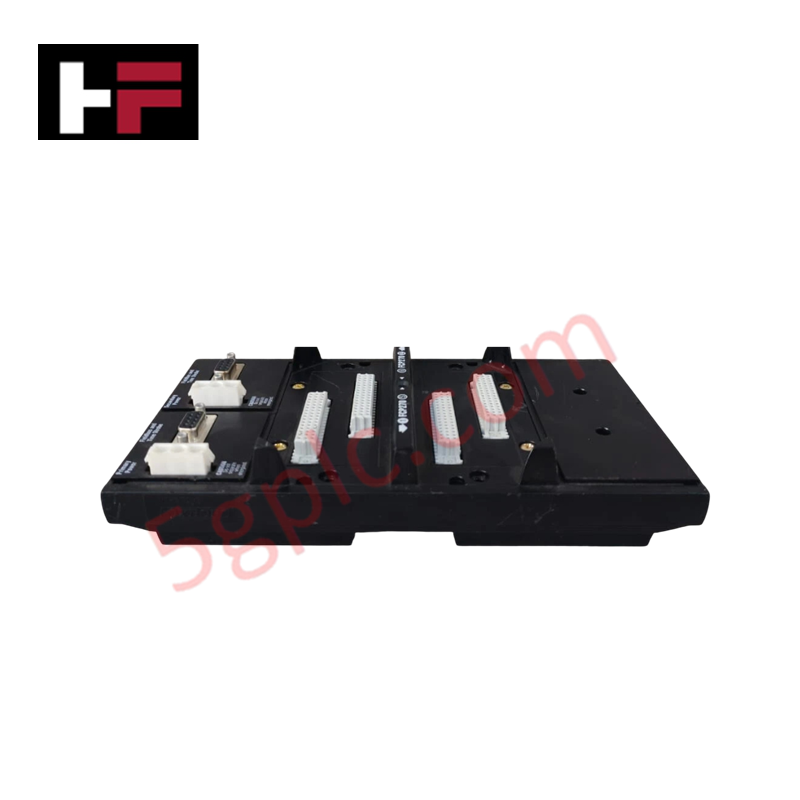

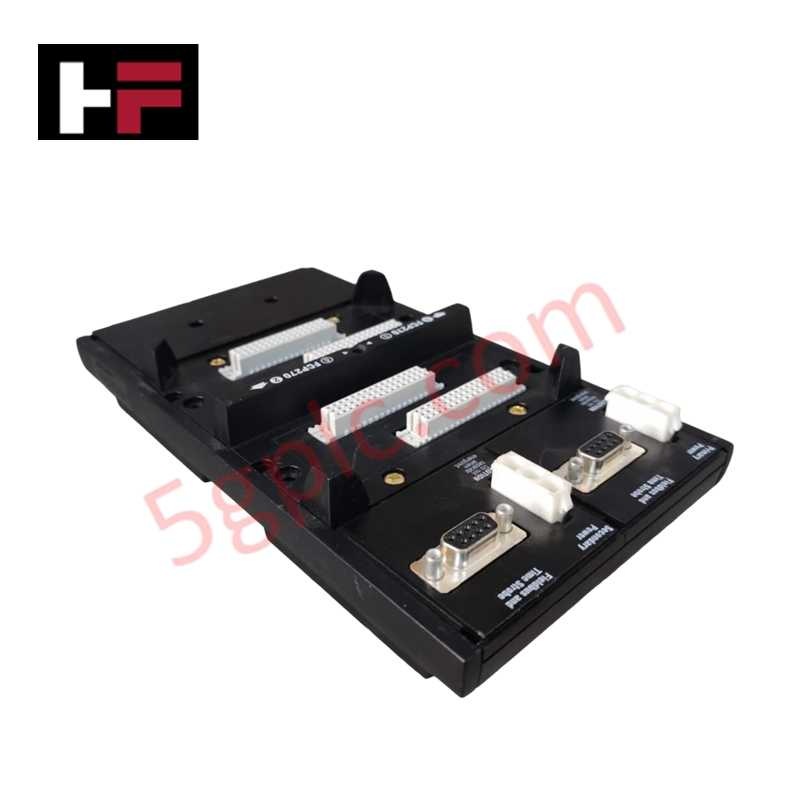

Invensys Foxboro P0926HW Fieldbus Plate

The Invensys Foxboro P0926HW, also cataloged as the P0926HW Input Module, operates as a dedicated hardware component for 4-channel discrete input signal acquisition at 24 VDC within Foxboro distributed control systems. Configured to interface directly with industrial field devices, it processes low-level switching states and transmits digitized logic back to the central controller backplane.

Suffix Breakdown & Model Matrix

• P0926HW: Primary manufacturer part identifier and catalog designation for the 4-channel 24 VDC input module assembly.

Hardware Specifications

4-20 mA HART Loop Protocol and Isolation

While functioning primarily as a discrete 24 VDC input module, the unit integrates smoothly into architectures that coexist alongside 4-20 mA HART loop protocol loops andFOUNDATION Fieldbus / Profibus PA connectivity lines. Robust channel-to-channel isolation and galvanic protection barriers prevent external common-mode voltage surges or inductive kickback from adjacent analog loops from corrupting discrete logic states or damaging internal backplane components.

Frequently Asked Questions

Q: Does the P0926HW input module support hot-swapping on active baseplates?

A: Hot-insertion capability depends on the specific system cabinet power policy; always verify local safety procedures and de-energize module power prior to extraction.

Q: What is the nominal input voltage rating for the discrete channels?

A: Each of the 4 input channels is rated for standard 24 VDC industrial logic signals.

Q: Are there specific shielding requirements for field input wiring?

A: Yes, field wiring should use twisted-pair shielded cables with the shield grounded at a designated cabinet earth bar to mitigate electromagnetic interference.

Field Installation Guidelines

Ensure the target baseplate slot is clean and free of particulate debris prior to module seating. Align the module housing carefully with the backplane guide rails to prevent bending interface pins during insertion. Secure all retention screws firmly and verify that field input wiring is terminated securely to the correct terminal blocks while maintaining proper cable strain relief.
