Product Details

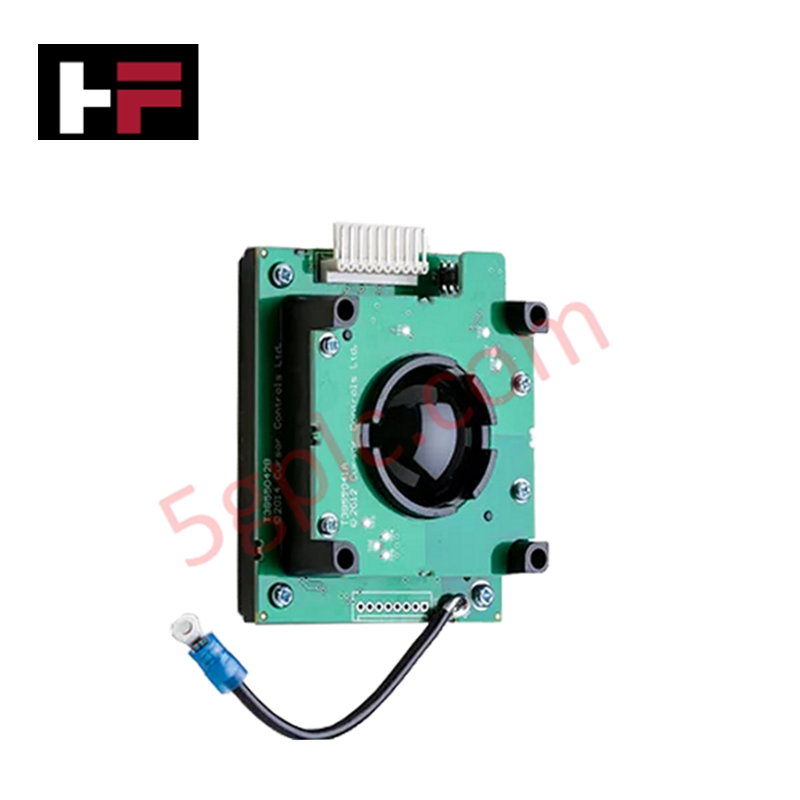

The Honeywell 51196694-901, also cataloged as the 51196694 Trackball Assembly, operates as a dedicated hardware component for human-machine operator interface navigation and cursor position execution within Honeywell TDC 3000 and Experion PKS operator consoles.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51196694-901 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 1.0 kg (Shipping Weight) |
| Dimensions | Standard Operator Console Panel Cutout |
| Operating Temp | 0 deg C to 50 deg C |
| Power Consumption | Powered via operator console interface bus |
| System Compatibility | Honeywell Universal Station / Experion Operator Consoles |
| Input Device Type | Industrial Trackball Pointer |
| Interface Type | Dedicated Console Bus / Serial Connection |
Operator Console Interface and Signal Integrity
Designed for continuous human-machine interaction on Honeywell DCS operator stations, the assembly translates mechanical ball rotation into incremental quadrature pulses or serial data packets. Channel-to-channel isolation on the internal interface PCB isolates low-voltage encoder circuitry from potential ESD spikes across the operator console chassis. This design prevents ground loops and electrical transient coupling into adjacent keyboard modules, 4-20 mA HART operator displays, or high-speed station bus communications during station operation.
Frequently Asked Questions
Q: How is power provided to the 51196694-901 trackball assembly?
A: Power is supplied directly through the operator console internal interface cable from the host station electronics backplane.
Q: What maintenance is recommended to prevent pointer drift or signal hesitation?
A: Periodic mechanical cleaning of the encoder rollers and optical sensors inside the trackball housing removes dust accumulation without requiring electrical recalibration.
Q: Can this unit be swapped while the operator console is powered on?
A: Physical replacement should follow Honeywell operator station servicing guidelines; powered hot-swapping depends on the specific console bus interface board connected to the assembly.
Field Installation Guidelines
- Mount the assembly into the operator panel cutout, ensuring a uniform seating seal to protect internal electronics against dust ingress.
- Route the interface ribbon/serial cable away from high-voltage AC wiring or panel power supplies to maintain signal integrity.
- Connect the chassis grounding conductor from the trackball housing to the console panel frame ground to prevent static electricity discharge damage.
- Inspect encoder connector pins for proper orientation before locking the wire harness into place.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
