Product Details

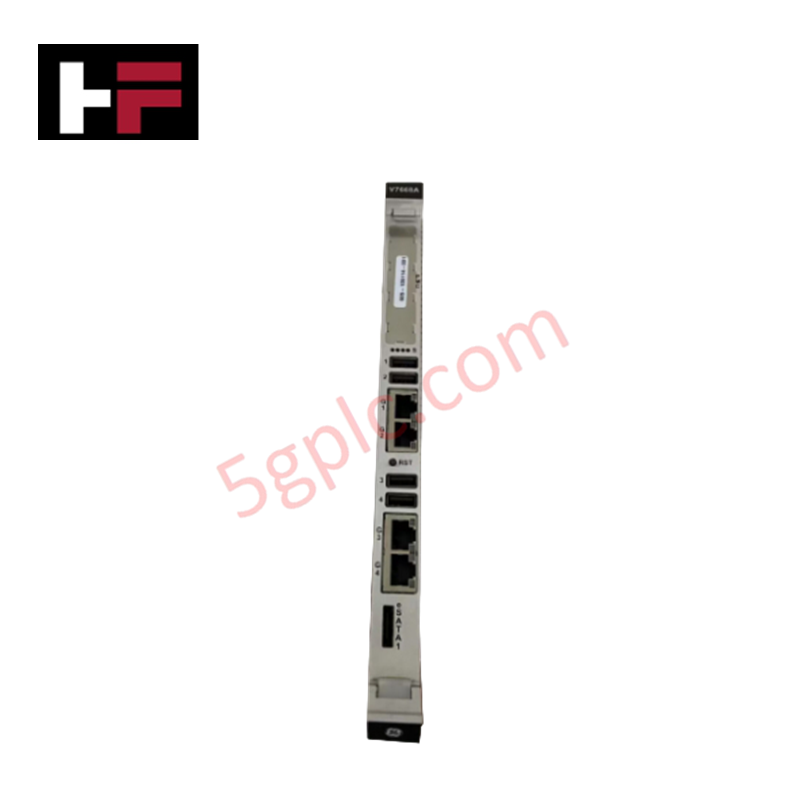

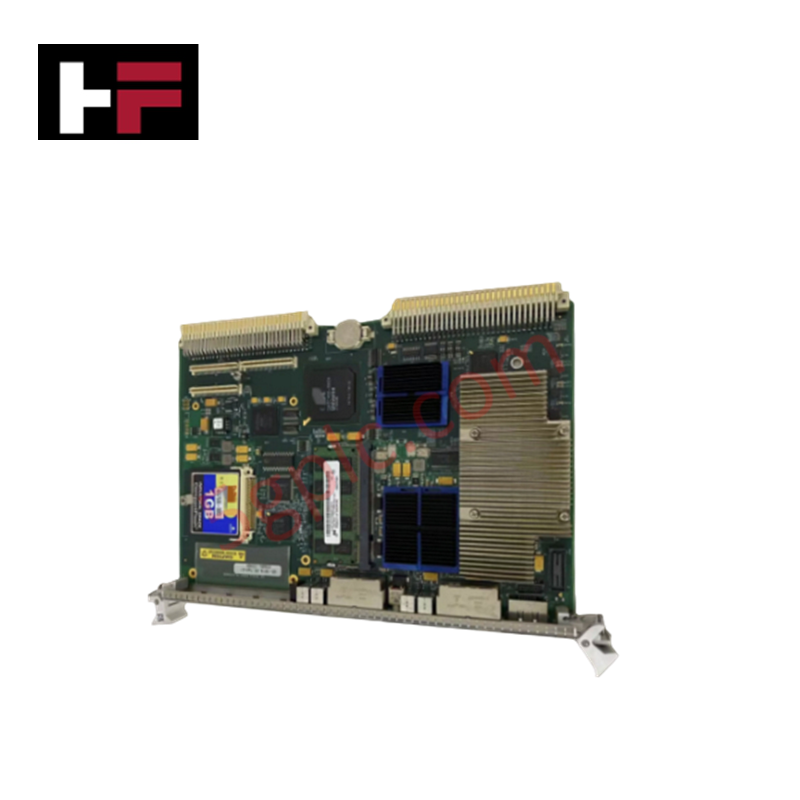

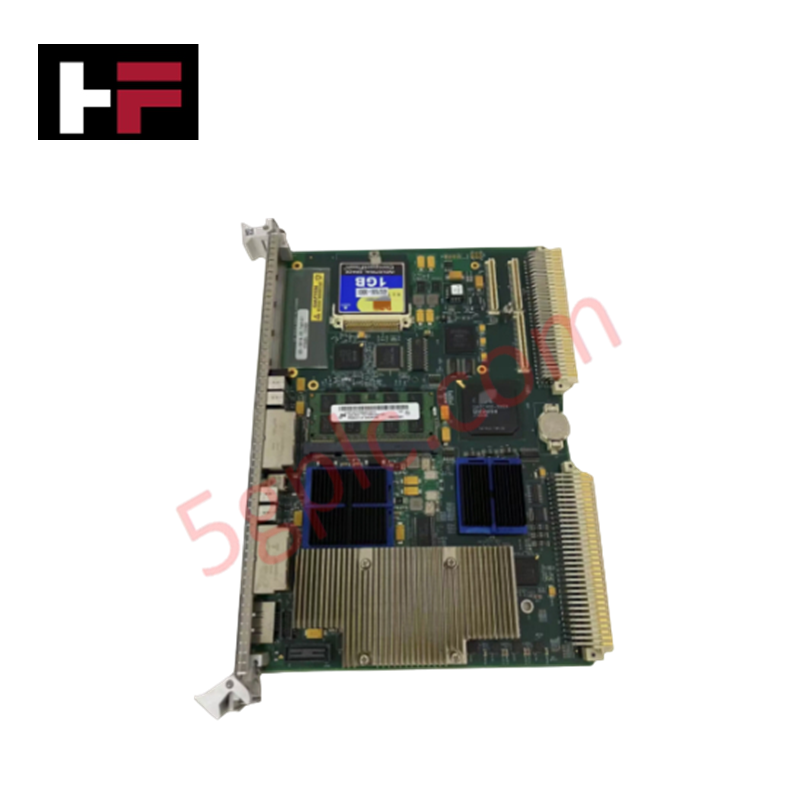

Configured for high-speed computation and board-level system integration in embedded computing platforms, the General Electric V7668A-131000 (V7668A Mainboard) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | V7668A-131000 (Part Number: 605-109114-001) |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.3 kg |
| Dimensions | 10.25 cm x 8.2 cm x 7.2 cm |
| Operating Temp | Standard industrial range |
| Power Consumption | Standard backplane power draw |
| Processor | T7400 Intel Core 2 Duo Mobile |
| Processor Speed | 2.167 GHz |
| SODIMM Memory | 2 GB |
| Soldered Memory | 512 MB |
| CompactFlash Storage | 1 GB |
| Expansion Slots | 1 PMC Slot |
Backplane Bus Communication & Firmware Flash Execution
The board leverages an Intel Core 2 Duo T7400 processor running at 2.167 GHz to achieve maximum processing throughput across backplane bus communication structures. Onboard memory architecture consists of 512 MB soldered RAM combined with a 2 GB SODIMM module to maintain low-latency data access during execution cycles.
Internal firmware flash compatibility and non-volatile storage are managed via an onboard 1 GB CompactFlash slot, allowing system boot routines and real-time operating systems to launch directly at board level. Expansion mezzanine capabilities are enabled via a single PCI Mezzanine Card (PMC) slot, accommodating specialized I/O density scaling without increasing the primary card slot footprint.
Frequently Asked Questions
Q: What memory architecture and expansion options are physically integrated into the board?
A: The mainboard incorporates 512 MB of onboard soldered memory, a 2 GB SODIMM socket, a 1 GB CompactFlash socket for boot storage, and 1 PMC slot for custom mezzanine expansion modules.
Q: How does the processing unit interface with system firmware flash memory?
A: The 2.167 GHz Intel Core 2 Duo processor executes initial boot code directly from onboard flash memory and loads system images directly from the integrated 1 GB CompactFlash card.
Q: Can PMC expansion modules be connected or replaced while the mainboard is energized?
A: No. Power to the primary rack enclosure must be fully isolated prior to seating or unseating any mezzanine card in the PMC slot to prevent physical circuit damage.
Field Installation Guidelines
- Power Isolation: Ensure all primary and auxiliary power sources to the host rack enclosure are completely switched off before installing or removing the board assembly.
- ESD Protection: Wear a grounded electro-static discharge (ESD) wrist strap connected to the metal chassis ground before touching the mainboard surface or components.
- Mezzanine Assembly: If utilizing a PMC expansion card, secure the mezzanine card to the PMC slot using the specified mounting standoffs prior to inserting the mainboard into the system rack.
- Card Slot Insertion: Align the mainboard edge connectors carefully along the enclosure card guide rails, pushing evenly until the assembly fully seats into the backplane connectors.
- Mechanical Fastening: Hand-tighten top and bottom faceplate retaining screws to lock the card in place and ensure frame-ground continuity across the metal panel.
