Product Details

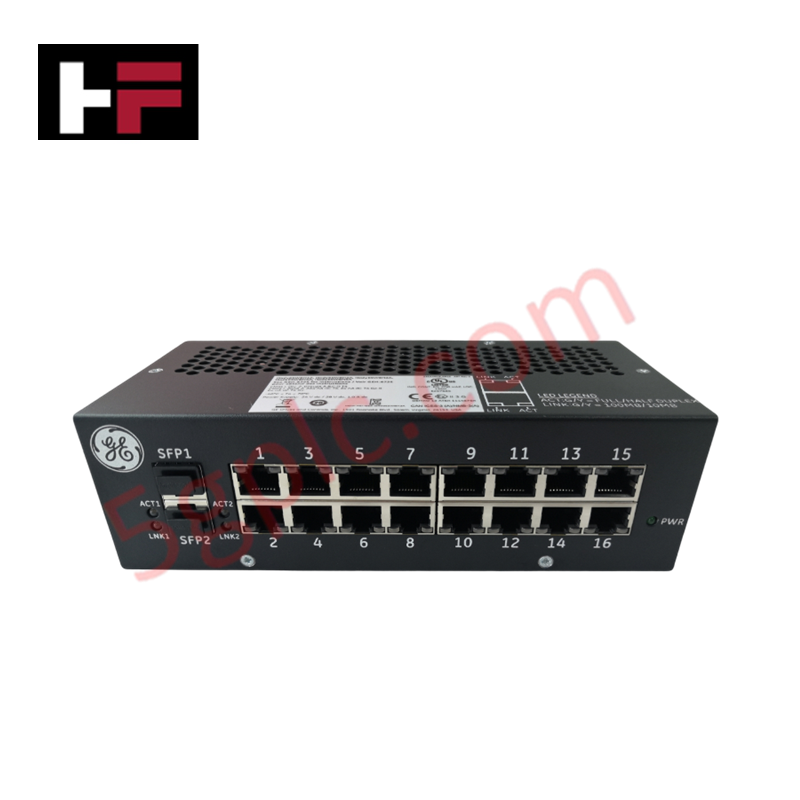

Configured for high-density data routing in Mark VIe control networks, the GE IS420ESWBH3AE (IS420ESWBH3AE 16-Port 10/100 Base Ethernet IONet Switch) provides direct physical and electrical execution of deterministic data exchange between I/O packs and controllers.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS420ESWBH3AE |
| Brand | General Electric |
| Origin | USA |
| Weight | 2 lbs (0.91 kg) |
| Dimensions | 138 x 86 x 56 mm |
| Operating Temp | Industrial rated range |
| Power Consumption | 18-32 VDC |
| Ports | 16 (10/100 Base-T) |
| Memory | 256 MB DDR SDRAM |
| OS | QNX Neutrino |
Profinet / EtherNet/IP Deterministic Networks
The IS420ESWBH3AE operates as a high-speed switching node designed to maintain backplane bus communication velocity across the IONet infrastructure. By utilizing the QNX Neutrino operating system, the switch ensures low-latency packet delivery, minimizing jitter for time-critical turbine control data. The unit supports I/O density scaling, allowing for the connection of multiple I/O packs and controllers within a single IONet segment. Firmware flash compatibility is managed via the ControlST software suite, ensuring that the switch remains synchronized with the broader Mark VIe control architecture. The switch provides deterministic performance required for high-availability turbine monitoring, protecting against packet collisions and broadcast storms that could degrade network throughput.
Frequently Asked Questions
Q: Is this switch configurable through standard web-based management?
A: No. The IS420ESWBH3AE is designed for integration into the Mark VIe system and is managed primarily through the ControlST software suite (V04.03.18C) rather than standard commercial web interfaces.
Q: Does the switch support hot-swapping under power?
A: While the unit is designed for industrial DIN-rail mounting, internal network topology may be affected by power cycles. It is recommended to verify network stability and IONet health via the ControlST suite before removing or replacing the switch during active control operations.
Field Installation Guidelines
- Mounting: Secure the IS420ESWBH3AE onto a 35 mm DIN rail within the control cabinet. Ensure adequate airflow around the 138 x 86 x 56 mm footprint to prevent thermal buildup.
- Wiring: Connect the 18-32 VDC input power to the primary power terminal. Use shielded twisted-pair (STP) Ethernet cabling to minimize electromagnetic interference across all 16 ports.
- Grounding: Ensure the switch chassis is bonded to the cabinet's common ground to maintain shield integrity and reduce potential noise coupling into the high-speed Ethernet signals.
- Integration: Connect the switch to the Mark VIe IONet infrastructure. Use ControlST (V04.03.18C) to perform initial diagnostic checks and verify port connectivity and link status.
- Environment: Maintain relative humidity between 5% and 95% (non-condensing). Keep the cabinet environment free from conductive dust or high-humidity conditions to ensure the reliability of the internal SDRAM and Ethernet components.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
