Product Details

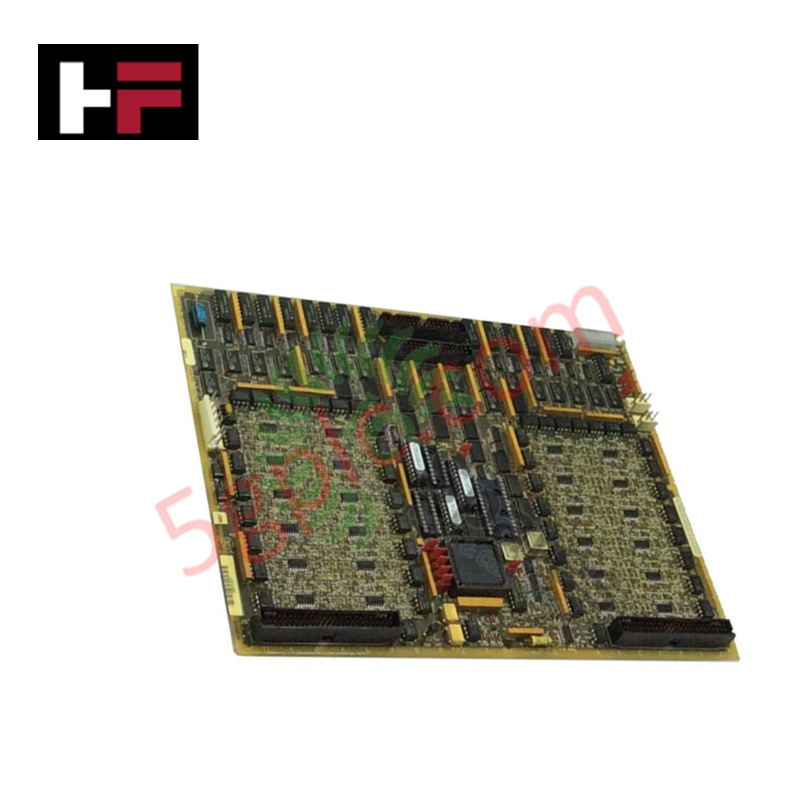

The General Electric DS200TCDAG1A, also cataloged as the DS200TCDA Digital I/O Board, operates as a dedicated hardware component for digital signal processing and I/O core communication within Mark V LM control platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200TCDAG1A |
| Brand | General Electric |
| Origin | USA |
| Dimensions | Standard Mark V PCB footprint |
| Operating Temp | Per Mark V environmental standards |
| Power Consumption | Distributed via TCPS board (JP connector) |
| Core Placement | Q11, Q21, or Q51 digital I/O cores |
| Communication | IONET serial interface |
Profinet / EtherNet/IP Deterministic Networks and IONET Compatibility
The DS200TCDAG1A interfaces with the IONET (I/O Network) to facilitate deterministic data exchange between the I/O engine and digital cores. The board processes contact output signals for relay/solenoid actuation and accepts digital input signals from terminal boards such as DTBA and DTBB. System architecture requires firmware flash compatibility between the TCDA board and the host controller to ensure synchronized data routing across the I/O network. Deterministic timing is maintained through address-specific data packets directed to the designated core (Q11, Q21, or Q51), with signal propagation confirmed via the backplane interface to the CTBA or TCQC modules.
Frequently Asked Questions
Q: Are the TCDA connectors JP, JQ, JR, JO1, and JO2 interchangeable?
A: No. Each connector has a specific function: JP handles power distribution, JQ and JR interface with DTBA/DTBB terminal boards for input signals, and JO1/JO2 route relay/solenoid output signals to the TCRA board. Improper connection will result in system faults.
Q: Is the TCDA board utilized in all digital I/O cores?
A: The board is designed for placement in Q11, Q21, and Q51 cores. Note that connector JO1 is not utilized in Q11, as the TCQE board in R1 performs the relay control function for that location.
Field Installation Guidelines
- Mounting: Ensure the board is correctly seated in the designated core (Q11, Q21, or Q51). Verify that the card locks are engaged to prevent vibration-induced disconnection from the backplane.
- Connector Integrity: Use only the designated cables for JQ and JR connections to ensure proper signal path continuity from the terminal boards.
- Grounding: Ensure the chassis ground connection is solid to protect the low-voltage IONET signal paths from electromagnetic interference.
- Wiring: Verify that ribbon cables are routed cleanly and not subjected to tension. When disconnecting, handle connectors by the housing to prevent pin bending.
- Firmware Verification: After installation, confirm that the system software acknowledges the TCDA board within the designated digital I/O core to ensure the IONET communication handshake is successfully established.
