Product Details

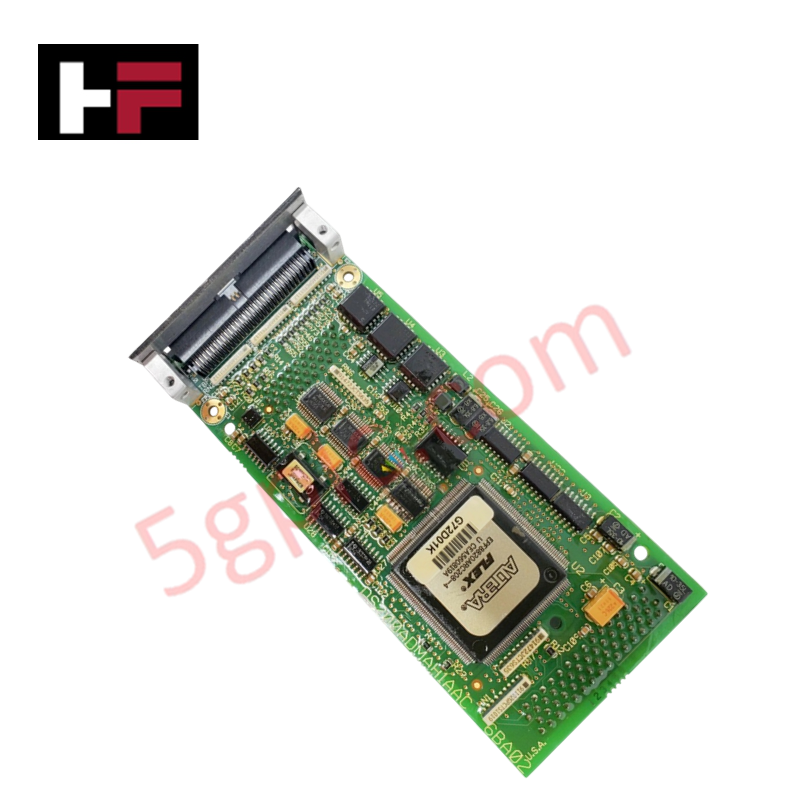

Configured for high-speed signal conversion in Mark V control platforms, the General Electric DS200ADMAH1A (DS200ADMA Analog to Digital Module) provides direct physical/electrical execution for analog and digital I/O buffering.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200ADMAH1A |
| Brand | General Electric |
| Origin | USA |
| Dimensions | Daughterboard form factor (DSPC mount) |
| Operating Temp | Per Mark V environmental standards |
| Power Consumption | Derived from DSPC backplane |
| Analog Inputs | 12 additional channels |
| Analog Outputs | 4 channels |
| Digital I/O | 8 ports |
Profinet / EtherNet/IP Deterministic Networks and Firmware Compatibility
The DS200ADMAH1A functions as a signal interface bridge, utilizing an onboard programmable logic device to manage data transit between the ADMA I/O circuitry and the DSPC processor buses. This architecture requires strict firmware flash compatibility to ensure the static RAM mapping correctly handles the multiplexed analog and digital signals. Data throughput across the processor bus must adhere to system-defined deterministic timing; discrepancies between the daughterboard logic and the host DSPC firmware will manifest as bus communication failures, indicated by the state of the onboard FAIL LED.
Frequently Asked Questions
Q: What do the onboard LED indicators signify?
A: The green IMOK LED confirms that the board's internal power and basic logic are operational. The red FAIL LED indicates a detected malfunction or communication error between the ADMA module and the host DSPC processor bus.
Q: Can this board be mounted on any GE drive controller?
A: The board is designed specifically for mounting on the DSPC (Drive Control) board series via the provided aluminum faceplate and mounting cutouts. Verify DSPC hardware revision compatibility prior to physical installation.
Field Installation Guidelines
- Mechanical Mounting: Ensure the aluminum faceplate is aligned correctly with the DSPC board mounting points. Verify that all standoffs are secured to prevent mechanical stress on the daughterboard interface connector.
- Signal Grounding: Ensure the module maintains a robust electrical connection to the DSPC board chassis, as the analog input/output circuits rely on this common reference for noise rejection.
- Wiring Verification: When connecting external analog signals to the additional 12 input channels, utilize shielded twisted-pair cabling. Terminate shields at the cabinet entry point to prevent ground loops.
- Insertion Procedure: Power down the Mark V drive system entirely before mating the daughterboard to the DSPC connector. Ensure the connector pins are fully seated and free of oxidation or debris to prevent intermittent signal degradation.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
