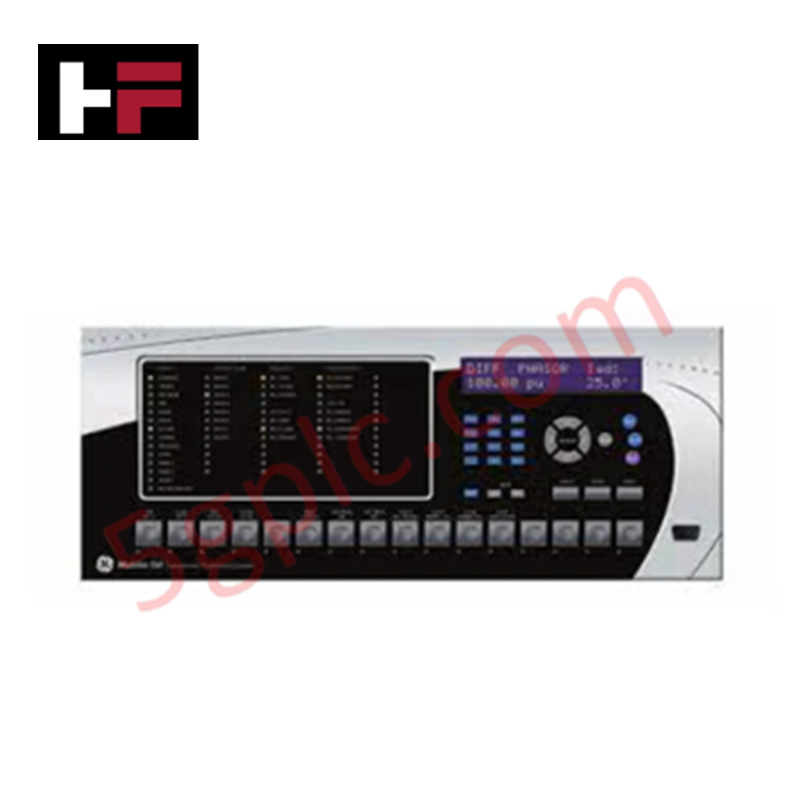

GE T35E00HCHF8GH6NM6NPXXUXXWXX Multilin T35 Transformer Protection System

Configured for high-speed differential protective profiling in electrical substation networks, the GE T35E00HCHF8GH6NM6NPXXUXXWXX (T35 Transformer Protection System) provides direct physical/electrical execution. The hardware reads structural input variables from dedicated 4CT/4VT modules while managing differential calculations and fault detection logic for transformers and small bus zone configurations. It routes real-time diagnostic parameters via multi-port 100BaseFX fiber channels and serial interfaces, maintaining physical control over high-density Form-C switching nodes and transducer current loops.

Hardware Specifications

Firmware Flash Compatibility and Deterministic Signal Processing

The CPU architecture governs synchronous execution across all populated input and output slots, maintaining strict firmware flash compatibility across active protection blocks. The three multimode SFP LC 100BaseFX ports execute deterministic message delivery under high communication traffic conditions. This real-time separation ensures that background security auditing through the CyberSentry firmware engine does not create timing jitter within the core 4CT/4VT signal processing bus or affect the sub-cycle trip latency of the 8 Fast Form-C outputs.

Frequently Asked Questions

Q: Can the 4CT/4VT DSP module or the digital I/O cards be extracted or inserted while the 125/250 V AC/DC power supply is active?

A: No. The internal backplane power architecture is not designed for hot-swapping. Auxiliary power must be completely isolated from the chassis prior to pulling or installing any module to prevent component damage or accidental contact closure.

Q: How is the firmware version 7.x compatibility enforced across the communication channels?

A: The microprocessor validates the module hardware configuration against the loaded firmware flash image at system initialization. If any communication port or software layer conflicts with version 7.x parameters, the relay locks into a safe diagnostic fault mode until the configuration is corrected.

Field Installation Guidelines

• Chassis Grounding: Fasten a low-impedance copper earthing conductor from the rear panel grounding terminal directly to the station primary ground bus bar.
• CT Circuit Isolation: Always short-circuit the secondary loops of the 4CT input channels using external shorting blocks before removing any terminal block assemblies to prevent high-voltage arcing.
• Fiber Optic Handling: Adhere to the minimum bend radius tolerances for the three multimode SFP LC 100BaseFX lines and the 820 nm inter-relay channel to avoid signal degradation or internal glass fracture.
