Product Details

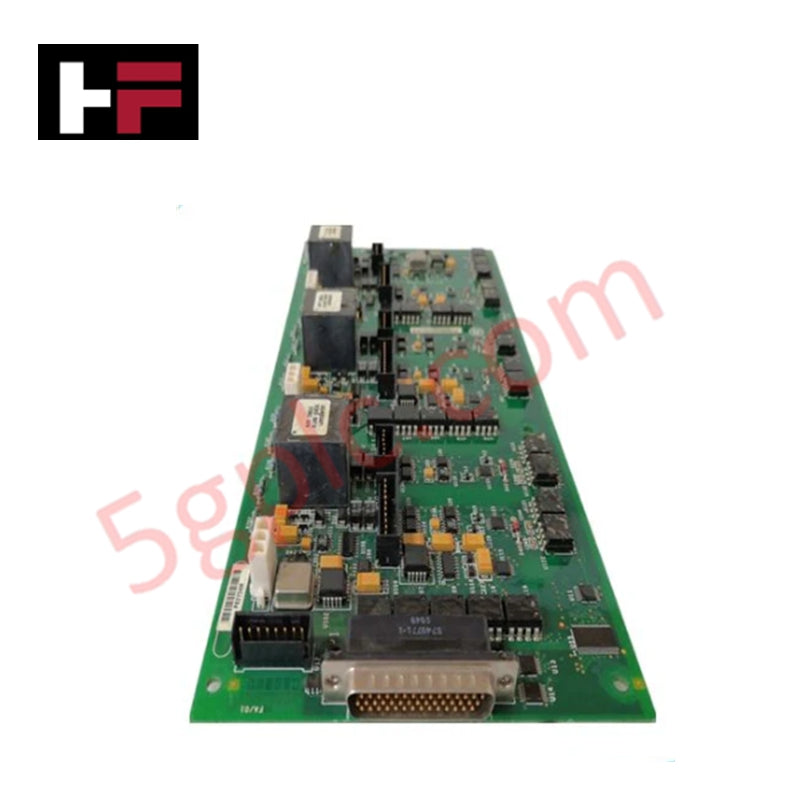

The GE IS210AEAAH1BJD, also cataloged as the IS210AEAAH1 Conformal Coated PCB, operates as a dedicated hardware component for internal signal processing and circuit isolation within GE Mark VIe Wind turbine control platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS210AEAAH1BJD |
| Brand | GE |
| Origin | USA |
| Functional Acronym | AEAA |
| Product Type | Conformal Coated Printed Circuit Board |
| Board Coating | Conformal Coating (environmental protection) |
| Functional Revision | B |
| Controller Platform | Mark VIe Wind Series |
| Dimensions | Standard Mark VIe PCB slot profile |
| Weight | Standard assembly weight |
| Operating Temp | -30 to 65 deg C |
| Power Consumption | System backplane bus dependent |
Deterministic Networks & Firmware Flash Compatibility
The printed circuit board assembly integrates directly with the Mark VIe control backplane, maintaining deterministic bus communication rates across operational cycles. High-grade conformal coating isolates surface-mounted components and conductive traces from airborne contaminants and humidity. Onboard hardware traces support real-time sensor processing and logic execution while preserving firmware flash compatibility for coordinated system diagnostics.
Frequently Asked Questions
Q: What physical protection does the conformal coating layer provide?
A: The conformal coating seals surface traces and solder pads against environmental contaminants, moisture, and conductive dust accumulation inside the control cabinet.
Q: How does this board interface with the controller platform architecture?
A: It mounts into the designated rack assembly, drawing logic power and communicating with processing units directly over the internal parallel backplane bus.
Q: Can this modified hardware revision replace an un-coated parent board variant?
A: Yes, provided the functional acronym (AEAA) and revision level align with system firmware and hardware backplane mechanical guidelines.
Field Installation Guidelines
- Power down the controller cabinet and disconnect all external power sources before handling the board assembly.
- Wear a grounded wrist strap connected to the chassis frame to prevent electrostatic discharge damage to surface-mounted components.
- Slide the circuit board smoothly into the designated rack card guides until the backplane edge connectors engage completely.
- Tighten the retaining captive screws on the front panel to establish solid mechanical retention and chassis grounding.
- Verify that field wiring harnesses are secured with proper strain relief and separated from high-voltage lines.
