Product Details
Overview

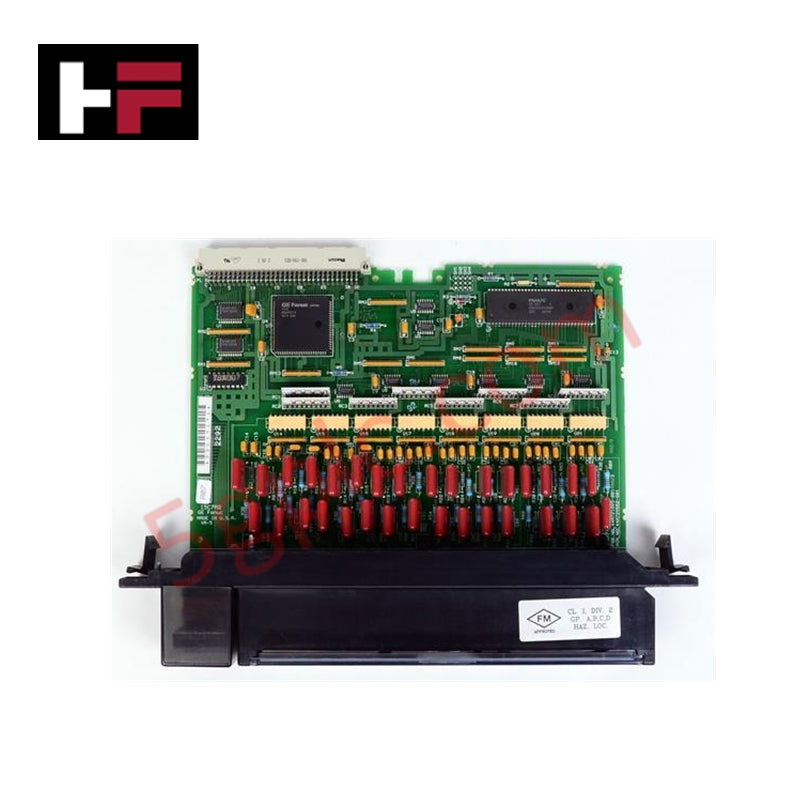

The IC697MDL250 is a 120VAC discrete logic input module developed by GE Fanuc for the Series 90-70 PLC platform. It provides 16 individually isolated input points designed to handle AC voltage signals in industrial control systems. This module offers reliable input processing with robust noise immunity and flexible input filtering to ensure accurate signal interpretation in demanding automation environments.
Technical Specifications
-
Manufacturer: GE Fanuc Emerson
-
Product Line: Series 90-70
-
Product Type: Discrete Input Module
-
Part Number: IC697MDL250
-
Rated Voltage: 120 VAC nominal
-
Input Voltage Range: 100–132 VAC
-
Number of Inputs: 16 individually isolated points
-
Input Current: 7 mA per point at 120 VAC
-
Isolation: 250 VAC continuous; 1500 VAC for 1 minute
-
Input Filter Time: Adjustable from 20 ms to 2540 ms
-
Power Consumption: 220 mA from 5 VDC backplane
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
LED Indicators: Individual channel LEDs for ON/OFF input status
-
Mounting: Standard Series 90-70 baseplate slot
-
Compatibility: Compatible with RX3i controllers and Series 90-70 terminal blocks
Key Features
-
High noise immunity with built-in RC snubbers for transient suppression.
-
Adjustable input filter times allow for dynamic signal tuning.
-
Independent LED indicators provide real-time input status feedback.
-
Modular design ensures quick installation and easy maintenance.
-
Reliable isolation ensures signal integrity across channels.
Application Scenarios
-
Industrial machinery monitoring and AC signal detection.
-
Process automation systems requiring fast and stable logic inputs.
-
Environments with high electrical interference or variable AC loads.
FAQ
Q: Does the IC697MDL250 support configurable input filtering?
A: Yes, filter times can be adjusted from 20 ms to 2540 ms depending on application needs.
Q: Is this module compatible with the RX3i system?
A: Yes, it works with RX3i controllers through proper configuration and cabling.
