Product Details

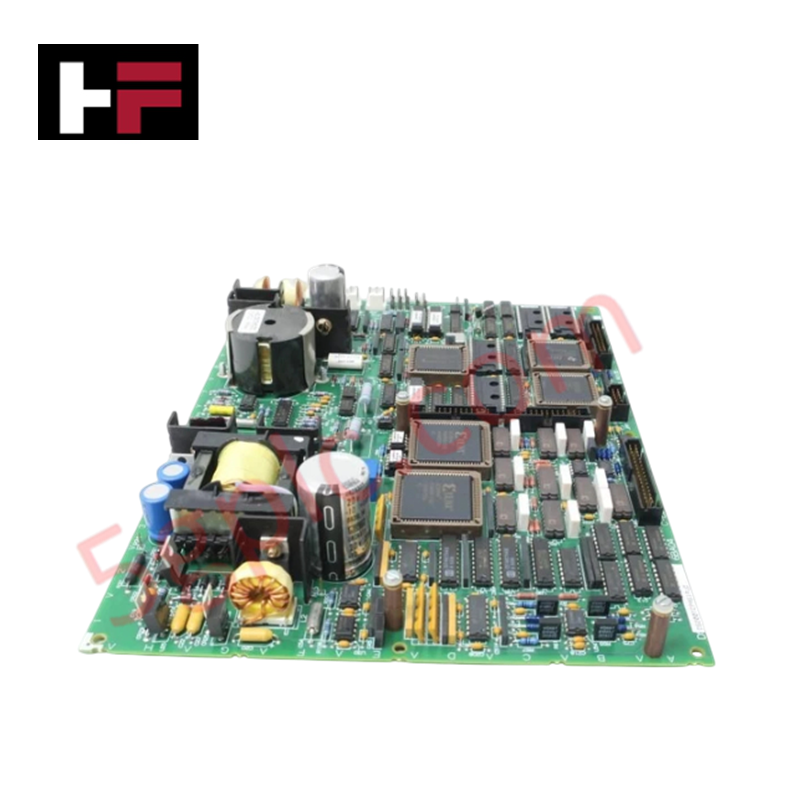

Configured for high-speed logic execution in Mark V control platforms, the GE DS200TCPAG1AJD (DS200TCPA Control Processor Board) provides direct physical execution of machine control and data processing tasks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200TCPAG1AJD |
| Brand | General Electric |
| Origin | Not specified |
| Weight | 0.97 kg (2.14 lbs) |
| Core Components | On-board RAM, Multi-I/O interface |
Industrial Control & Firmware Compatibility
The DS200TCPAG1AJD utilizes an onboard RAM architecture to manage real-time machine control instructions. The board supports deterministic I/O density scaling by interfacing directly with the Mark V backplane bus. Communication velocity between the processor and connected peripheral modules is optimized for standard machine control cycle times. Firmware flash compatibility must be validated against the specific revision level of the control rack backplane to prevent logic synchronization errors. The board's multi-I/O capabilities allow for versatile signal integration, facilitating precise monitoring and control of distributed process variables without the latency associated with external signal conditioning.
Frequently Asked Questions
Q: Is this board compatible with existing Mark V backplane configurations?
A: Compatibility is dependent on the firmware revision of the host backplane and the associated system control software. Ensure that the hardware revision of the DS200TCPAG1AJD aligns with the existing rack setup to maintain deterministic communication across the bus.
Q: What are the primary diagnostic requirements for the on-board RAM?
A: The on-board RAM is utilized for local data processing and instruction buffering. During system boot-up, the processor performs self-diagnostic checks; if memory parity errors are detected, the board will typically trigger a status fault via the system diagnostic interface.
Field Installation Guidelines
- Static Discharge Protection: Wear an ESD-conductive wrist strap connected to a verified ground point during installation. The processor board contains high-density integrated circuits susceptible to damage from electrostatic discharge.
- Slot Alignment: Carefully align the board with the backplane connector before insertion. Do not apply excessive force. Ensure the locking mechanisms are fully seated to maintain contact pressure on the bus interface pins.
- Backplane Connectivity: Verify that all I/O connections to the board are properly wired according to the system interconnection drawings. Loose connections on the multi-I/O interface can cause intermittent signaling or board initialization failure.
- Environment: Install the module in a climate-controlled enclosure to maintain optimal operational temperatures for the on-board components, preventing thermal-induced timing shifts in the processor logic.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
