Product Details

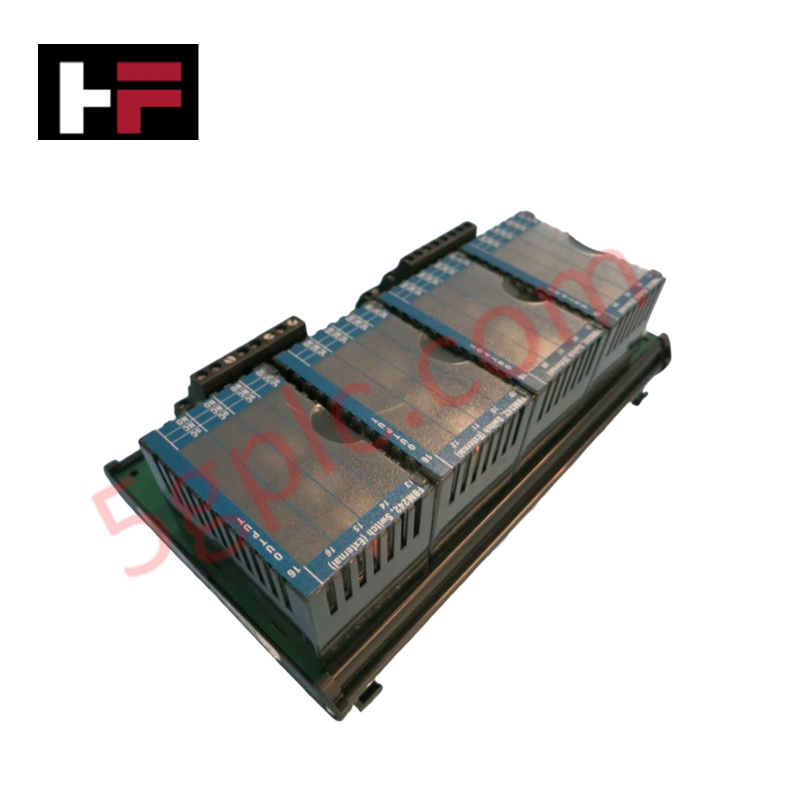

Configured for discrete output channel control within Foxboro distributed control architectures, the Foxboro P0916NJ-0B (P0916NJ FBM242 Module) provides direct physical/electrical execution for 16 discrete output loops when mounted on a DIN-rail baseplate (P0916NG).
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | P0916NJ-0B (FBM242) |
| Brand | Foxboro |
| Origin | Standard Industrial Manufacturing |
| Weight | 0.28 kg (0.62 lbs) module / 0.45 kg baseplate |
| Dimensions | Standard 200 Series DIN-mount modular footprint |
| Operating Temp | -20 deg C to +70 deg C |
| Power Consumption | Backplane-supplied 24 VDC logic and field output drive |
| Output Channels | 16 discrete output channels |
| Baseplate Compatibility | P0916NG / P0916NG-0D DIN-rail baseplate |
Channel Isolation and Loop Signaling
Operating within Foxboro DCS environments, the FBM242 module routes discrete output signals while maintaining robust channel-to-channel isolation and galvanic separation between internal backplane logic and field-side actuator circuits. The module interfaces seamlessly with 4-20 mA HART loop protocol subsystem buses or discrete digital field termination assemblies. Onboard output driver circuits suppress inductive switching transients and electromagnetic interference (EMI), protecting upstream control processors from field line faults.
Frequently Asked Questions
Q: Can the P0916NJ-0B (FBM242) module be hot-swapped while installed on the P0916NG baseplate?
A: Yes, the FBM242 module supports online insertion and removal (hot-swapping) under active baseplate power, allowing field module replacement without disrupting parallel I/O modules sharing the same backplane baseplate cluster.
Q: How should field output wiring shields and ground lines be terminated at the P0916NG baseplate?
A: Field cable shields must be landed directly to the designated cabinet instrument earth ground bar or grounding studs on the baseplate assembly to maintain electromagnetic noise immunity and avoid ground loop potential differences.
Field Installation Guidelines
- Ensure that external field power supplies are isolated before mounting or dismounting the FBM242 module from the P0916NG baseplate.
- Align baseplate guide pins carefully to ensure proper pin-and-receptacle connection without bending backplane contacts.
- Secure baseplate locking clips firmly to the 35 mm DIN rail to maintain mechanical stability in high-vibration industrial environments.
- Verify channel output addressing and software configuration parameters in the DCS controller prior to energizing output loops.
