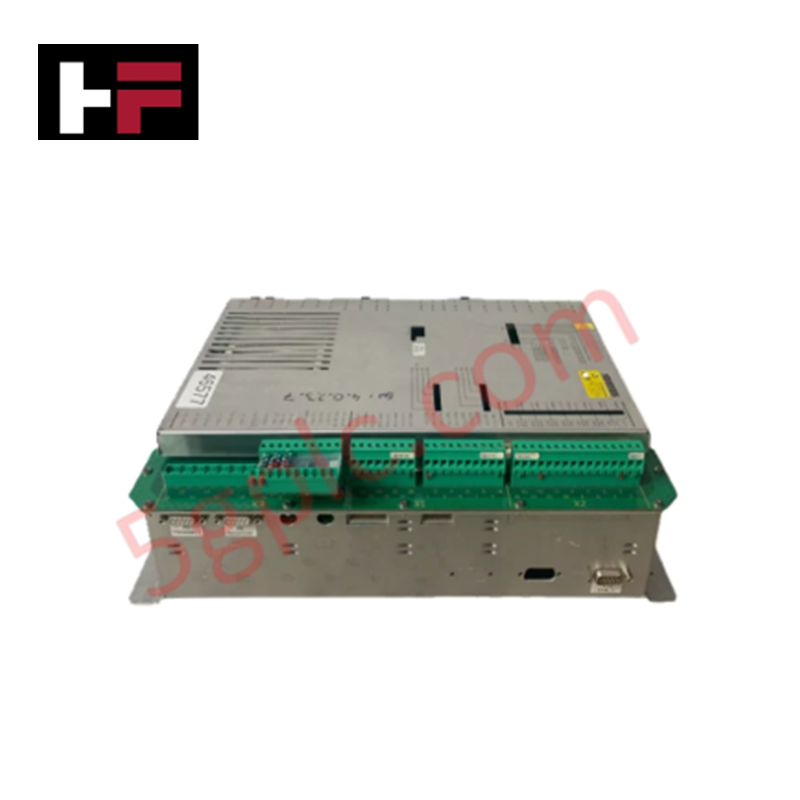

CSC3HUWC2B2 Woodward SEG Controller Module

The Woodward CSC3HUWC2B2, also cataloged as the CSC3HUWC2B2 SEG Controller Module, operates as a dedicated hardware component for turbine control, engine management, and process signal processing within WOODWARD SEG control platforms. Operating on a nominal 24 VDC input, the module processes field feedback across 8 analog input channels (0-10 V) and drives discrete actuators via 16 digital output channels (24 V). Encapsulated in a 120 x 100 x 60 mm enclosure weighing 1.2 kg, the unit maintains deterministic control loop cycles across ambient temperatures ranging from -20 deg C to +60 deg C.

Hardware Specifications

Actuator Loop Feedback Response

The Woodward CSC3HUWC2B2 SEG controller module utilizes high-speed internal sampling logic designed to optimize actuator loop feedback response within gas dynamic and turbine governing loops. The unit conditions 0-10 V analog signals and executes 24 V digital output commands to minimize loop phase lag and prevent position overshoot during sudden step-load transitions. Dynamic control algorithms mitigate mechanical valve hysteresis and load disturbances, preserving closed-loop system stability across varying thermal parameters.

Frequently Asked Questions

Q: What grounding precautions must be observed for the 0-10 V analog input signals?

A: Shielded twisted-pair cabling must be used for all 0-10 V analog input lines. Connect the cable shields to a single-point low-impedance cabinet earth ground to prevent ground loop currents from introducing offset voltage errors into signal measurements.

Q: Are the 16 digital output channels (24 V) protected against field wiring short circuits?

A: The digital output channels incorporate solid-state current limiting. However, to protect internal switching elements from inductive kickback spikes caused by solenoid valves or electromechanical relays, flyback suppression diodes must be installed directly across inductive loads.

Q: Can the 24 VDC primary power feed be paralleled with inductive field devices?

A: Direct parallel wiring of controller power terminals with high-inductive field devices is not recommended. Separate power distribution lines should be routed from the central 24 VDC power supply to avoid transient voltage dips and high-frequency noise interference during output switching cycles.

Field Installation Guidelines

Mount the module inside an industrial protective enclosure using standard DIN rail or direct panel mounting hardware to ensure structural stability. Maintain adequate spacing around the module perimeter to allow unhindered natural convection air dissipation across the heatsink structure. Wire all 24 VDC power leads using conductor gauges matched to peak system load requirements, ensuring terminal screws are torqued to specified limits. Keep low-voltage 0-10 V analog input cables physically separated from high-voltage AC and switching 24 V digital output wiring to eliminate inductive coupling.
