Product Details

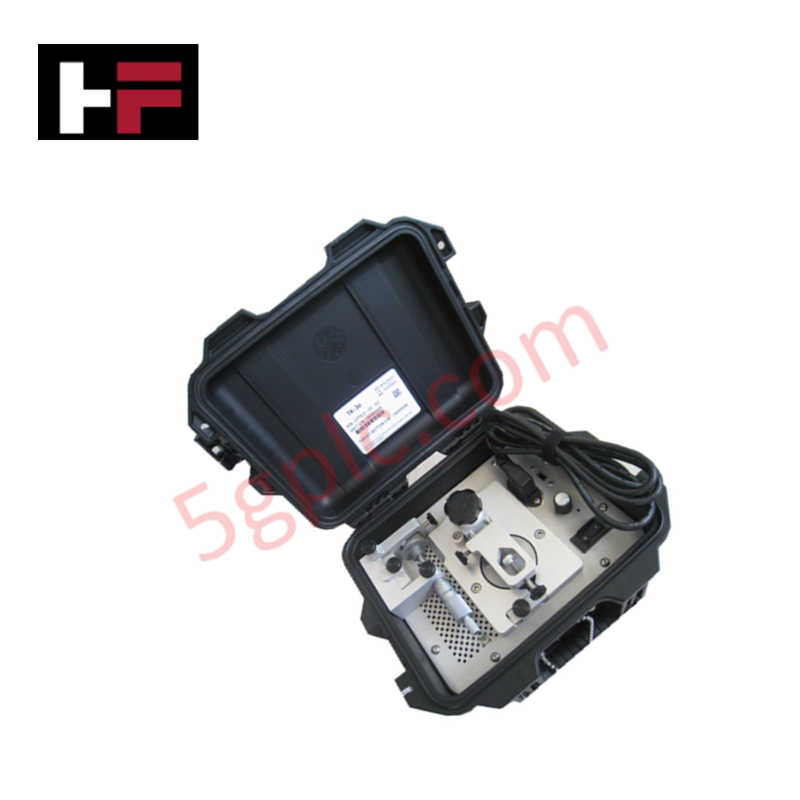

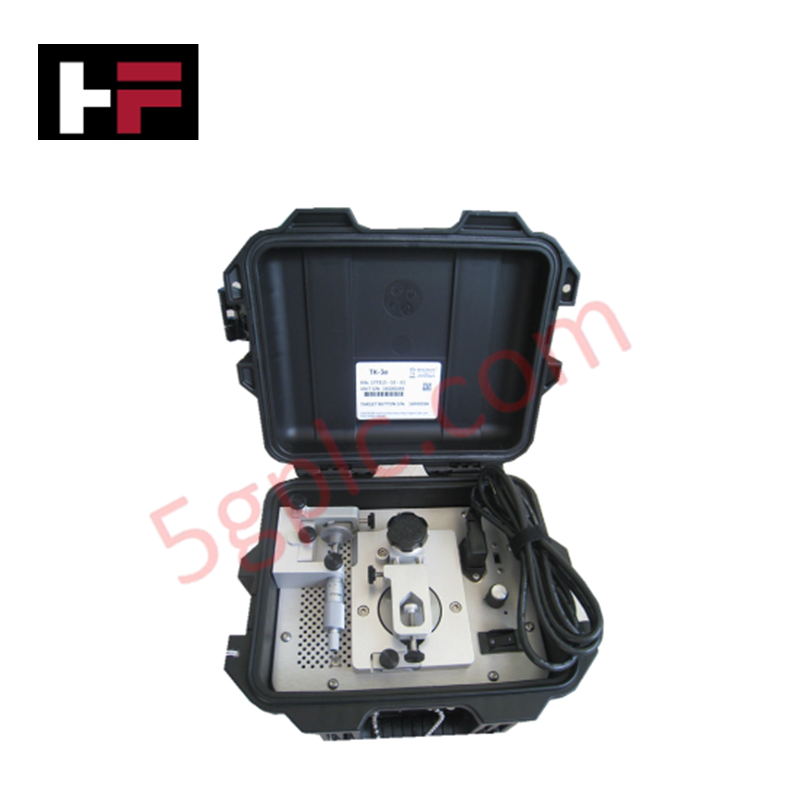

The Bently Nevada 177313-01-01 is an electrically driven TK-3e test kit engineered for field verification and calibration of proximity transducer systems. It simulates shaft mechanical vibration and position displacement, enabling instrument technicians to check proximity probe calibration curves, monitor channel alarms, and verify system linearity without operating target industrial machinery.
Ordering Option Breakdown
The standard model number details key operational and hardware configurations. Option code 01 under Scale Units designates English calibration markings on the spindle micrometer, while option code 01 under Power Cord Type specifies a standard American power cord assembly.
Electrical and Environmental Configuration
The test kit features flexible dual AC operating voltage capabilities, accepting 95-125 VAC (50/60 Hz, 1 A minimum) or 190-250 VAC (50/60 Hz, 1 A minimum). The enclosure is rated IP54 for dust and water resistance when closed, allowing safe field operation across temperatures ranging from 0 deg C to 54 deg C (32 deg F to 130 deg F) in non-condensing humidity up to 95%.
Physical Dimensions

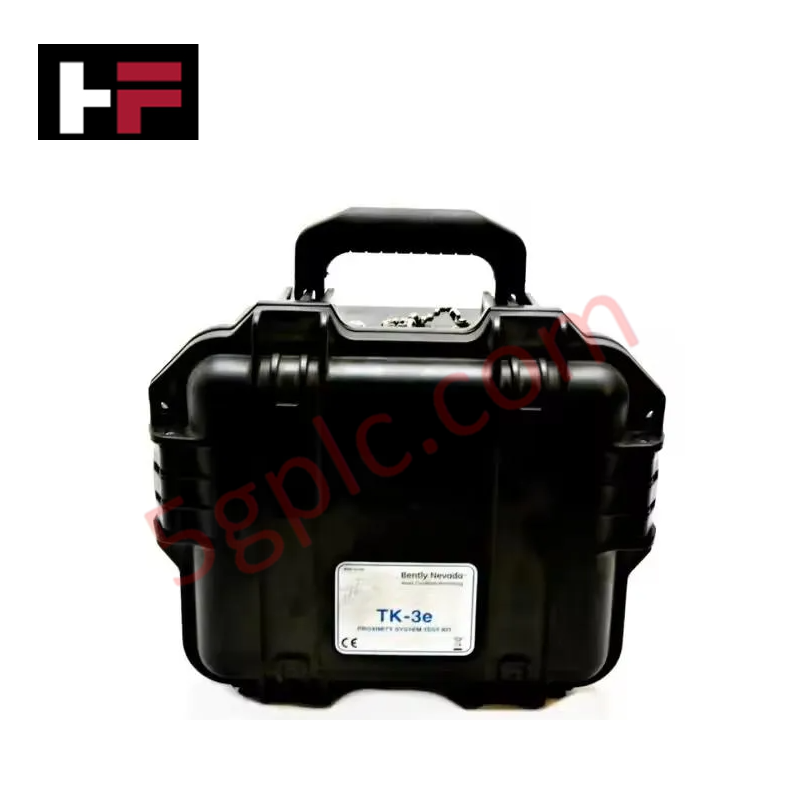

Built in a portable carrying case layout, the unit measures approximately 19.5 cm x 29.9 cm x 24.8 cm. Total shipping weight for the packaged kit is approximately 8 kg.
| Parameter | Specification |
|---|---|
| Model | 177313-01-01 |
| Brand | Bently Nevada |
| Product Type | Proximity System Test Kits |
| Drive Type | Electric driven (TK-3e) |
| Scale Units | English (01) |
| Power Cord Type | American (01) |
| Electrical Power Supply | 95-125 VAC or 190-250 VAC, 50/60 Hz, 1 A minimum |
| Enclosure Ingress Protection | IP54 rated when closed |
| Operating Temperature | 0 deg C to 54 deg C (32 deg F to 130 deg F) |
| Storage Temperature | -18 deg C to 65 deg C (0 deg F to 150 deg F) |
| Operating Humidity | Up to 95% non-condensing |
| Dimensions (H x W x D) | 19.5 cm x 29.9 cm x 24.8 cm |
| Shipping Weight | 8 kg |
| Country of Origin | USA |
Frequently Asked Questions
Q: What configuration is defined by the 177313-01-01 option codes?
A: The -01-01 suffix configures the TK-3e kit with English scale units on the micrometer spindle and an American standard power cord.
Q: What power inputs are supported by the electric drive on model 177313-01-01?
A: It supports dual AC input ranges of 95-125 VAC or 190-250 VAC at 50/60 Hz, drawing a minimum of 1 A.
Q: What environmental ingress protection does this test kit provide?
A: The carrying case is designed to meet IP54 standards for dust and water exposure when closed.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
