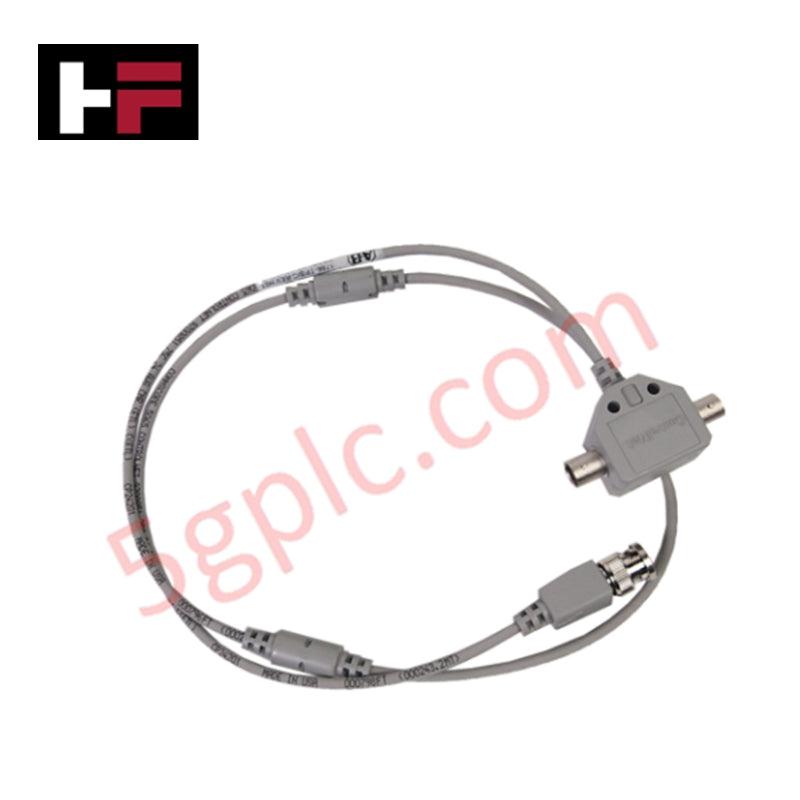

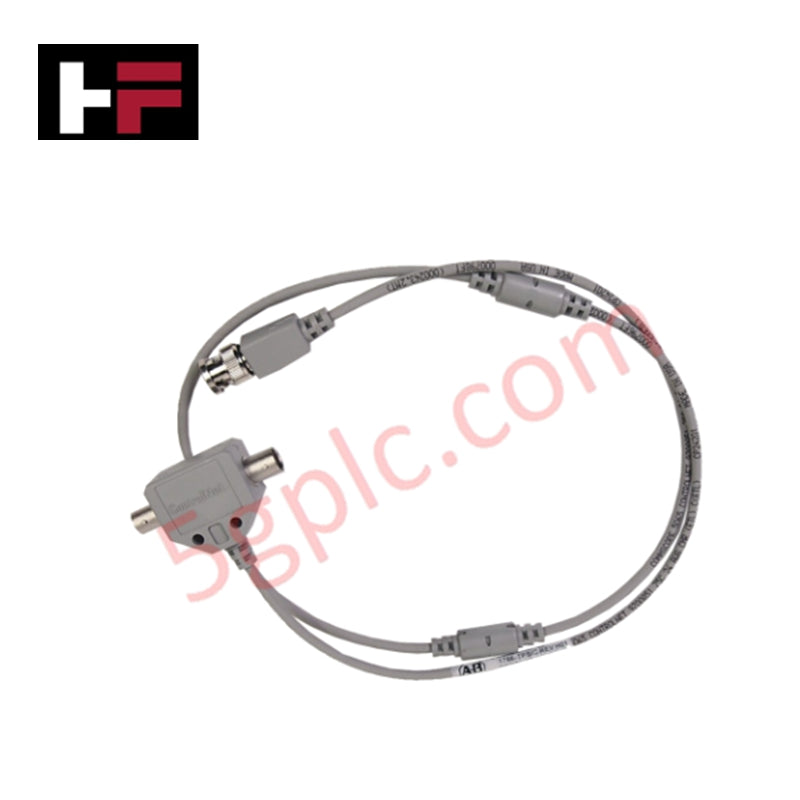

Allen-Bradley 1786-TPS ControlNet Coax Tap Connector

Overview

The Allen-Bradley 1786-TPS is a rugged ControlNet coaxial tap designed to provide secure and reliable physical layer connectivity for ControlNet networks. Built to industrial-grade standards, this coax tap ensures signal integrity and network stability in demanding automation environments. It supports quick installation, minimal signal loss, and superior mechanical durability, making it a dependable choice for both control cabinets and field installations.

Technical Specifications

• Model / Part Number: 1786-TPS

• Brand: Allen-Bradley

• Product Line: ControlNet

• Product Type: Coax Tap Connector

• Operating Temperature: -25°C to +70°C (-13°F to +158°F)

• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

• Relative Humidity: 5%–95% non-condensing

• Operating Shock: 30 g

• Non-Operating Shock: 50 g

• Vibration: 2.5 g, 10–500 Hz

• Construction: Industrial-grade housing for vibration and EMI resistance

• Mounting Style: In-line coaxial connector, standard BNC interface

• Application Compatibility: All standard ControlNet coax cable assemblies (1786-RG6, 1786-RG6F, etc.)

• Environmental Protection: Designed for harsh industrial conditions

Key Features

• Ensures stable and interference-free ControlNet signal distribution

• Operates reliably in extended temperature ranges and high-vibration environments

• Quick-connect BNC design for easy network configuration

• Complies with ControlNet physical layer specifications

• Suitable for use in both industrial and hazardous areas

Applications

• ControlNet trunk or drop line connections in PLC and DCS networks

• Industrial control panels and distributed I/O systems

• Manufacturing and process automation systems

• Harsh environment communication setups requiring stable coaxial signal paths

FAQs

Q1: What is the main function of the 1786-TPS tap?
It serves as a physical connection point between ControlNet coaxial trunk and node cables, enabling signal branching and network expansion.

Q2: Can the 1786-TPS be used outdoors?
Yes, when installed within an appropriate enclosure, the 1786-TPS performs reliably in outdoor or high-humidity environments.

Q3: Is this tap compatible with 1786-RG6 coaxial cables?
Yes. It is fully compatible with standard 1786-RG6 and 1786-RG6F ControlNet coaxial cable types.
