Product Details
Overview

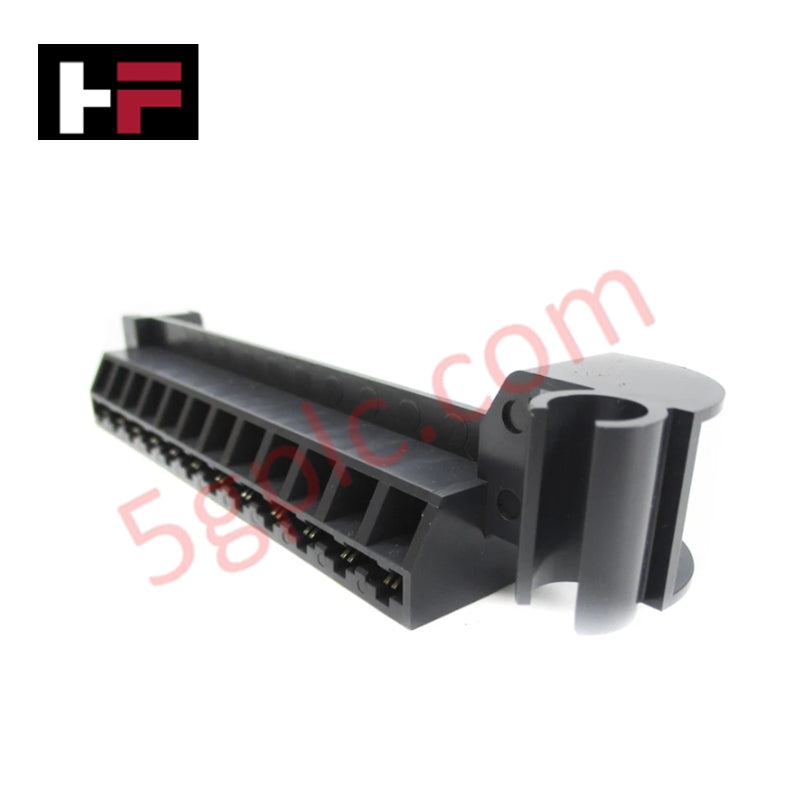

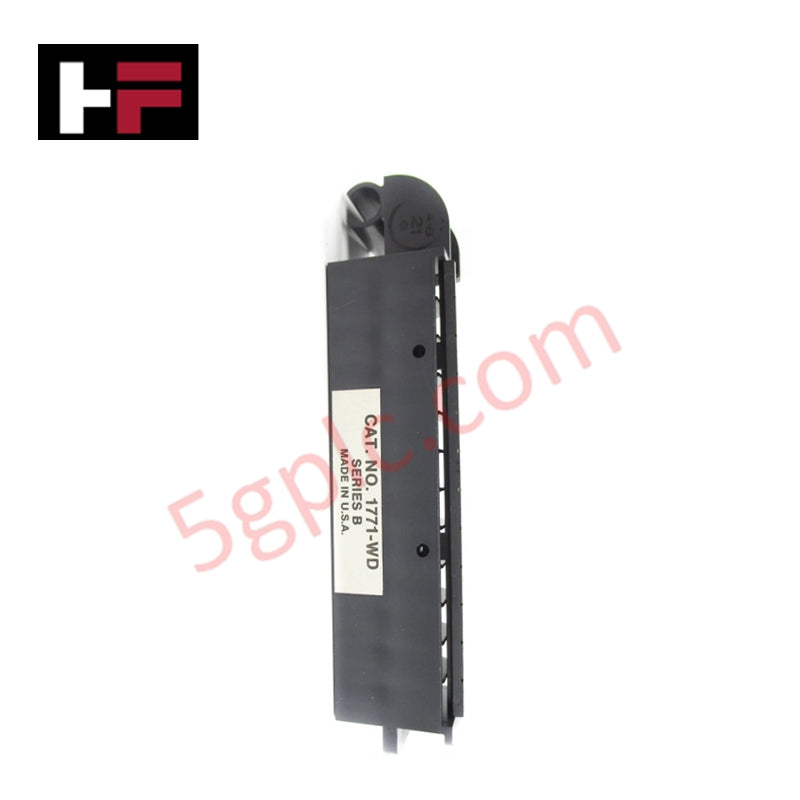

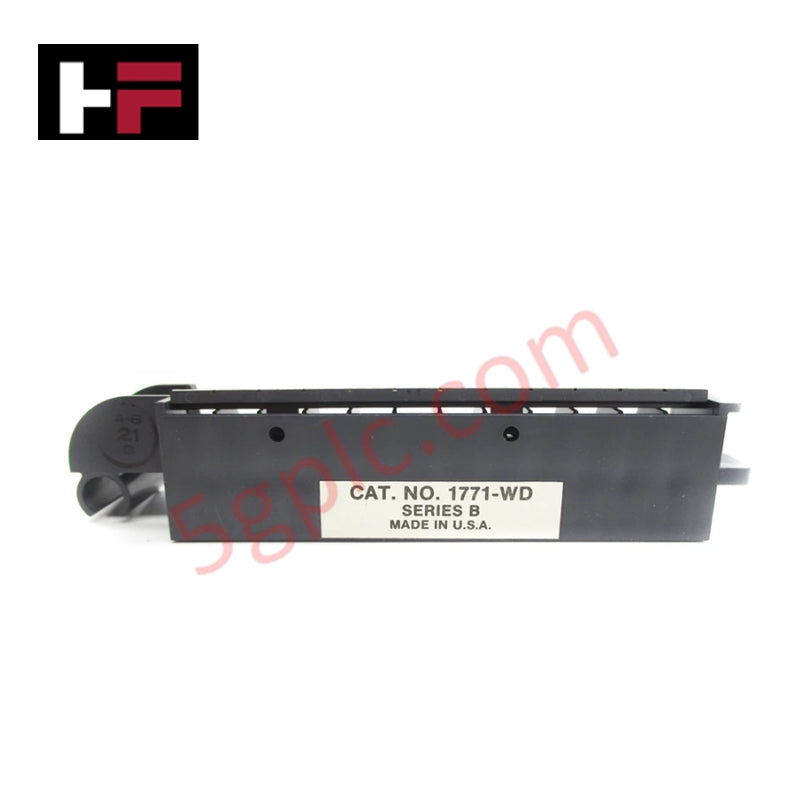

The Allen-Bradley 1771-WD is a dedicated field wiring arm designed for PLC-5 I/O modules. It provides reliable connections for general-purpose isolated I/O modules, ensuring consistent signal integrity with minimal delay. Constructed with durable materials and conformal coating, this wiring arm is suitable for both AC and DC applications.
Technical Specifications
-
Manufacturer: Allen-Bradley
-
Model Number: 1771-WD
-
Product Type: Field Wiring Arm
-
Category: PLC Accessories
-
Compatible Modules: Up to 8 isolated I/O modules, general purpose
-
Number of Terminals: 12
-
Contact Plating: Tin
-
Screw Torque: 7–9 lb·in
-
Coating: Conformal coated for environmental protection
-
Power Requirements: None (self-powered)
-
Signal Delay:
-
AC Off: 29 ± 8 ms
-
DC Off: 30 ± 7 ms
-
Weight: 0.09 kg (0.19 lbs)
-
Wiring Arm Replacement: Compatible with 1771-WN
Key Features
-
Provides secure, reliable connections for PLC-5 I/O modules
-
Supports both AC and DC signal inputs up to 120 V
-
Conformal coating protects against environmental factors
-
Compact, lightweight design simplifies module installation
-
Compatible with multiple series PLC-5 chassis and I/O configurations
Application Scenarios
The 1771-WD is ideal for:
-
Industrial PLC field installations requiring reliable I/O wiring
-
Replacing or upgrading existing PLC-5 wiring arms
-
Applications with general-purpose 6-isolated I/O modules
-
Ensuring accurate signal transmission in process control systems
FAQ
Q1: How many I/O modules can the 1771-WD support?
A1: It supports up to 8 general-purpose isolated I/O modules.
Q2: Is external power required for operation?
A2: No external power is needed; the wiring arm is self-powered.
Q3: What is the typical AC signal delay?
A3: The AC off signal delay is approximately 29 ± 8 ms.
