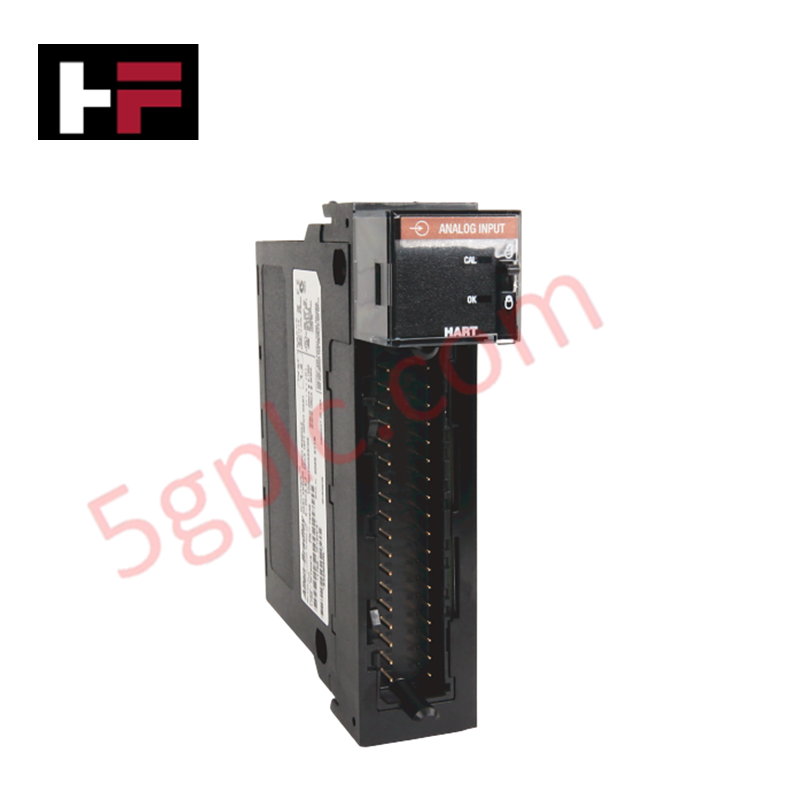

Allen-Bradley 1756-IF16K ControlLogix Conformal Coated Analog Input Module

Product Overview

The Allen-Bradley 1756-IF16K functions as a high-density analog interface for the ControlLogix platform, specifically engineered for harsh industrial environments. This "K" version features factory-applied conformal coating, protecting the internal circuitry against humidity, salt spray, and chemical contaminants. It supports up to 16 single-ended or 8 differential inputs, providing the flexibility to monitor diverse sensors ranging from pressure transmitters to flow meters. We supply this module as 100% Brand New and Original, ensuring your control system maintains maximum signal integrity and longevity in demanding atmospheres.

Technical Specifications

The 1756-IF16K converts high-precision analog signals into digital data using a low-power architecture that minimizes heat buildup in the chassis.

• Manufacturer: Allen-Bradley / Rockwell Automation

• Product Line: ControlLogix

• Module Type: Analog Input Module (Non-Isolated)

• Input Channels: 16 Single-ended, 8 Differential, or 4 High-speed Differential

• Voltage Ranges: $\pm$10.25V, 0–5.125V, 0–10.25V

• Current Range: 0–20 mA / 4–20 mA (via scaling)

• Environmental Protection: Conformal Coated (K-version)

• Backplane Current: 150 mA @ 5.1V DC; 65 mA @ 24V DC

• Power Dissipation: 2.3 Watts (Voltage mode); 3.9 Watts (Current mode)

• Removable Terminal Blocks (RTB): 1756-TBCH or 1756-TBS6H

• Weight: 0.50 lbs (0.23 kg)

Engineering Advantages

• Harsh Environment Resilience: The conformal coating shields the PCB from conductive dust and corrosive gases. This prevents "creeping corrosion" and dendritic growth, which frequently cause premature module failure in wastewater treatment or chemical processing plants.

• Flexible Channel Configuration: Engineers can software-configure the module to handle single-ended inputs for high-density wiring or differential inputs to eliminate common-mode noise. The inclusion of four high-speed differential channels facilitates ultra-fast signal sampling for rapid-response applications.

• Integrated Signal Conditioning: Onboard digital filtering suppresses electrical noise and 50/60 Hz interference. This feature ensures the processor receives stable, accurate data without requiring complex smoothing algorithms in the PLC ladder logic.

• Efficient Thermal Management: The module consumes only 2.3 Watts in voltage mode. This low thermal dissipation allows for tighter packing of I/O modules within the ControlLogix rack without exceeding the system's ambient temperature limits.

FAQs

• What is the primary benefit of the "K" suffix in the part number?

  The "K" indicates that the module features a conformal coating. This protective layer provides an essential defense against moisture and airborne chemicals, making it the preferred choice for oil and gas, paper mills, and other aggressive industrial environments.

• Which Removable Terminal Block (RTB) fits the 1756-IF16K?

  You must use the 36-pin 1756-TBCH (cage clamp) or 1756-TBS6H (spring clamp) terminal blocks. Note that these RTBs are sold separately and do not ship with the module.

• Does this module support current (mA) signals?

  Yes. While the module reads voltage natively, you can measure current signals by utilizing a precision external resistor (typically 249 ohms) or by selecting the current mode in the software configuration to enable internal shunts.

• How do I troubleshoot a signal mismatch?

  Verify the wiring configuration (single-ended vs. differential) in the Studio 5000 module properties. Ensure the "K" version module is properly grounded through the chassis backplane to maximize the effectiveness of its onboard noise filtering.
