Product Details

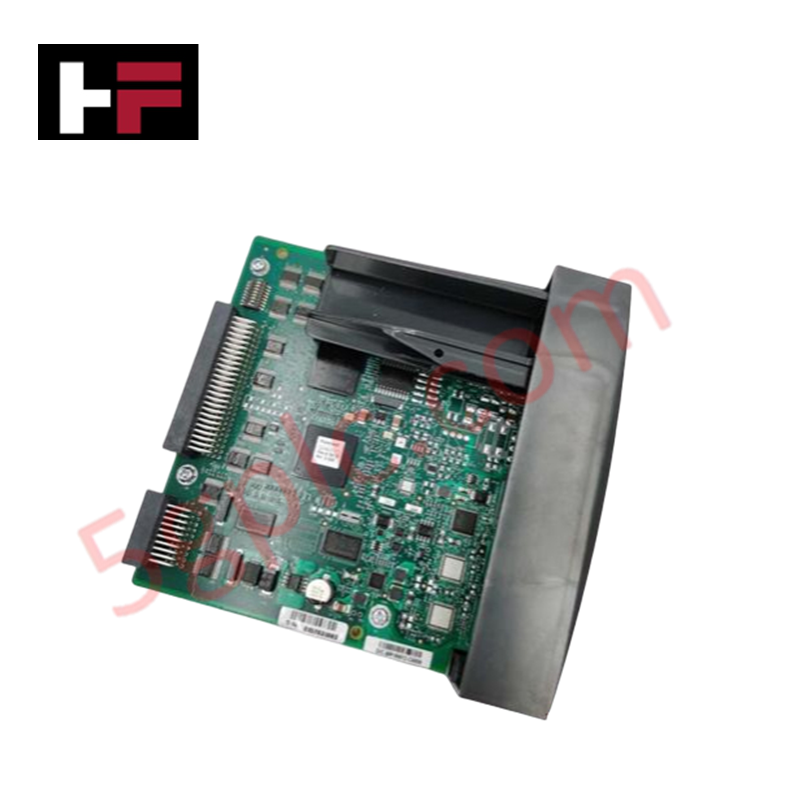

The Honeywell 900S50-0460, also cataloged as the 900S50-0460 I/O Scanner Module, operates as a dedicated hardware component for remote I/O rack data exchange and backplane signal scanning within Honeywell ControlEdge HC900 platforms. It establishes real-time deterministic field bus communication across a single dedicated remote I/O port, interfacing distributed expansion racks directly with the central controller processing unit.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 900S50-0460 |
| Brand | Honeywell |
| Origin | USA |
| Weight | Approx. 0.36 kg |
| Dimensions | 137 x 38.1 x 137.16 mm |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Standard Backplane Bus Load |
| Product Type | Single-port I/O Scanner Module |
| Communication Ports | 1 x Remote I/O port |
| Mounting Type | 35 mm DIN rail |
| System Compatibility | Honeywell ControlEdge HC900 |
Channel Isolation and HART Loop Protocol Integration
The Honeywell 900S50-0460 I/O scanner incorporates galvanic channel-to-channel isolation barriers to shield internal communication logic from field ground loops and electrical switching transients. When scanning remote racks loaded with mixed analog and digital cards—including 4-20 mA HART loop protocol instruments—the module processes cyclic I/O refreshes without degrading HART pass-through telemetry or signal conversion timing. Integrated filtering ensures signal integrity across expanded ControlEdge HC900 network segments.
Frequently Asked Questions
Q: Does the 900S50-0460 scanner module require an independent external DC power input?
A: No, the module receives logic operating power directly from the 35 mm DIN rail mounted backplane rack bus assembly.
Q: How is network communication configured between the 900S50-0460 scanner and the main CPU?
A: Network parameters and rack address assignments are defined within the ControlEdge HC900 process software environment and downloaded to the module via the backplane.
Field Installation Guidelines
- Disconnect main power to the ControlEdge HC900 backplane chassis prior to installing or removing the scanner module.
- Align the module housing with the 35 mm DIN rail slot and press firmly until the metal locking clip engages fully.
- Fasten standard retaining hardware to maintain a solid, low-impedance ground connection to the cabinet chassis rail.
- Connect the remote I/O cable to the front-facing port using shielded twisted-pair cabling designed for industrial communication networks.
- Ensure field cable shields are grounded at the enclosure busbar to prevent high-frequency noise interference.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
