Product Details

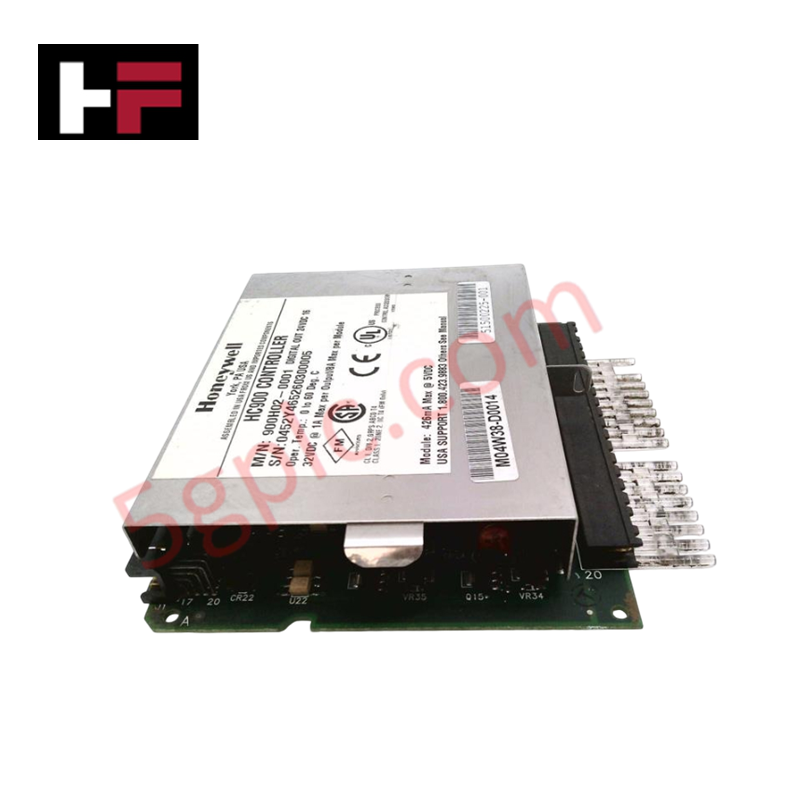

Configured for high-density discrete signal switching in HC900 control networks, the Honeywell 900H02-0001 (900H02 Digital Output Module) provides direct physical/electrical execution. The module manages external 24 VDC to 32 VDC loads via solid-state switching channels based on internal processor states.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 900H02-0001 |
| Brand | Honeywell |
| Series / Module Type | HC900 / Digital Output Module |
| Origin | USA |
| Weight | 0.35 lbs (0.16 kg) |
| Dimensions | Standard HC900 chassis slot allocation |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 426 mA maximum at 5 VDC internal backplane draw |
| Output Channels | 16 discrete outputs |
| Maximum Voltage Range | 32 VDC |
| Maximum Current Rating | 1 A per channel / 8 A maximum per module |
Channel-to-Channel Isolation and Loop Integrity
The electrical design of the 900H02-0001 features rigorous galvanic channel-to-channel isolation zones alongside optical barrier separation between the internal logic circuitry and the 32 VDC field side routing. This physical configuration prevents common-mode noise propagation and ground loop currents from injecting electrical anomalies into neighboring 4-20 mA HART loop protocol lines or low-voltage analog inputs positioned on the same rack backplane. Inductive transient suppression networks are paired with the switching elements to filter out high-voltage feedback spikes from collapsing magnetic fields in solenoid coils.
Frequently Asked Questions
Q: Does the 900H02-0001 module support live hot-swap insertion and extraction during active rack processing?
A: No. Removing or inserting the module while the HC900 backplane is energized can induce transient electrical noise on the shared bus, causing internal communication faults or unsafe dropouts on adjacent channels.
Q: What are the backplane current load limitations when deploying multiple 900H02-0001 modules in a single rack assembly?
A: Each module pulls a maximum of 426 mA from the 5 VDC logic supply. Total rack consumption must be calculated against the rating of the primary power supply module to prevent overcurrent trip conditions.
Field Installation Guidelines
- Chassis Slot Seating: Align the module circuit board with the upper and lower plastic guides within the designated slot. Push the assembly straight into the backplane until the interface pins lock securely.
- Field Wiring Routing Constraints: Separate all VDC discrete output loops from high-voltage alternate current paths and variable frequency drive motor leads within the containment trays to prevent cross-talk coupling.
- External Fuse Allocation: Install high-speed current limiting fuses on the field supply side for each block of channels to prevent continuous module overloads from breaching the 8 A absolute physical limit.
- Shield and Ground Continuity: Terminate external cable drain wires and internal reference ground paths at the unified enclosure grounding bar before energizing the module input channels.
