Product Details

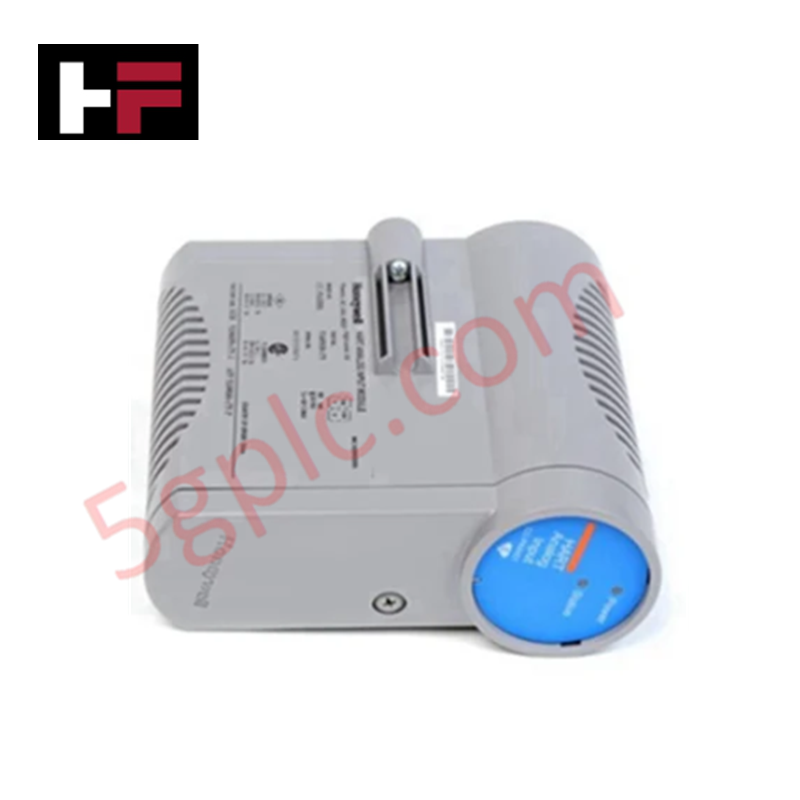

The Honeywell 8U-PDILA1, also cataloged as the 8U-PDILA1 Digital Input Module, operates as a dedicated hardware component for discrete state acquisition from field contacts within Honeywell Experion PKS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 8U-PDILA1 |
| Brand | Honeywell |
| Origin | USA |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Not specified |
| Module Type | Digital Input Module |
| Input Signal Type | Dry contact and powered discrete signals |
| Isolation | Channel-to-system electrical isolation |
| Mounting | Rack-mounted / IOTA baseplate |
Channel-to-Channel Isolation & Galvanic Signal Conditioning
The module utilizes optical and galvanic insulation barriers between input field terminals and internal backplane logic. The channel-to-system electrical isolation prevents common-mode noise, ground loops, and transient potential shifts on field wiring from propagating to the central process controller. The signal conditioning circuitry processes both dry contact state detection and active powered discrete signals, filtering contact bounce and line ripple before updating logic tables across the backplane bus.
Frequently Asked Questions
Q: Can the 8U-PDILA1 accept passive dry contact closures and voltage-driven signals on its input channels?
A: Yes, the input circuitry accepts both unpowered dry contact closures and powered discrete voltage signals.
Q: How does the module prevent field-side ground loops from interfering with central logic processing?
A: Integrated channel-to-system electrical isolation maintains galvanic separation between field wiring loops and internal control system backplane circuitry.
Q: What thermal considerations apply during cabinet installation?
A: The module relies on passive air convection and requires adequate rack spacing to operate within the 0 deg C to 60 deg C ambient temperature specification.
Field Installation Guidelines
- Disconnect system operational power to the rack or carrier baseplate prior to inserting or seating the 8U-PDILA1 module.
- Observe strict electrostatic discharge (ESD) precautions, using a grounded wrist strap when handling the exposed edge connectors.
- Align the module housing with the carrier slot and press firmly to ensure full connector pin engagement on the backplane.
- Route discrete signal wiring in dedicated conduits physically separated from high-voltage AC lines to mitigate electromagnetic interference (EMI).
- Terminate all field wiring securely and connect cable shields to a single grounding bus bar before applying power.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
