Product Details

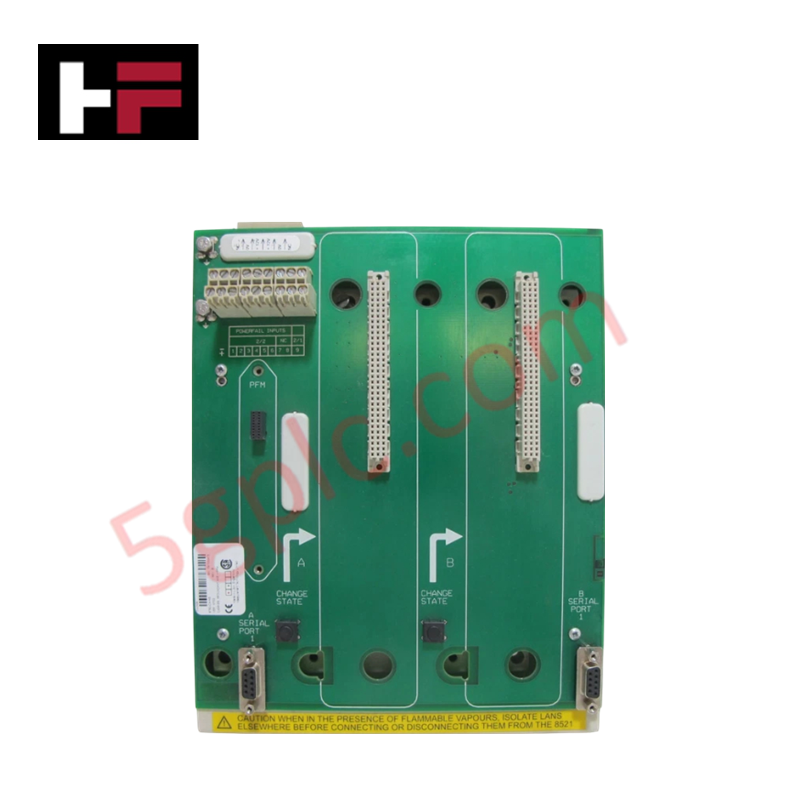

The GE 8750-CA-NS, also cataloged as the 8750-CA-NS Controller Carrier, operates as a dedicated hardware component for physical mounting and internal Railbus routing within GE Fanuc PAC8000 I/O platforms.
Configured for internal bus routing and node segmentation in GE Fanuc distributed architectures, the GE 8750-CA-NS (8750-CA-NS Controller Carrier) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 8750-CA-NS |
| Brand | GE Fanuc |
| Origin | United States |
| Weight | Standard PAC8000 Carrier Profile Weight |
| Dimensions | Standard Controller Carrier Footprint |
| Operating Temp | -40 - +70 deg C |
| Power Consumption | Passive Backplane Architecture (System Current Dependent) |
| System Platform | PAC8000 I/O / Process Logic Controller |
| Internal Bus | Integrated Railbus address, data, and power tracks |
| Redundancy Configuration | Redundant Controller Controller Carrier Framework |
| Mechanical Mounting | Flat panel, T-section DIN rail, or G-section DIN rail |
Firmware Flash Compatibility and Railbus Distribution
The controller carrier establishes the foundational internal backplane pathways that integrate the Bus Interface Modules (BIM) or primary processors with adjacent I/O nodes. Address lines, power tracks, and serialized data vectors move across the integrated Railbus infrastructure. To prevent communication latency drops or addressing conflicts during peer-to-peer scanning, all integrated controllers must maintain verified firmware flash compatibility layers. This uniform logic layer ensures deterministic cycle updates and correct station mapping over the physical backplane connections.
Frequently Asked Questions
Q: Does the 8750-CA-NS carrier support live hot-swapping of connected controllers or BIMs?
A: The carrier framework allows hot-swapping of secondary modules provided the specific interface module incorporates pre-charge pins. However, the carrier substrate itself is a passive backplane unit and cannot be extracted or unbolted from the DIN rail loop while the internal system power rail is active.
Q: How does the mechanical keying system behave during I/O module replacement?
A: The field terminal structures that snap onto the carrier feature geometric interlocks designed to match individual module configurations. This prevents insertion of incompatible module types into slots configured for different electrical signal ratings, preserving the system isolation profiles.
Field Installation Guidelines
- Backplane Grounding Framework: Secure the carrier chassis onto the panel or T-/G-section DIN rail structure, ensuring the metal grounding clips achieve direct, clean contact with the metallic rail plate.
- Field Terminal Interconnect: Snap the required field terminal blocks onto the designated slots of the carrier body, validating that the internal multi-pin interfaces line up without deformation before applying downward locking pressure.
- Wiring Trajectory Routing: Run all external field wires into the terminal block wire clamps, avoiding loops that run across parallel high-voltage AC source cables to mitigate electromagnetic induction on the passive Railbus tracks.
