Product Details

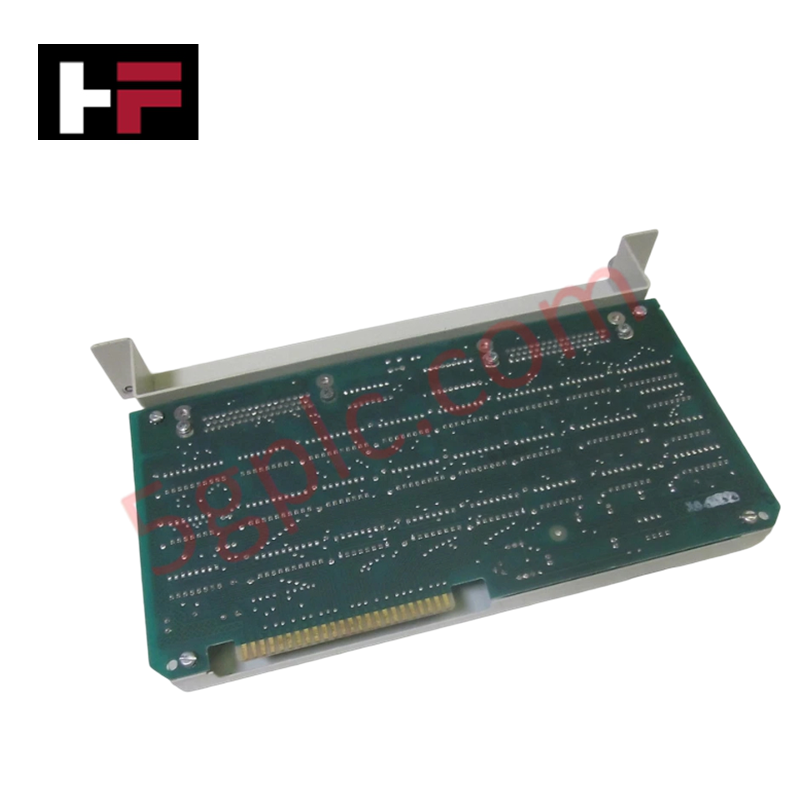

The Honeywell 621-9930, also cataloged as the 621-9930 Parallel I/O Module (PIOM), operates as a dedicated hardware component for parallel rack communication and card-select signal generation within Honeywell IPC 620 architectures. It decodes I/O module address data directly from the Central Processor Module (CPM) to drive digital input, digital output, and analog input module configurations across expanded rack slots.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 621-9930 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.77 kg (1.7 lbs) |
| Dimensions | 120 mm x 80 mm x 30 mm |
| Operating Temp | -40 deg C to 85 deg C |
| Storage Temp | -55 deg C to 125 deg C |
| Supply Voltage | 24 VDC |
| Power Consumption | 36 W (24 VDC at 1.5 A max) |
| Communication Interface | RS-232 / RS-485 Parallel Bus Interface |
| Response Time | Less than 10 ms |
| System Compatibility | Honeywell UCN / IPC 620 Universal I/O |
Channel Isolation and Loop Protocol Integration
The Honeywell 621-9930 Parallel I/O Module utilizes dedicated channel-to-channel isolation on its internal decoding bus to shield processing circuits from field-side voltage transients. When interfacing with 4-20 mA HART loop protocol adapters or digital field points, the module generates isolated card-select logic pulses to prevent cross-talk across adjacent rack slots. This high-density signal decoding maintains deterministic response timing under full-rack bus traffic loads.
Frequently Asked Questions
Q: Can the module be configured for half-rack chassis slots?
A: Yes. The physical board layout allows installation into both full-rack Slot N positions and half-rack Slot H positions within IPC 620 chassis assemblies.
Q: How does the module handle communication latencies when driving external I/O racks?
A: Internal hardware logic processes address decoding and card-select pulse generation in less than 10 ms, maintaining real-time logic execution across connected I/O racks.
Field Installation Guidelines
- Disconnect main 24 VDC supply power before inserting or removing the module from the IPC 620 rack chassis.
- Align the module card edges with the designated slot guides and press firmly to seat the backplane connector.
- Tighten the panel retention screws to secure the module chassis frame to protective earth ground.
- Route serial communication lines through shielded twisted-pair cables, keeping them separated from AC power conductors.
- Verify that the cable braid shield connects directly to the cabinet ground bus at a single ground terminal point.
