Product Details

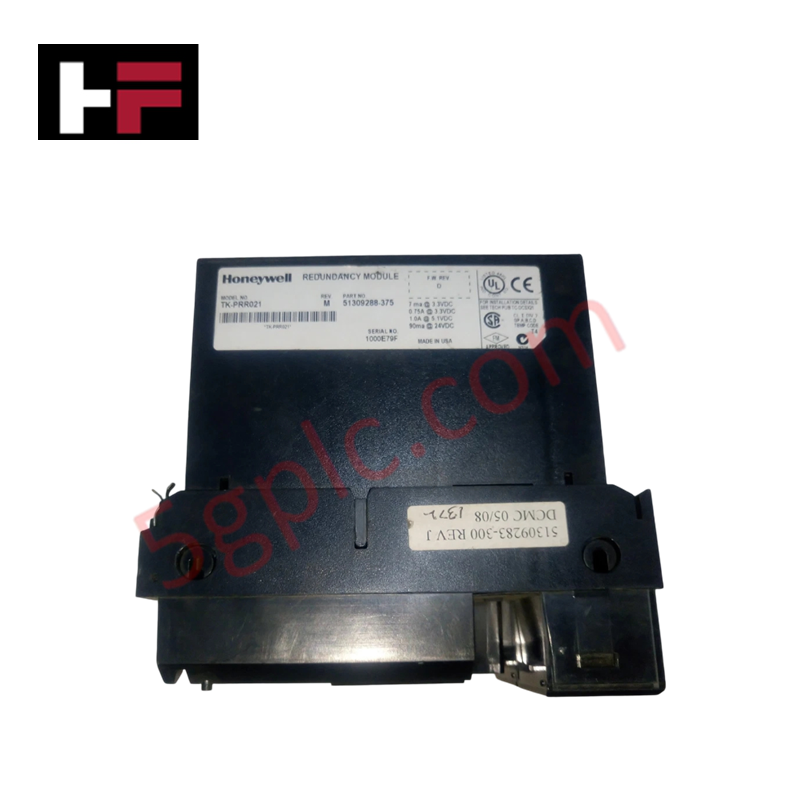

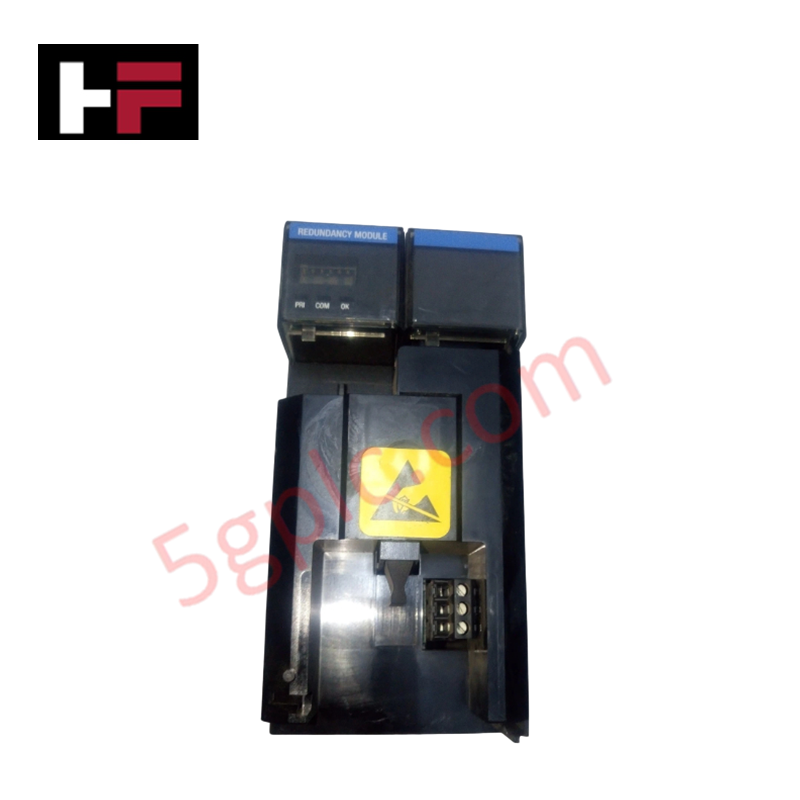

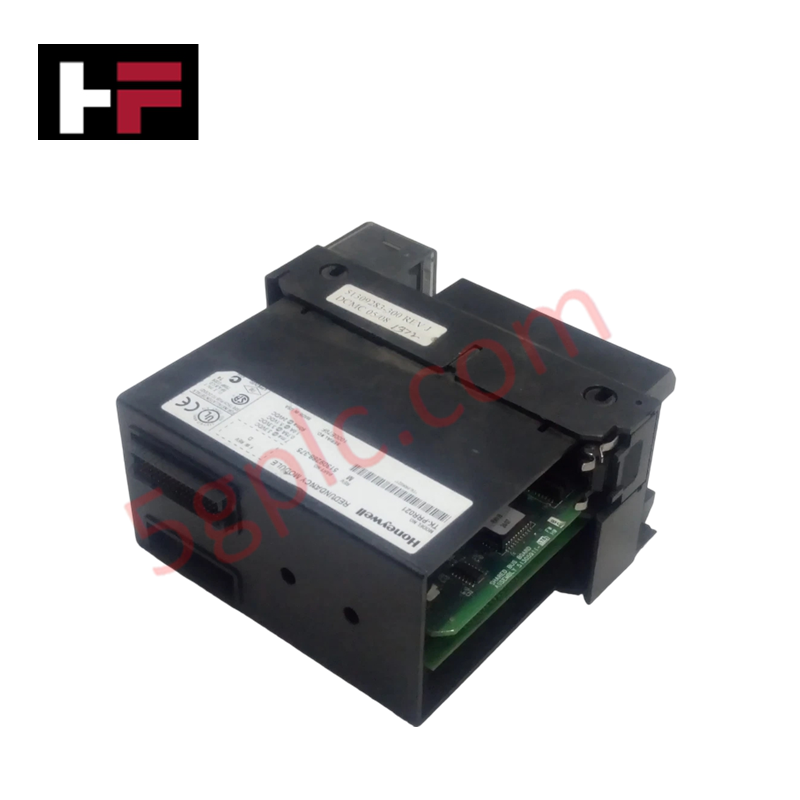

The Honeywell 51309288-375, also cataloged as the TK-PRR021 Redundancy Module, operates as a dedicated hardware component for fault-tolerant bus power routing and primary-to-backup controller switching within Honeywell Experion PKS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51309288-375 |
| Brand | Honeywell |
| Base Model | TK-PRR021 |
| Product Type | Redundancy Modules |
| Origin | USA |
| Weight | 0.431 kg (0.95 lbs) |
| Dimensions | 3.0 cm x 31.3 cm x 27.8 cm |
| Operating Temp | -40 deg C to +85 deg C |
| Power Supply | 24 VDC |
| Current Consumption | 90 mA at 24 VDC |
| Output Voltage | 3.3 VDC, 5.1 VDC |
| Output Current | 7 mA at 3.3 VDC, 1.0 A at 5.1 VDC |
Channel-to-Channel Isolation and Fault-Tolerant Bus Routing
The 51309288-375 module isolates duplicate power supply rails to maintain dual-bus integrity across high-density I/O chassis. Integrated switching circuitry provides regulated 3.3 VDC and 5.1 VDC outputs directly to the backplane, decoupling primary and secondary controller nodes. This design enforces strict channel-to-channel isolation to prevent electrical fault propagation, permitting uninterrupted 4-20 mA HART loop protocol communications and real-time field data processing during hot-standby failover events.
Frequently Asked Questions
Q: What power output rails does the 51309288-375 supply to the backplane chassis?
A: The module supplies dual regulated DC outputs consisting of 3.3 VDC rated at 7 mA and 5.1 VDC rated at 1.0 A derived from an incoming 24 VDC feed.
Q: Is the TK-PRR021 module hot-swappable during system operation?
A: Yes, the unit can be inserted or removed under power in a redundant rack configuration provided the redundant power path is healthy and fully energized.
Field Installation Guidelines
- ESD Protection: Always wear a grounded wrist strap before handling the module to prevent electrostatic discharge damage to internal components.
- Chassis Alignment: Align the module card edges with the chassis guide rails and push firmly until the rear backplane connectors are fully engaged.
- Thermal Management: Ensure vertical chassis clearance is maintained to support natural convection cooling across the operating range of -40 deg C to +85 deg C.
- Power Conductor Separation: Route external 24 VDC supply cables away from low-level signal lines within the enclosure to minimize electromagnetic interference.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
