Product Details

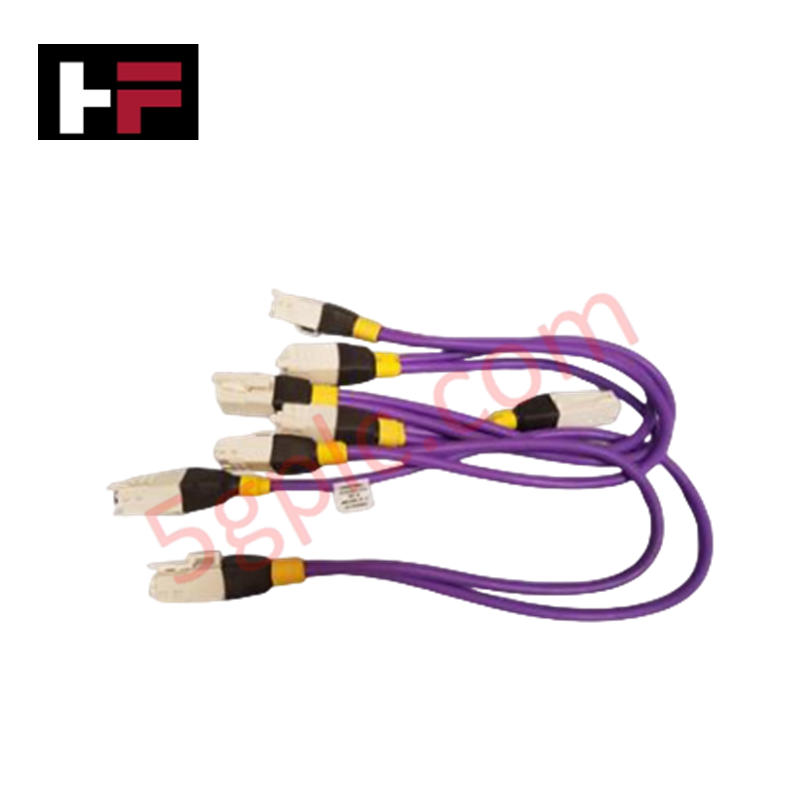

The Honeywell 51202971-512, also cataloged as the 51202971 Combo I/O Link Wire Harness, operates as a dedicated hardware component for direct physical/electrical signal routing within Honeywell Experion PKS and C300 controller systems. Configured for concurrent multi-wire input and output data loops, the assembly handles raw physical signal paths to preserve point-to-point transmission tracking between peripheral termination components and the central processing nodes.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202971-512 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.3 kg |
| Dimensions | Standard multi-conductor industrial rack lengths |
| Operating Temp | -40 to 85 deg C |
| Power Consumption | Passive physical distribution assembly (Zero current draw) |
| Configuration | Multi-wire assembly supporting input and output paths |
| Connector Type | Industrial-grade harness connector |
| Wire Gauge | 22-18 AWG |
| Shielding | EMI/RFI shielded for noise immunity |
| Material | High-durability PVC and industrial-grade conductors |
Honeywell DCS Channel-to-Channel Isolation Parameters
The hardware assembly layout maintains factory channel-to-channel isolation parameters when mated with high-density C300 I/O modules. By utilizing internal physical grouping barriers and active EMI/RFI shielding configurations, the structure suppresses mutual inductive cross-talk across adjacent signal runs, preventing transient voltage spikes from affecting parallel measuring networks operating on the 4-20 mA HART loop protocol.
Frequently Asked Questions
Q: Can this combo I/O link harness be uncoupled while the C300 system is actively running loops?
A: No, decoupling the assembly during live runtime operations breaks continuous current loops, producing signal faults inside the processor registers and forcing downstream safety interlocks.
Q: How does the mixed 22-18 AWG internal wiring layout affect termination resistance?
A: The varied gauges match specific electrical load profiles for standard input and output circuits, keeping line impedance within baseline specification limits without causing thermal loading.
Field Installation Guidelines
- Install the shielded harness along distinct low-voltage industrial wireways, maintaining maximum physical isolation from high-voltage AC motor lines.
- Inspect the plug housing for contact alignment prior to slotting into the controller board receiver to avoid structural pin damage.
- Tighten all integrated mechanical locks or retaining screws until the connector face sits flush against the chassis grounding plate.
- Verify the shield continuity connection, terminating the overall drain wire directly to the master plant instrument ground busbar.
