Product Details

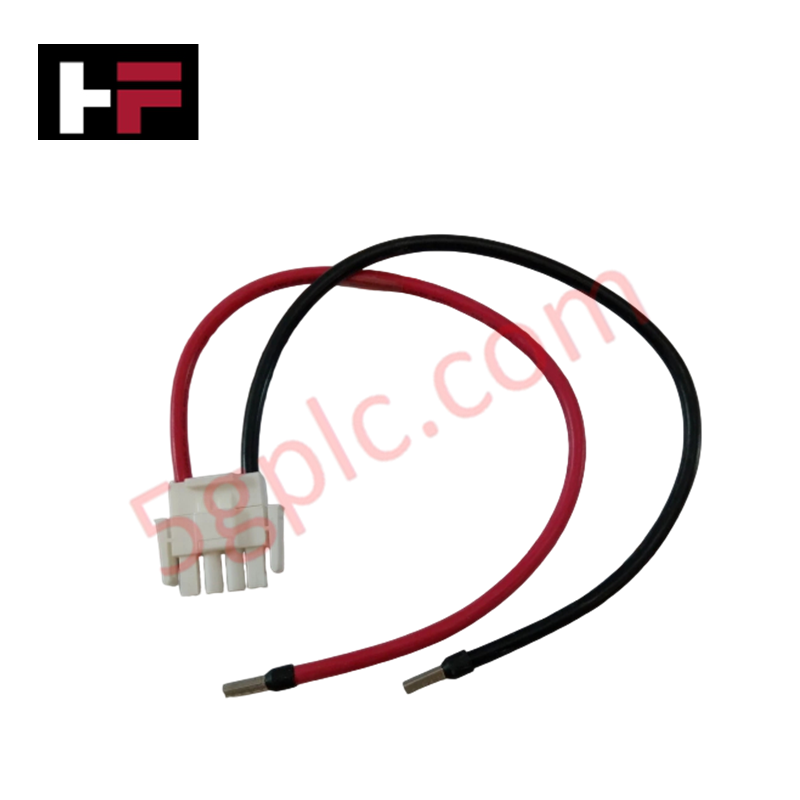

The Honeywell 51202905-200 serves as the primary 51202905 I/O Link Cable utilized to execute noise-resistant signal transmission across Honeywell distributed control platforms. This passive assembly physically connects controller backplanes to distant I/O chassis, routing deterministic serial data frames and digital logic commands while suppressing ambient electrical interference.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202905-200 Rev. A |
| Brand | Honeywell |
| Origin | USA |
| Weight | 2 kg (Gross package weight) |
| Dimensions | 200 x 120 x 100 mm (Package dimensions) |
| Operating Temp | Standard industrial cabinet environments (0 to 60 deg C operational threshold) |
| Power Consumption | Passive distribution matrix (Zero active current draw) |
| Cable Type | High-density I/O link cable |
| Structural Integrity | Factory-tested QC-passed shielding |
Honeywell DCS Channel-to-Channel Isolation Parameters
The electrical assembly conforms to standard channel-to-channel isolation metrics when configured inside high-density multi-processor racks. By maintaining exact physical conductor spacing and integrated internal layer insulation, this hardware topology isolates discrete low-voltage transmission lines, suppressing electromagnetic cross-talk that could disrupt high-precision 4-20 mA HART loop protocol instruments running concurrently in parallel routing pathways.
Frequently Asked Questions
Q: Can this I/O link cable be hot-swapped while the associated processing nodes are powered?
A: No, uncoupling this interface while active will immediately break data bus continuity, resulting in localized module dropouts and prompting the primary controller to trigger an active safety shutdown routine.
Q: Does the assembly require external line termination blocks?
A: Termination properties are governed by the parent controller and baseplate hardware receptacles; this component behaves purely as a transparent physical layer conductor.
Field Installation Guidelines
- Map out the cable layout within clean, isolated low-voltage standard wireways to isolate all data signals from nearby high-voltage inductive lines.
- Align the connector orientation pins with the receiving baseplate bracket slot before forcing engagement to prevent terminal pin deformation.
- Secure the module retaining screws or mechanical locking clips to ensure stable contact continuity under continuous machine-induced vibration.
- Ground the primary outer shield wrap at a single destination points on the master enclosure earth ground bar to avoid creating dangerous ground loop circuits.
