Product Details

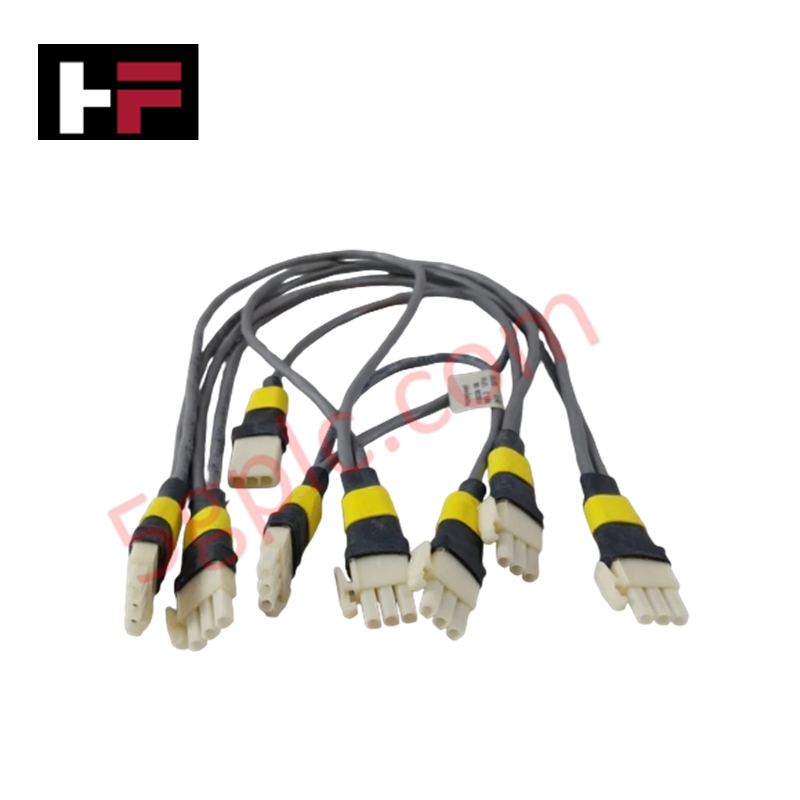

The Honeywell 51202329-606, also cataloged as the 51202329-606 I/O Link Gray Header Cable, operates as a dedicated hardware component for high-speed serial signal interconnection within Honeywell Experion PKS platforms. It routes digital telemetry signals directly between chassis interface backplanes and distributed I/O modules via dedicated gray header terminations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202329-606 |
| Brand | Honeywell |
| Origin | USA / Certified Assembly Facility |
| Weight | 3.0 kg (Shipping weight) |
| Dimensions | Standard Rack Drop Length |
| Operating Temp | -20 to 70 deg C |
| Power Consumption | Passive Cable Component |
| Cable Type | I/O Link Gray Header Cable Set |
| Connector Type | Polarized Gray Keyed Header Connectors |
| System Compatibility | Honeywell Experion PKS / Series C |
Cold Junction Compensation (CJC) & Signal Integrity
The 51202329-606 cable assembly ensures low-loss serial data transmission across internal cabinet structures. When interfacing with high-density analog temperature input cards, the low-resistance physical terminations maintain absolute signal reference continuity. This allows local cold junction compensation (CJC) circuits on thermocouple terminal blocks to report millivolt temperature shifts accurately back to the DCS controller without inductive noise interference or voltage drop degradation along the I/O link backbone.
Frequently Asked Questions
Q: Does the gray header connector on the 51202329-606 assembly feature mechanical keying?
A: Yes, the gray header housing utilizes mechanical keying features to prevent improper connector orientation and pin mismatch during backplane interface wiring.
Q: Can the 51202329-606 cable be disconnected while the host system backplane is energized?
A: Physical removal of an active I/O link cable disrupts data transmission to associated downstream modules; line circuits should be powered down or placed into safe maintenance modes prior to disconnection.
Field Installation Guidelines
- Inspect connector pins and latching mechanisms for structural alignment prior to cabinet installation.
- Observe minimum cable bending radii along cabinet raceways to avoid inner dielectric shielding stress.
- Align the gray connector header keyways precisely with the chassis header port before applying insertion pressure.
- Route I/O link cabling strictly through dedicated low-voltage wire trays separate from high-voltage AC conductors.
- Verify that shield grounding leads connect securely to the master cabinet ground bus to uphold continuous electromagnetic shielding integrity.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
