Product Overview

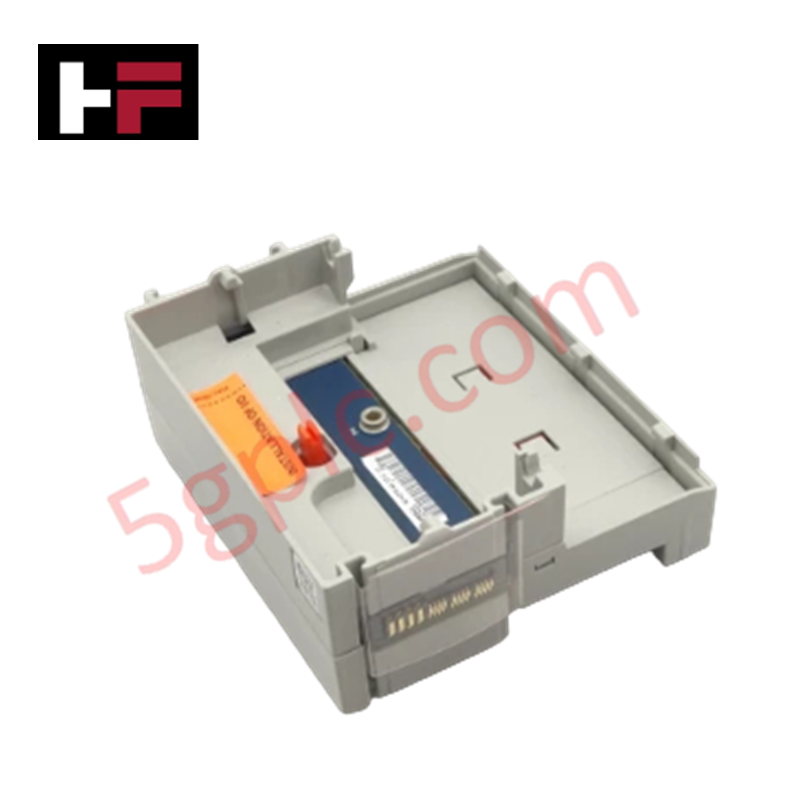

The Allen Bradley 5094-MB serves as the foundational structural component for the FLEX 5000 I/O system. This mounting base provides the essential physical and electrical interface between the I/O modules and the backplane. Engineers utilize the 5094-MB to streamline high-speed data transfer and power distribution within modular automation architectures. It ensures a rigid, vibration-resistant connection point for critical control hardware in demanding industrial environments.
Technical Specifications
| Feature | Specification |
| Manufacturer | Allen Bradley / Rockwell Automation |
| Product Line | FLEX 5000 |
| Condition | 100% Brand New Original |
| Current Consumption | 15 mA @ 3.3V DC / 100 mA @ 5.5V DC |
| Isolation Voltage | 250V AC (Continuous) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Shock Resistance | 30 G (Operating and Non-operating) |
| Vibration Resistance | 5 G @ 10 to 500 Hz |
| Mounting | Zinc-plated, chromate-passivated steel DIN rail |
| Enclosure Type | Open-type |
Engineering Advantages
-
Extreme Thermal Resilience: The 5094-MB operates reliably in temperatures ranging from -40°C to 70°C. This wide range allows you to deploy the FLEX 5000 system in unconditioned outdoor cabinets or high-heat manufacturing zones without risking hardware failure.
-
High-Integrity Signal Isolation: The unit provides 250V AC continuous isolation. This safeguards your control logic from voltage surges and ground loops, ensuring signal integrity across the backplane.
-
Rapid Modular Assembly: The design incorporates a Removable Terminal Block (RTB) connection strategy. This allows technicians to wire the system before installing the base, significantly reducing commissioning time and simplifying maintenance during module swaps.
-
Rugged Mechanical Stability: With a 30 G shock rating and 5 G vibration resistance, this mounting base maintains secure electrical contact even in heavy machinery applications or high-vibration processing plants.
FAQs
Q: Does the 5094-MB support hot-swapping of I/O modules?
A: Yes. The FLEX 5000 architecture, supported by the 5094-MB base, allows Removal and Insertion Under Power (RIUP). You can replace modules without cycling power to the rest of the system, minimizing downtime.
Q: What type of DIN rail provides the best mechanical grounding for this unit?
A: Use a zinc-plated, chromate-passivated steel DIN rail. This ensures optimal electromagnetic compatibility (EMC) and provides a low-impedance path to ground, which is critical for the 5094-MB’s performance in electrically noisy environments.
Q: Is this product shipped in original factory packaging?
A: We supply the 5094-MB as 100% Brand New in its original Allen Bradley factory sealed packaging, complete with all original documentation and labels.
